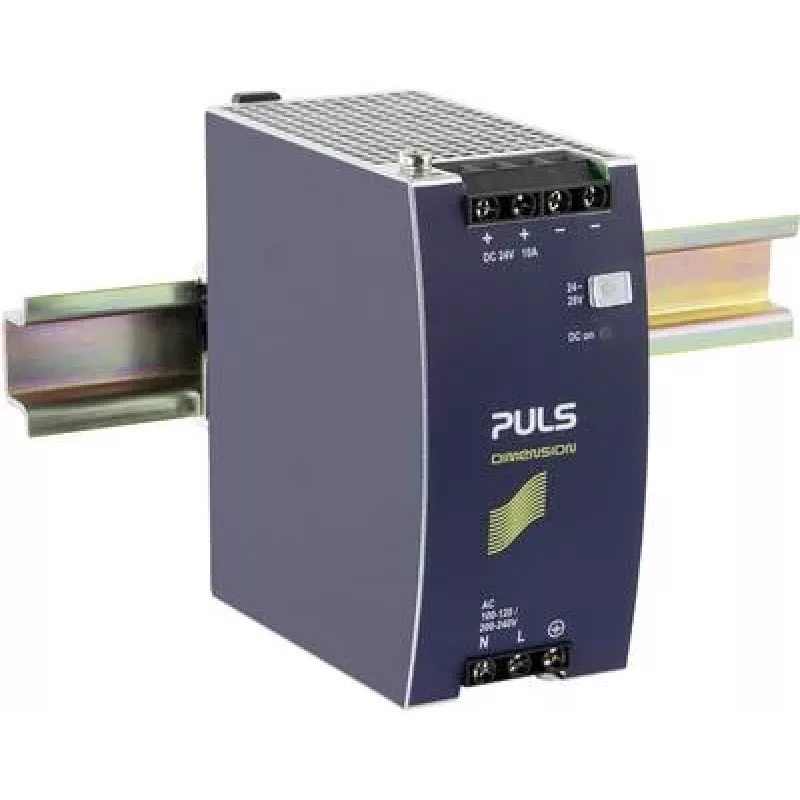

PULS DIMENSION CS10.241 DIN-rail voeding 24V DC 10A 240W

The PULS DIMENSION CS10.241 is a DIN rail power supply unit delivering 24 V DC with a maximum current of 10 A and a power output of 240 W. Its active power factor correction and high efficiency of 90.5% at full load make it suitable for demanding industrial applications.

Advantages

This power supply operates across a wide input voltage range of 100-240 V AC or 90-300 V DC, ensuring compatibility with various mains systems. Convection cooling eliminates the need for fans, reducing maintenance and noise. The metal housing provides durability in harsh environments.

Suitable for

• Industrial automation systems
• Control cabinets and machinery
• Building technology
• Process control equipment

Key specifications

• Output: 24 V DC, 10 A, 240 W
• Input: 100-240 V AC (85-264 V AC operating), 90-300 V DC
• Efficiency: 90.5% at 230 V AC, full load
• Ripple and noise: <50 mVpp
• Hold-up time: >20 ms at 230 V AC, full load
• Operating temperature: -25 to +70 °C (derating above +60 °C)
• Protection: overload, short-circuit, overvoltage, overtemperature
• Connection: screw terminals
• Mounting: DIN rail
• Cooling: convection
• MTBF: >500,000 hours (SN 29500 at 40 °C)

Recommendations

For reliable 24 V DC power in industrial environments, the PULS DIMENSION CS10.241 offers high efficiency, robust protection, and a compact design. Its wide input range and active PFC make it a versatile choice for global applications.
