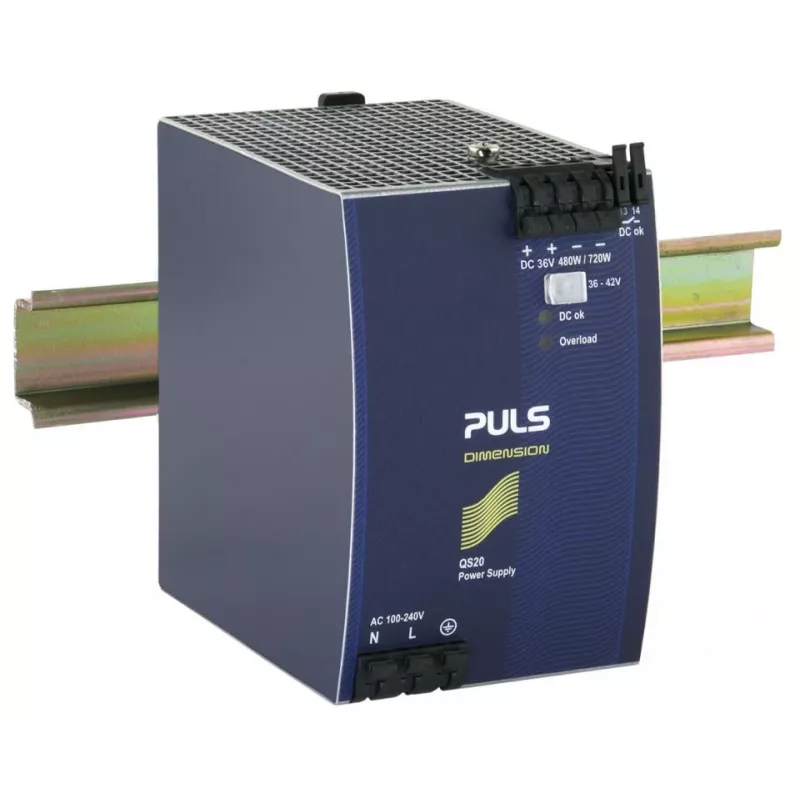

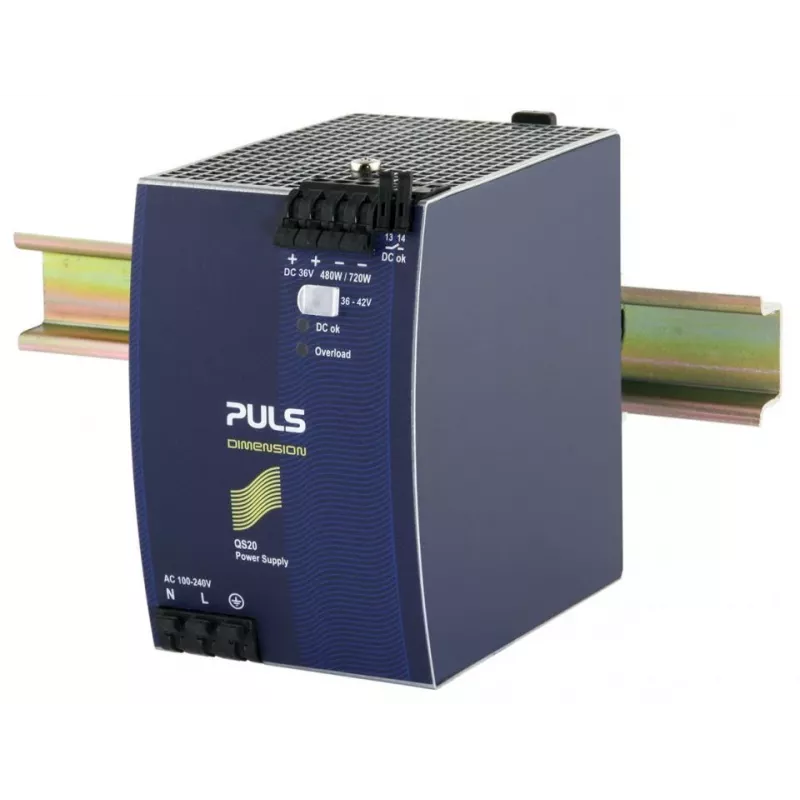

PULS DIMENSION QS20.361 DIN-rail voeding 36 V/DC 13 A 480 W

Industrial control panels and machine builders rely on the PULS DIMENSION QS20.361 to deliver stable 36 VDC power to high-current loads. This DIN-rail power supply provides 480 W output with active power factor correction and convection cooling, making it suitable for automation systems, robotics, and process control equipment.

Key specifications

• Output: 36 VDC, 13 A, 480 W
• Input: 100-240 VAC auto-ranging, 110-150 VDC
• Efficiency: >94%
• Mounting: DIN-rail TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Protection: overload, short-circuit, overvoltage, overtemperature
• Cooling: convection
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms at 230 VAC full load
• Power factor: >0.99 active PFC
• Connection: screw terminals
• Housing: aluminium
• MTBF: >800,000 hours at 40°C

Why choose it

The QS20.361 combines high efficiency with a wide operating temperature range, reducing energy costs and ensuring reliable operation in demanding environments. Its convection cooling eliminates fan noise and maintenance, while active PFC meets stringent power quality requirements.

Ideal use cases

• Industrial automation and PLC systems
• Robotic workcells and motion control
• Process instrumentation and sensors
• Building automation and HVAC controls

Good to know

The unit is certified to UL 508, UL 60950-1, IEC 60950-1, SEMI F47, and CE, and is designed for DIN-rail mounting in control cabinets.
