PULS UZB12.051 vervangende batterij 12V/5Ah

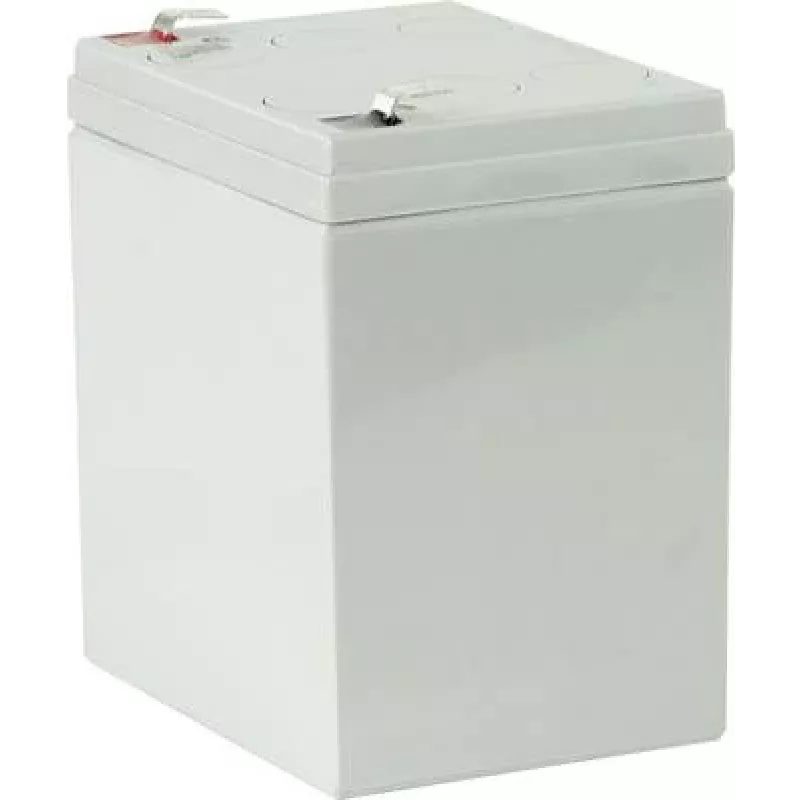

This PULS UZB12.051 is a 12V 5Ah valve-regulated lead-acid (VRLA) battery with absorbent glass mat (AGM) technology, engineered as a reliable replacement energy source for compatible buffer modules. Its maintenance-free, spill-proof construction ensures safe operation in various orientations and simplifies handling.

Advantages

The AGM design immobilizes the electrolyte, allowing the battery to deliver consistent performance without periodic watering. It offers a long service life of 3-5 years under standard commercial use and can be stored for extended periods with minimal self-discharge (less than 3% per month at 25°C). The sealed, non-hazardous construction facilitates transport and installation.

Suitable for

• PULS buffer modules such as UB10.241 and UB20.241
• Uninterruptible power supply (UPS) systems requiring 12V backup
• Industrial automation and control applications
• Security and alarm systems

Key specifications

• Nominal voltage: 12 V
• Nominal capacity: 5 Ah
• Energy content: 60 Wh
• Battery chemistry: AGM (Absorbent Glass Mat)
• Terminal type: F1 (Faston 187)
• Float charging voltage: 13.5V - 13.8V (at 25°C)
• Cycle use voltage: 14.4V - 15.0V (at 25°C)
• Max. discharge current: 75 A (5 sec)
• Recommended max. charging current: 1.5 A
• Operating temperature (discharge): -15°C to +50°C
• Operating temperature (charge): -15°C to +40°C
• Storage temperature: -15°C to +40°C
• Internal resistance: approx. 35 mΩ (fully charged, 25°C)
• Self-discharge rate: less than 3% per month (at 25°C)
• Maintenance: maintenance-free
• Construction: spill-proof, sealed, non-hazardous for transport

Recommendations

For optimal service life, charge the battery within the recommended voltage limits and avoid deep discharges. Store in a cool, dry place when not in use.
