Rack-behuizing Lanberg SC01-6501-12B 1U zwart 8 ventilatoren HDD SSD

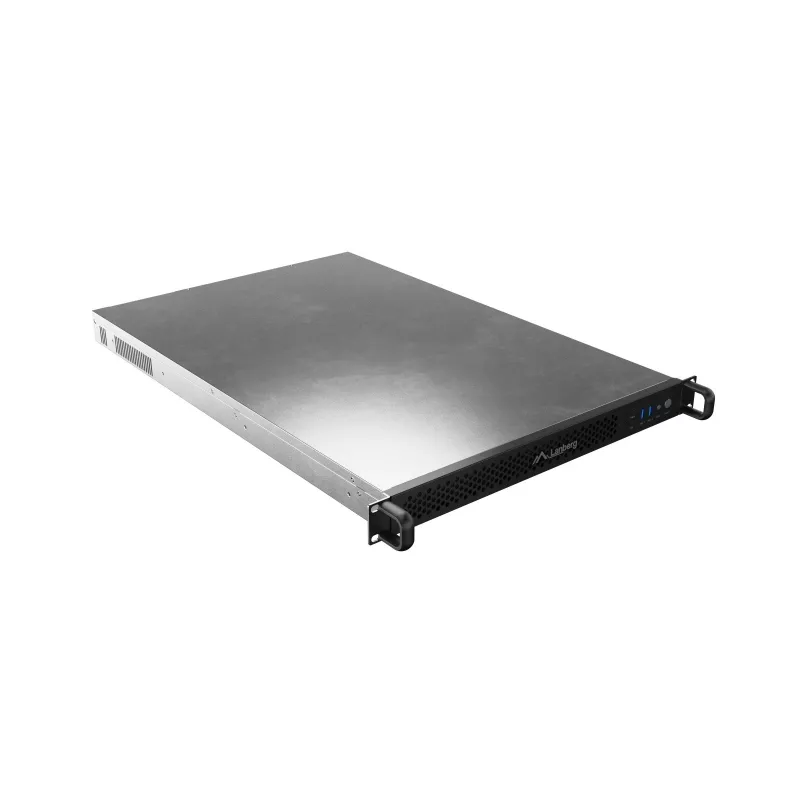

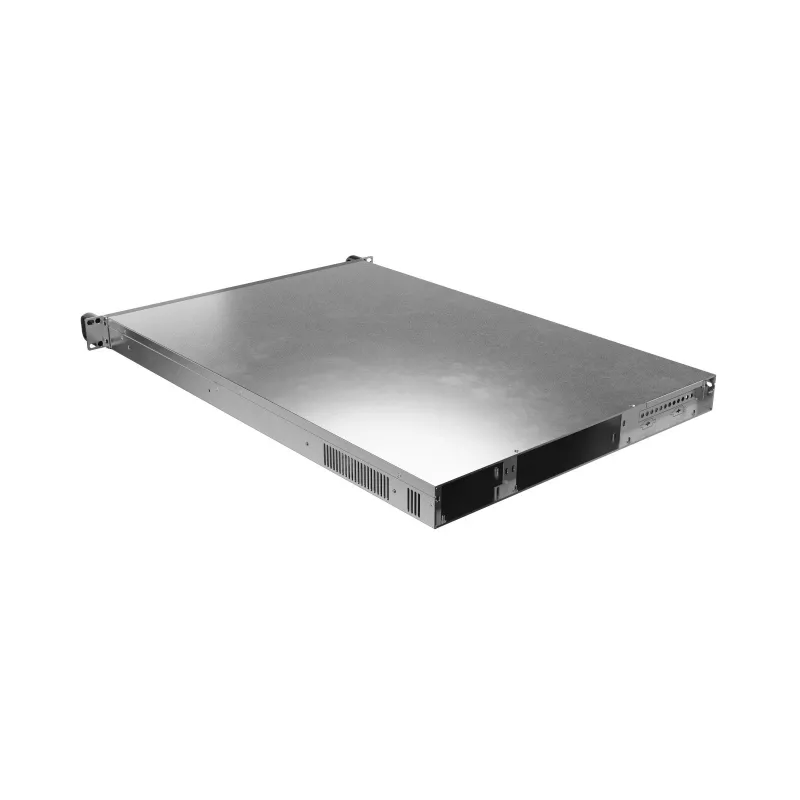

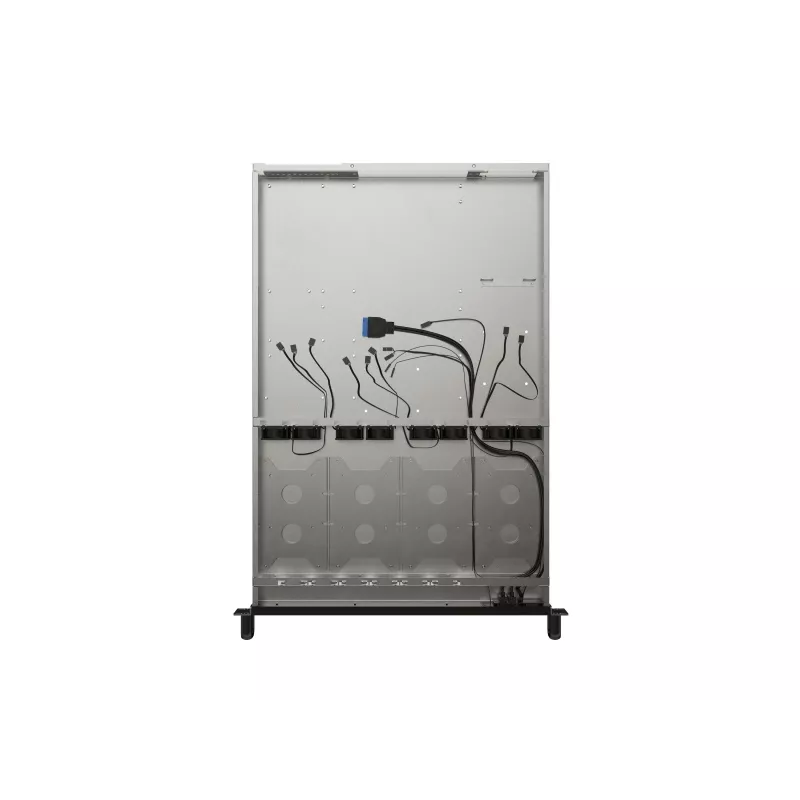

Data centers and server rooms demand compact, reliable enclosures that maximize space without sacrificing cooling or expandability. The Lanberg SC01-6501-12B answers that call with a 1U rackmount chassis built for dense computing environments. Its 1.2 mm galvanized steel frame withstands the rigors of continuous operation, while support for E-ATX, ATX, Micro-ATX, Mini-ITX, SSI CEB, and SSI EEB motherboards ensures compatibility with a wide range of server boards.

Who is it for

This chassis is ideal for IT administrators deploying compact servers in data centers, office server rooms, home NAS builders, and semi-professional workshops. It suits virtualization hosts, storage servers, and network appliances where rack space is at a premium.

Main features

• 1U form factor fits standard 19-inch racks, saving vertical space.

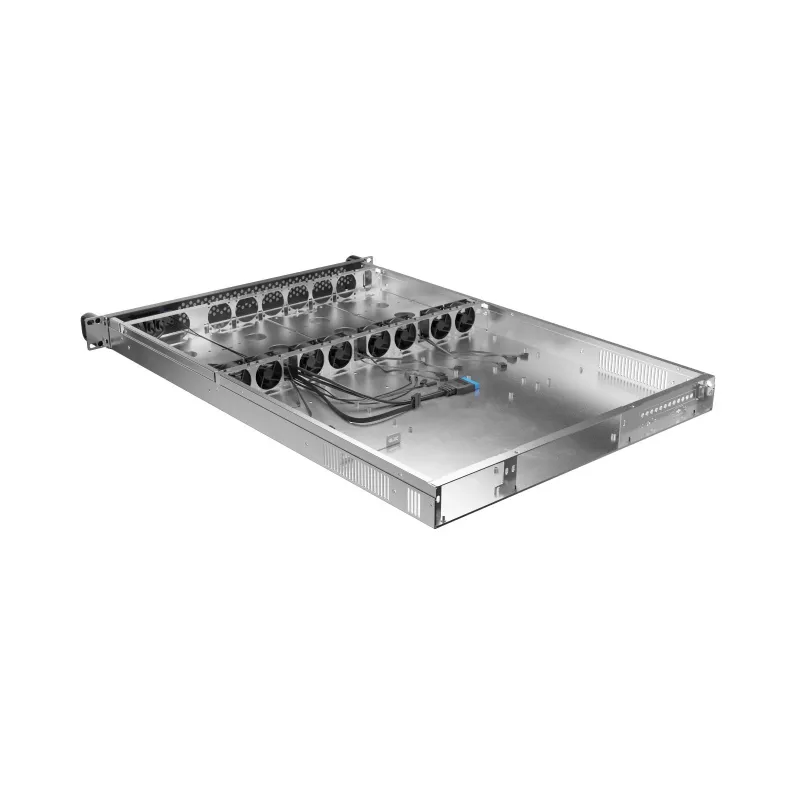

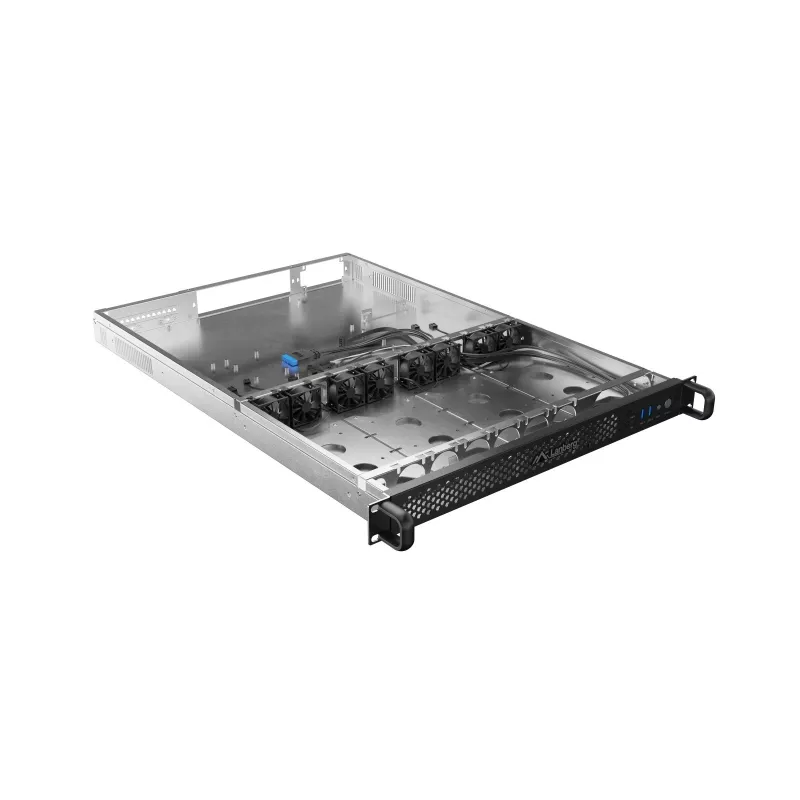

• Eight 40 mm PWM fans included for high airflow; supports two additional rear fans.

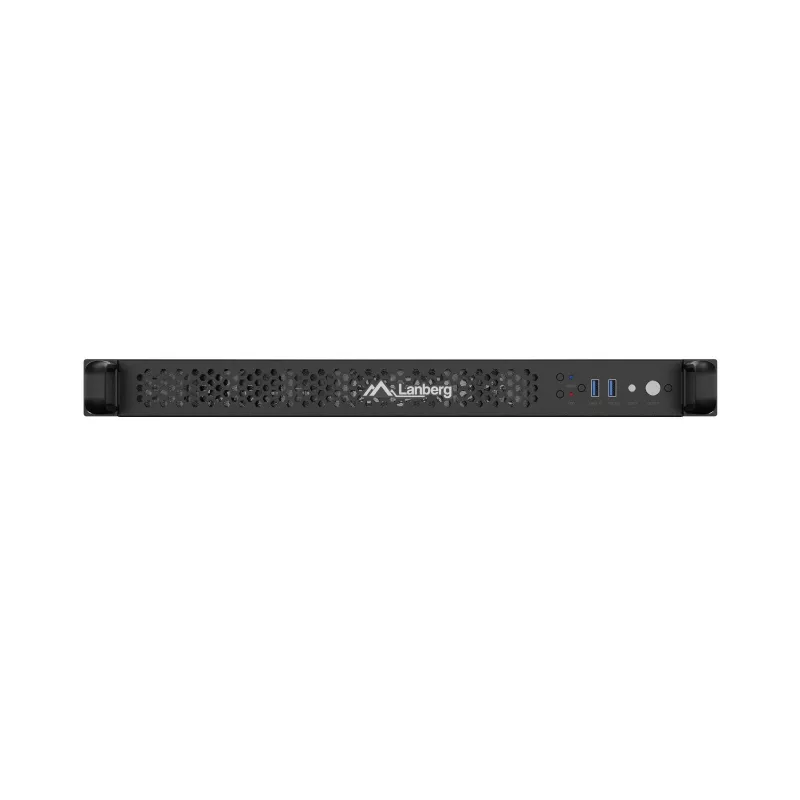

• Front I/O with two USB 3.0 Type-A ports, power and reset buttons for easy access.
• Supports up to four drive bays in base configuration; up to six with short FLEX PSU or smaller motherboards.
• Robust 1.2 mm galvanized steel construction for durability.
• Supports multiple motherboard form factors: E-ATX, ATX, Micro-ATX, Mini-ITX, SSI CEB, SSI EEB.
• Adjustable fan speeds via PWM for optimal cooling and noise balance.

Specifications

• Model: Lanberg SC01-6501-12B
• Form factor: 1U rackmount
• Supported motherboards: E-ATX, ATX, Micro-ATX, Mini-ITX, SSI CEB, SSI EEB

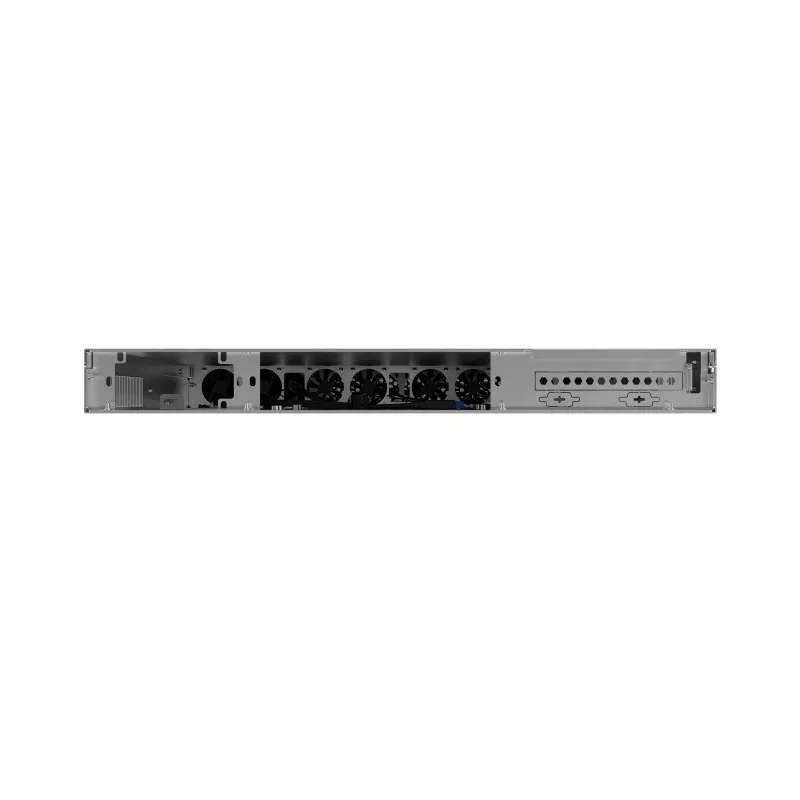

• Cooling: 8 × 40 mm PWM fans (option to add 2 rear fans)
• Drive bays: 4 standard (up to 6 with FLEX PSU or smaller boards)
• Front I/O: 2 × USB 3.0 Type-A, Power button, Reset button
• Material: 1.2 mm galvanized steel
• Rack compatibility: 19-inch standard
• Power supply: Not included (supports 1U Flex ATX)
• Expansion slots: 1 low-profile (riser card required, not included)
• LED indicators: Power, HDD

Tips

Pair this chassis with a high-efficiency 1U Flex ATX power supply to maximize internal space for drives. Use the additional rear fan mounts if deploying high-TDP processors or dense storage configurations. Ensure proper rack airflow management to complement the chassis's front-to-back cooling design.
