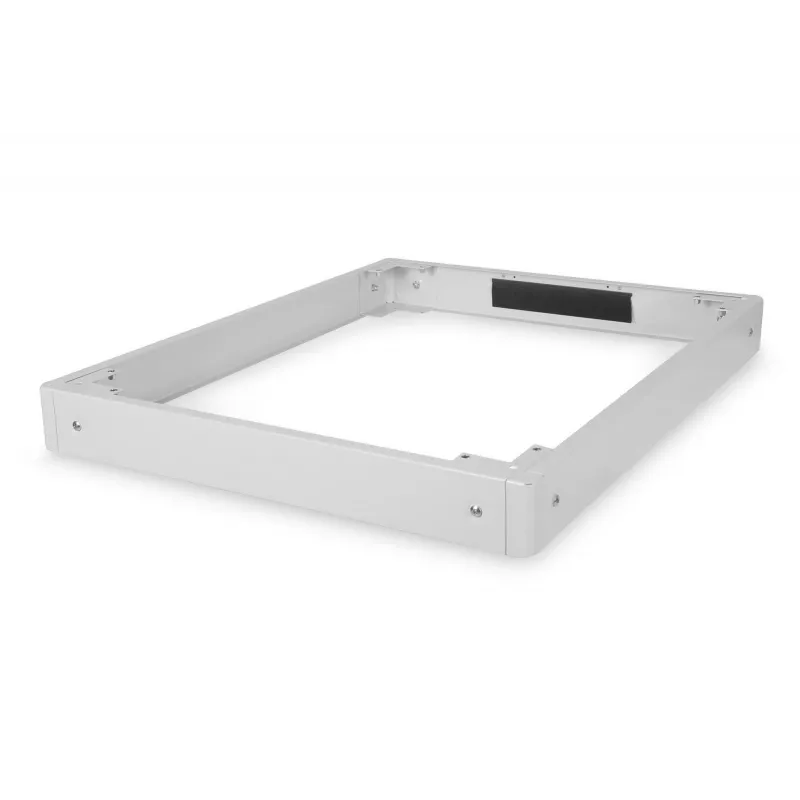

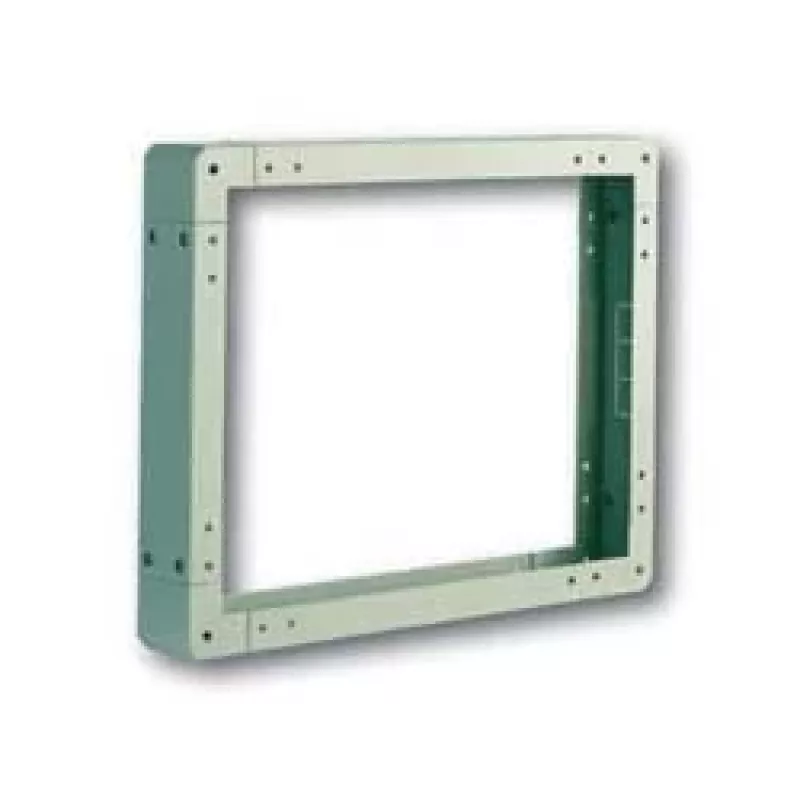

Rack sokkel Digitus DN-19 PLINTH-8/10-N1

The DIGITUS® 483 mm (19") rack plinth DN-19 PLINTH-8/10-N1 is designed to extend the height of compatible Varioflex‑N, Unique and Dynamic Basic series cabinets. Manufactured to German quality standards from robust steel with a grey finish, the plinth increases ground clearance and provides space for storing excess cable lengths while supporting the cabinet structure. Supplied unassembled for simplified logistics.

Advantages

The plinth increases ground clearance by 100 mm and up to two units can be stacked to reach 200 mm. A brush strip cable feed-through supports simple cable management and the steel construction delivers stable support for network enclosures. Delivery in unassembled condition reduces transport volume and simplifies handling.

Suitable for

• Varioflex‑N series 483 mm (19") cabinets
• Unique series 483 mm (19") cabinets
• Dynamic Basic series 483 mm (19") cabinets
• Environments where additional ground clearance or internal cable storage is required

Key specifications

• Model: DN-19 PLINTH-8/10-N1
• Compatible width: 483 mm (19")
• Dimensions (footprint): 800 x 1000 mm (as specified in product data)
• Height increase: 100 mm per plinth (stackable up to 200 mm)
• Material: steel
• Finish: grey
• Delivery state: unassembled
• Manufacturer: DIGITUS®
• MPN: DN-19 PLINTH-8/10-N1
• EAN: 4016032335344

How to use

Place the plinth under a compatible 483 mm (19") cabinet and fasten according to the cabinet manufacturer's instructions. If greater height is required, mount a second plinth on top of the first to achieve a total increase of 200 mm. Route excess cables through the brush strip feed-through into the plinth interior for storage and to maintain tidy cable runs. Follow standard safety practices when lifting and assembling steel components.

Recommendations

Use the plinth only with compatible DIGITUS® Varioflex‑N, Unique or Dynamic Basic cabinets and follow the cabinet assembly manual for correct mounting and load limits. Check that floor anchoring and load distribution meet site requirements before installing heavy equipment.
