Rack-vacuümschakelaar-componentadapter Rittal 9345.610, voor 690V-installaties, RAL 7035

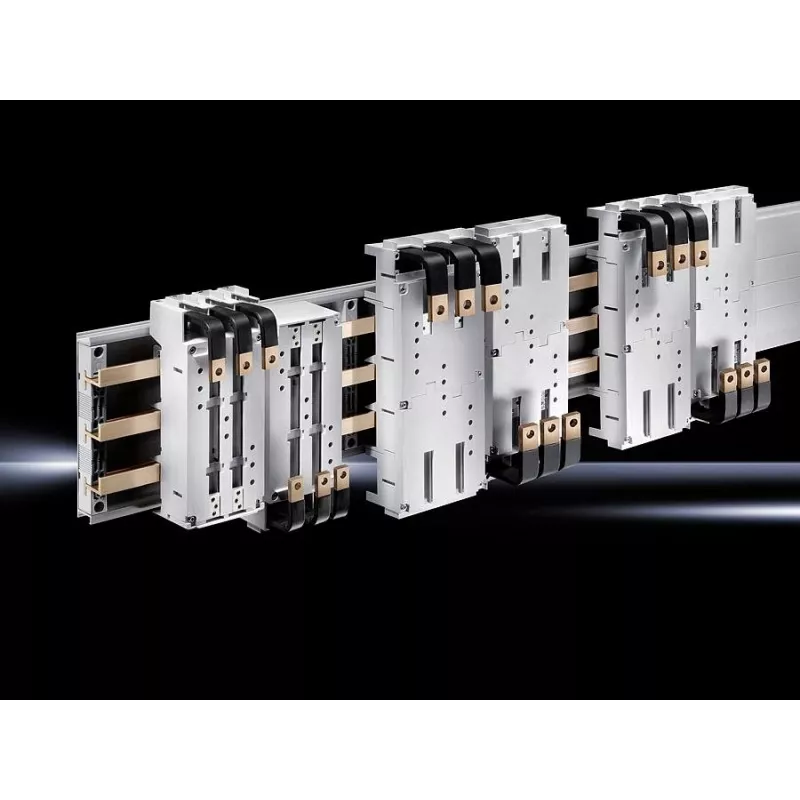

Component adapter Rittal 9345.610 for rack-mounted vacuum switch installations, designed for use in 690 V electrical systems and finished in RAL 7035. This adapter provides a mechanical mounting interface and electrical connection support for vacuum circuit breaker units within server racks, control cabinets and industrial switchgear. It is intended for assembly and retrofit operations where a standardized mounting solution and secure positioning of the vacuum switch are required.

Advantages

The adapter offers a precise mechanical fit for rack-mounted vacuum switch units, reducing installation time and ensuring stable alignment. Constructed to match common switchgear mounting requirements, it simplifies integration by providing defined mounting points and consistent clearance for electrical connections. The RAL 7035 finish provides a neutral appearance and corrosion-resistant coating suitable for indoor electrical enclosures.

Suitable for

Key specifications

How to use

Install the adapter on the designated rack or mounting plane following the enclosure and switchgear manufacturer's installation guidelines. Align the vacuum switch unit with the adapter's mounting points, secure fasteners to achieve stable mechanical fixation, and complete the electrical connections according to applicable wiring diagrams and safety standards. Verify clearances and accessibility for operation and maintenance before energizing the system.

Recommendations

Ensure that installation and electrical connections are performed by qualified personnel and that all work complies with local regulations and applicable standards for 690 V systems. Inspect mounting hardware for correct torque and confirm that the adapter provides the necessary clearances for insulation and cooling. Perform functional checks after installation and before returning the equipment to service.
