Rackkast Lanview RDL12U61BL 12U zwart 600 kg IP20

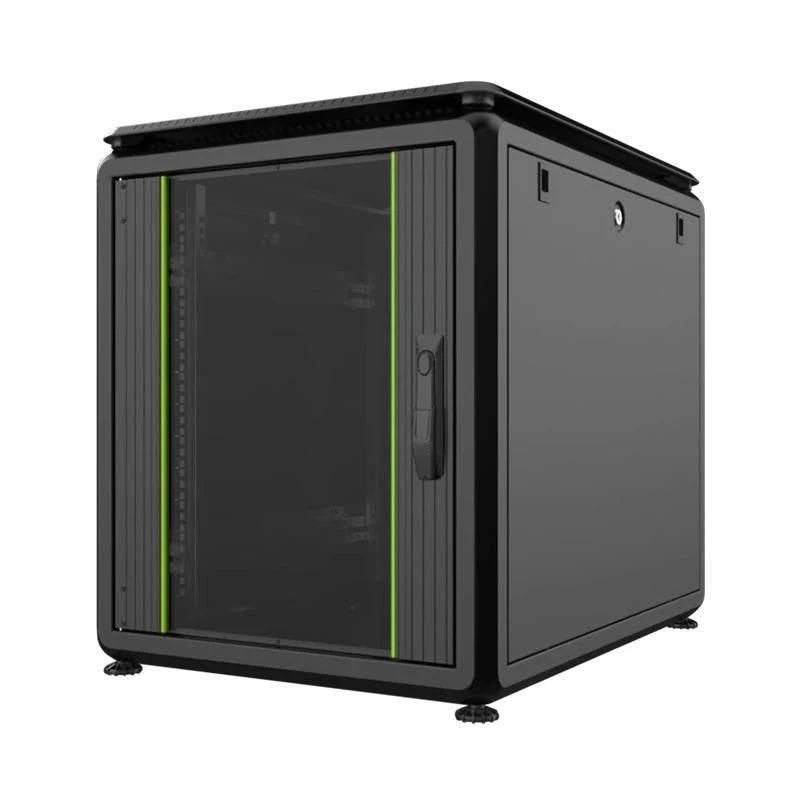

The Lanview RDL12U61BL is a free-standing 12U rack cabinet designed for indoor network and server equipment storage. With external dimensions W:600 x D:1000 x H:719 mm, a maximum load capacity of 600 kg and an IP20 rating, this black cabinet provides a robust, easy-to-assemble solution for offices, server rooms and cabling installations. The cabinet features adjustable installation rails, a wide range of compatible accessories and a flatpack shipping option that reduces storage and transport volume.

Advantages

The cabinet combines a strong metal construction with a user-friendly assembly process requiring only simple tools. Adjustable depth rails and structurally integrated provisions for vertical cable managers simplify cable routing. A wide bottom cable entry with a rubber-edged sliding module protects cables and helps maintain dust-resistant conditions. Removable side panels, split front glass doors and a detachable rear metal door improve accessibility during installation and maintenance.

Suitable for (tasks / use cases)

• Small to medium office network racks and server installations
• Patch panels, switches and 19" rack-mount equipment up to 12U
• Cabling management and structured cable routing in telecommunication rooms
• Indoor IT closets and equipment storage where IP20 protection is appropriate

Key specifications

• Rack capacity: 12U
• Dimensions (W x D x H): 600 x 1000 x 719 mm
• Maximum load: 600 kg
• IP rating: IP20
• Weight: 44.5 kg
• Colour: Black
• Suitable for 19" equipment

How to use

Place the cabinet on a level indoor surface and assemble using the supplied parts and simple hand tools. Adjust the installation rails to match the depth of your 19" equipment, secure rails and mount devices up to the 12U capacity. Route cables through the bottom cable entry and the integrated slots for vertical cable managers. Close and lock the front glass door and side panels for secure access control; the rear door can be removed for relocation or maintenance.

Recommendations

Install the cabinet in a dry, ventilated indoor environment consistent with its IP20 rating. Distribute equipment weight evenly and ensure the cabinet is anchored or stabilized if heavy loads or seismic conditions apply. Use the rubber-edged cable entry and tire-up side brackets to protect and fix cable bundles; follow manufacturer torque and mounting guidelines for rack equipment.
