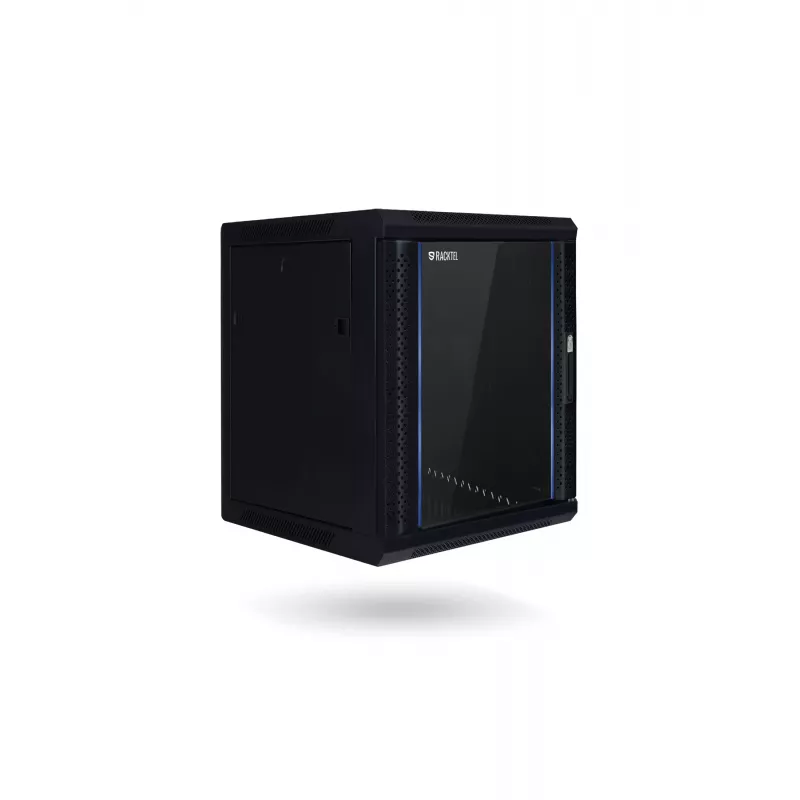

RACKTEL RL-4515WR 15U 600x450 wandmontage-serverkast, ongemonteerd, zwart

The RACKTEL RL-4515WR is a 15U wall-mount server cabinet designed for secure and organized installation of 19-inch network equipment. With a compact 600x450 mm footprint and a robust SPCC cold rolled steel construction, this cabinet is ideal for small to medium-sized IT environments where space is at a premium. The unassembled (flat-pack) design allows for easy transportation and flexible on-site assembly, while the tempered glass front door with lock provides both visibility and security.

Advantages

Space-saving wall-mount design frees up floor space; durable SPCC steel with powder coating ensures long-lasting protection; adjustable mounting rails accommodate various equipment depths; lockable front door and side panels prevent unauthorized access; cable entry points with brush strips maintain a clean and organized cabling system.

Suitable for

• Network switches, patch panels, and routers
• Small server installations in offices, schools, or retail environments
• AV equipment and telecommunications hardware
• Any 19-inch rack-mountable device requiring wall-mounted deployment

Key specifications

• Rack Units: 15U
• Mounting Type: Wall-Mount
• External Dimensions (WxDxH): 600 x 450 x 740 mm
• Internal Rack Width: 19-inch (482.6 mm)
• Material: SPCC Cold Rolled Steel
• Front Door: Tempered Glass with Lock
• Side Panels: Removable, Lockable
• Rear Panel: Solid
• Cable Entry: Top and Bottom with brush strips
• Ventilation: Passive, perforated top/bottom for fan unit installation
• Static Load Capacity: 60 kg
• Protection Rating: IP20
• Finish: Powder Coated, Black (RAL 9005)
• Adjustable Mounting Rails: Front and rear
• Standard Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Included Accessories: Mounting hardware, cage nuts, keys

Recommendations

For optimal performance, ensure the wall surface can support the cabinet's full load. Use appropriate anchors and bolts (not included) for secure installation. The cabinet is designed for indoor use only.
