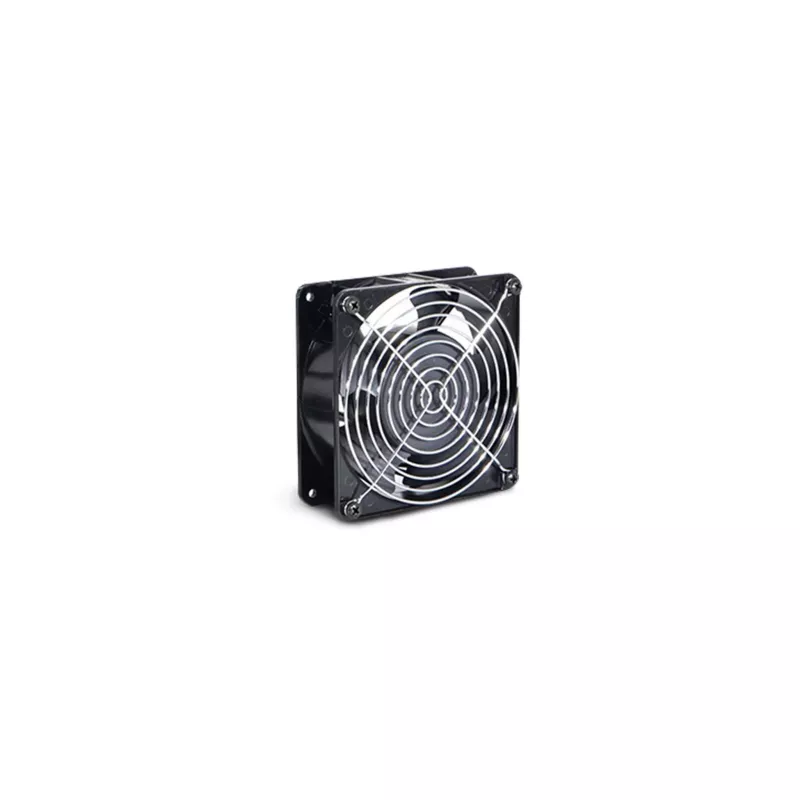

RACKTEL RL-WE1 rackventilator 120mm 230V AC 165m³/h zwart

The RACKTEL RL-WE1 is a high-performance axial fan designed for effective cooling of 19-inch rack cabinets. With a robust metal frame and plastic blades, this fan delivers reliable airflow of 165 m³/h at a noise level of only 45 dB, making it ideal for maintaining optimal operating temperatures in server rooms and network closets.

Advantages

Efficient cooling with low noise; durable ball bearing for long life; easy installation in standard 19-inch racks; energy-efficient 22W power consumption.

Suitable for

• Cooling 19-inch rack cabinets and enclosures
• Server rooms, network cabinets, and IT equipment
• Industrial and commercial applications requiring reliable ventilation

Key specifications

• Fan Type: Axial Fan
• Dimensions: 120 x 120 x 38 mm
• Power Supply: 230V AC, 50 Hz
• Power Consumption: 22 W
• Airflow: 165 m³/h
• Noise Level: 45 dB
• Rotational Speed: 2700 RPM
• Bearing Type: Ball Bearing
• Frame Material: Metal
• Blade Material: Plastic
• Connector: Power cord with Europlug (Type C/E/F), 1.5 m
• Operating Temperature: -10°C to +70°C
• Colour: Black

Recommendations

For optimal cooling, install the fan in a cutout on the rack door or side panel. Ensure proper airflow direction and consider using multiple fans for larger cabinets.
