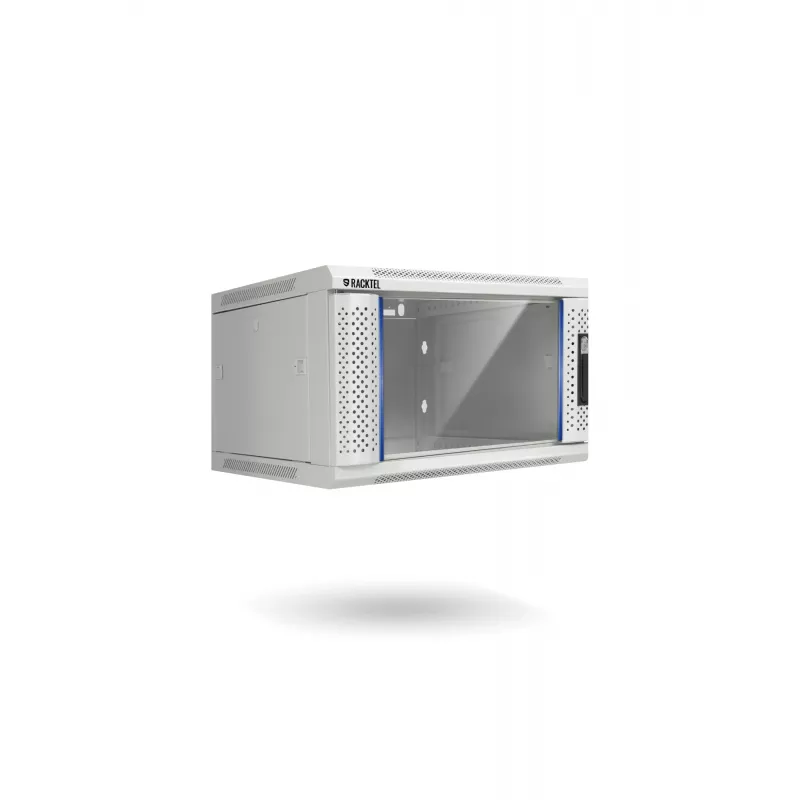

RACKTEL RL-6606WR-G 6U wandmontage netwerkkast 600x600mm flat-pack grijs

The RACKTEL RL-6606WR-G is a 6U wall-mount network cabinet designed for secure and organized installation of 19-inch rack equipment. With a compact 600x600mm footprint and flat-pack construction, it offers flexibility for small to medium network setups in offices, server rooms, or industrial environments.

Advantages

Space-saving wall-mount design frees up floor space. Tempered glass front door with lock provides security and visibility. Removable lockable side panels allow easy access for cable management. Fan-ready top panel supports passive or active ventilation. Flat-pack assembly reduces shipping volume and allows on-site customization.

Suitable for

• Network switches, patch panels, and small servers
• Telecommunication and IT equipment installations
• Retail, education, and commercial environments

Key specifications

• Rack Units: 6U
• External dimensions (WxDxH): 600 x 600 x 370 mm
• Usable depth: ~550 mm
• Material: SPCC cold rolled steel
• Color: Grey (RAL 7035)
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Cable entry: Top and bottom
• Ventilation: Passive, fan-ready top panel
• Static load capacity: 60 kg
• Protection rating: IP20
• Mounting type: Wall-mount
• Construction: Flat-pack (self-assembly)

Recommendations

Ideal for organizing network equipment in space-constrained areas. Ensure wall mounting surface can support the loaded cabinet weight. Use appropriate screws and anchors (not included).
