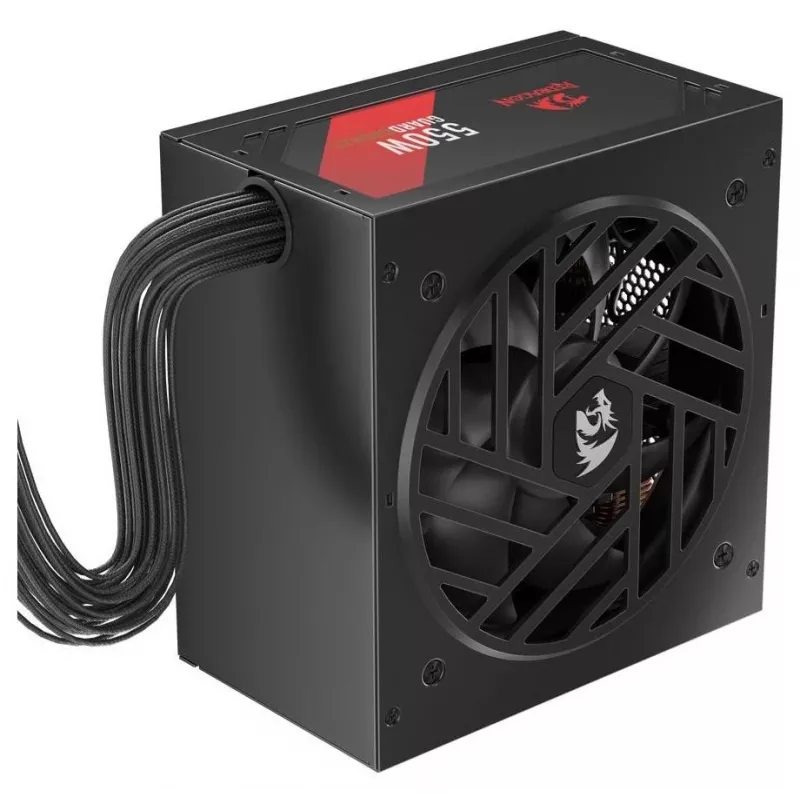

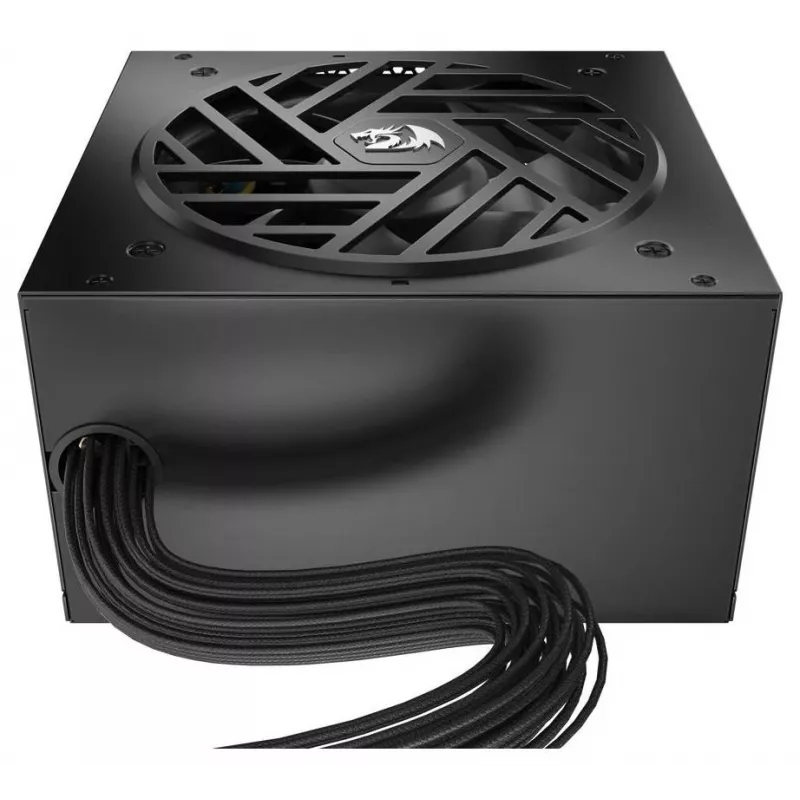

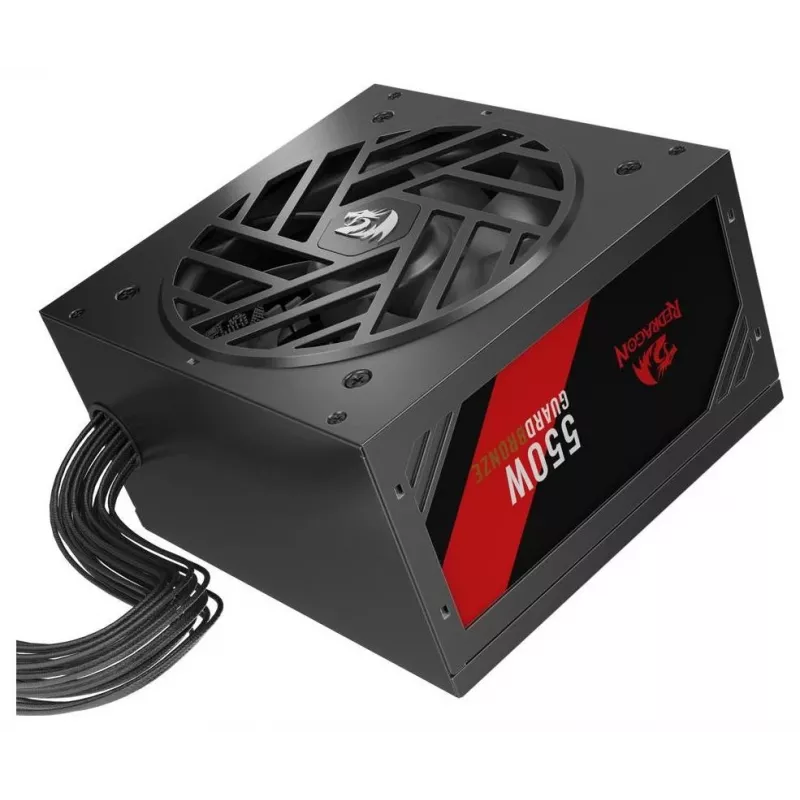

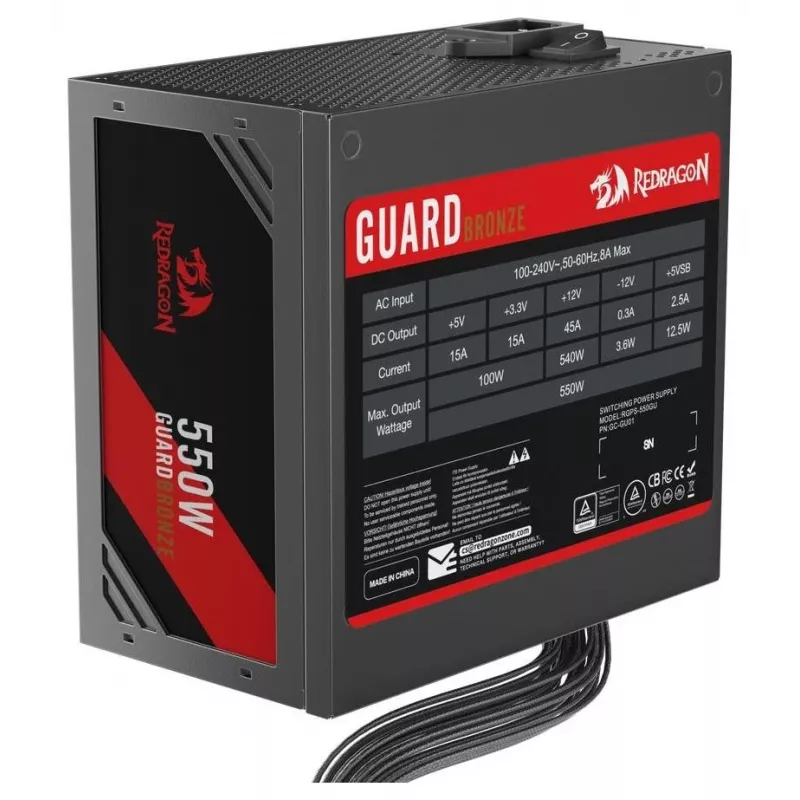

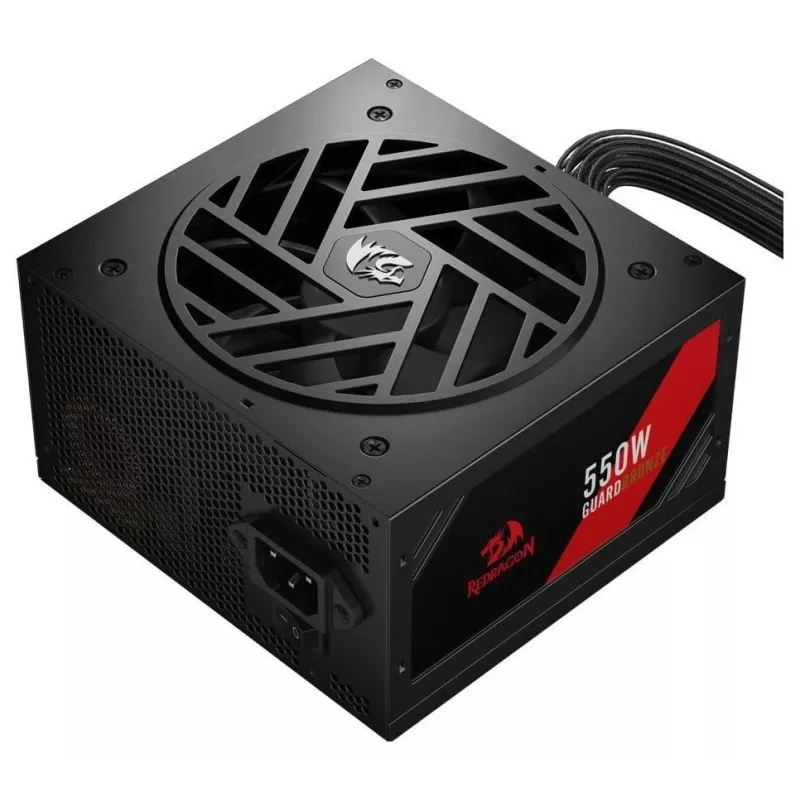

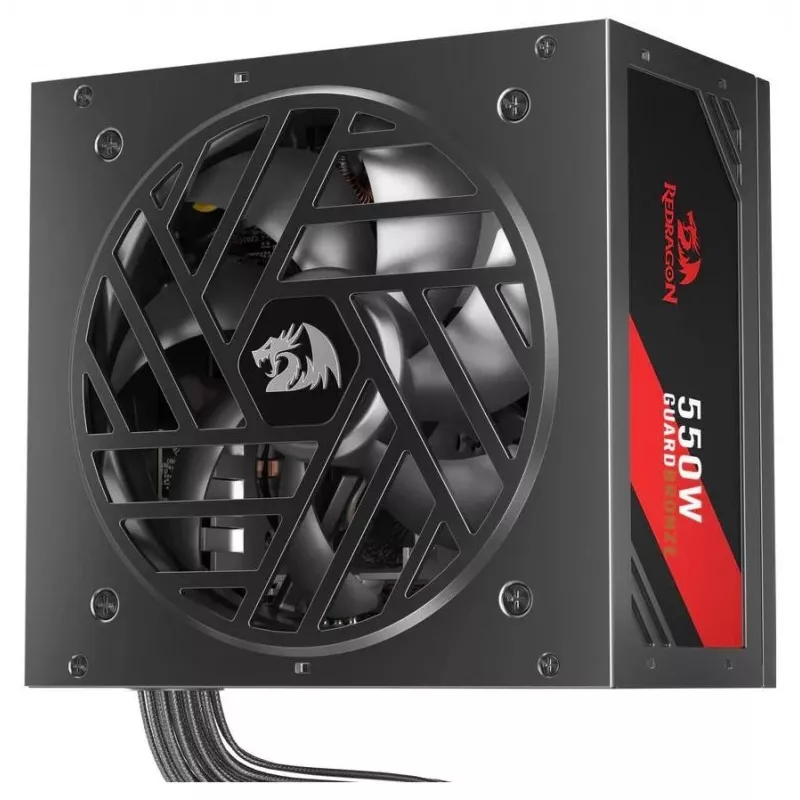

Redragon Guard GC-GU01 550W voeding, 80 PLUS Standard, active PFC, niet-modulair, 120mm ventilator, zwart

The Redragon Guard GC-GU01 is a reliable 550W power supply unit designed for stable and efficient performance in desktop computers. With 80 PLUS Standard efficiency, Active PFC, and a silent 120mm hydraulic bearing fan, it delivers clean power while keeping noise levels low. The non-modular design with black flat cables simplifies installation in standard ATX cases.

Advantages

Stable 550W output with Active PFC ensures efficient power conversion and reduced electricity waste. The 120mm silent hydraulic bearing fan provides excellent cooling with minimal noise. Multiple protection features (OVP, OPP, SCP, UVP) safeguard your components. Black flat cables make cable management easier and improve airflow.

Suitable for

• Budget to mid-range gaming PCs
• Office and home desktop builds
• Systems requiring reliable 550W power delivery
• Users preferring non-modular PSUs with fixed cables

Key specifications

• Power Output: 550W
• Efficiency: 80 PLUS Standard (White equivalent)
• Form Factor: ATX
• PFC Type: Active PFC
• Modular: Non-Modular

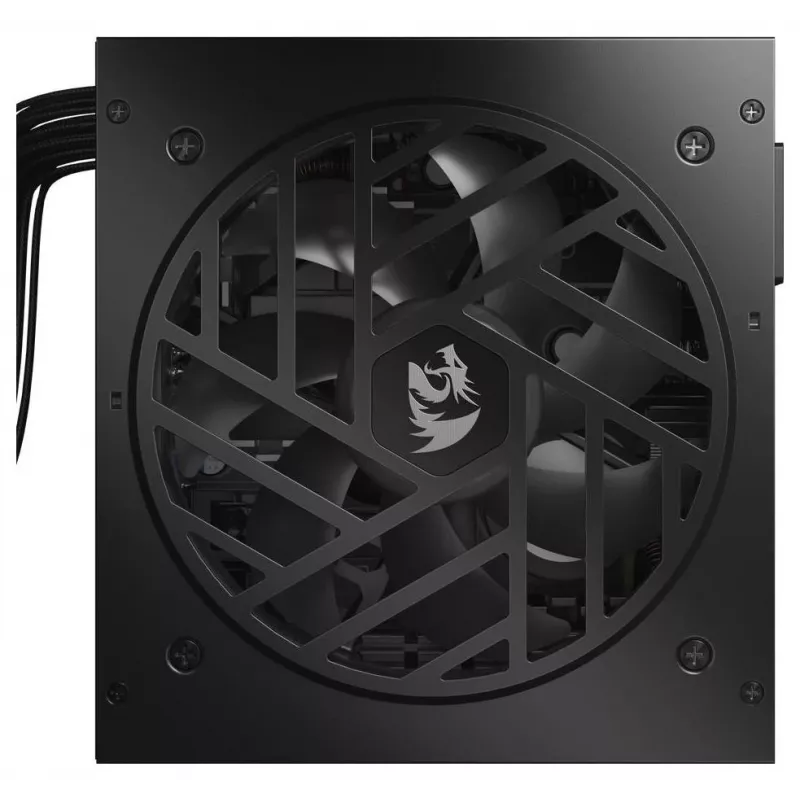

• Fan: 120mm Silent Hydraulic Bearing
• Main Connector: 1x 20+4 Pin ATX
• CPU Connector: 1x 4+4 Pin EPS
• PCI-e Connector: 1x 6+2 Pin
• SATA Connectors: 4x SATA
• Molex Connectors: 2x Molex
• Input Voltage: 100-240V AC
• Input Frequency: 50/60Hz
• Protections: OVP, OPP, SCP, UVP
• MTBF: 100,000 hours
• Cable Type: Fixed, Black Flat Cables
• Color: Black

Recommendations

For optimal performance, pair this PSU with a compatible ATX case and ensure proper ventilation. Ideal for builds with moderate power requirements.
