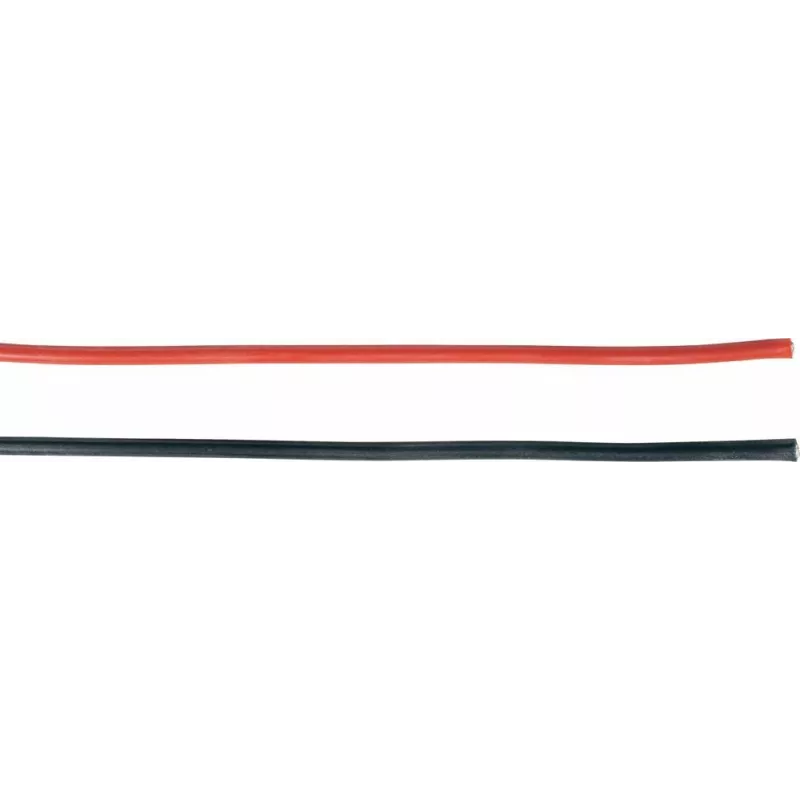

Reely hoogflexibele siliconenkabel 0,5 mm² rood 1 m 1275500

Experience exceptional flexibility and high-temperature resilience with this 1-metre red silicone cable, engineered for demanding RC and robotics applications. With a conductor cross-section of 0.5 mm² (AWG 20) and a tinned copper core composed of 100 fine strands (0.08 mm each), it delivers reliable power and signal transmission even in tight, moving installations.

Overview

The Reely 1275500 is a single-core silicone-insulated wire designed for high-flexibility and high-temperature environments. Its silicone insulation withstands temperatures from -60°C to +200°C, making it suitable for use near motors, batteries, and other heat-generating components. The tinned copper conductor resists corrosion and ensures excellent solderability.

What stands out

• Highly flexible construction with 100 strands of 0.08 mm tinned copper
• Wide operating temperature range: -60°C to +200°C
• Silicone insulation resists heat, cold, and many chemicals
• Rated voltage: 600 V
• Outer diameter: 1.8 mm

Technical details

• Cable type: Silicone wire
• Conductor cross-section: 0.5 mm²
• AWG gauge: 20
• Conductor material: Tinned copper
• Insulation material: Silicone
• Colour: Red
• Rated voltage: 600 V
• Temperature range: -60°C to +200°C
• Outer diameter: 1.8 mm
• Number of strands: 100
• Strand diameter: 0.08 mm
• Length: 1 m
• Conductor resistance: 39.4 Ohm/km

Our verdict

A reliable, high-flex silicone wire that excels in high-temperature and high-vibration environments. Ideal for RC hobbyists and robotics projects requiring durable, flexible connections.
