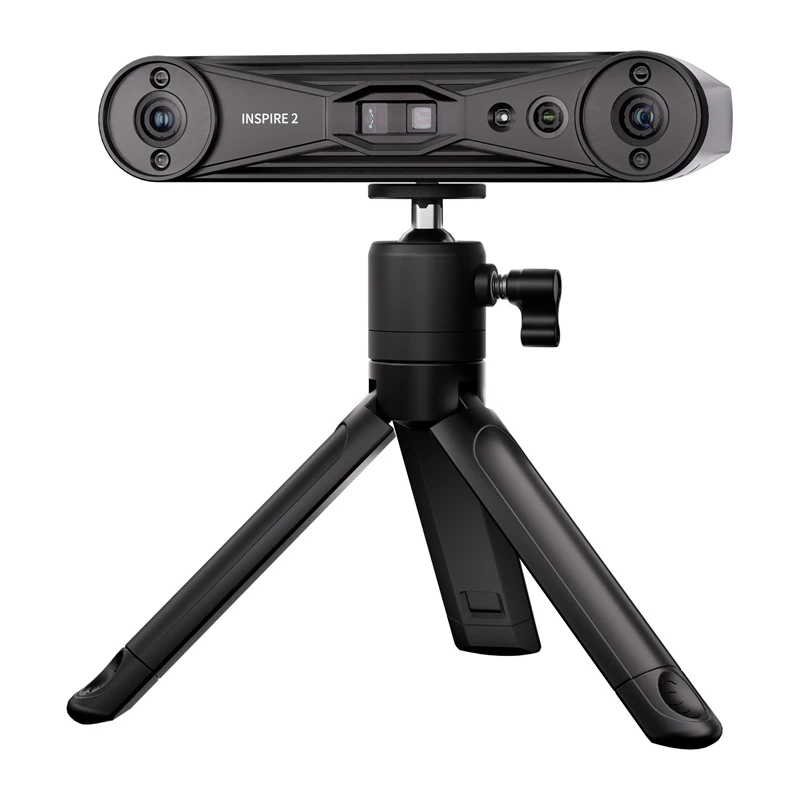

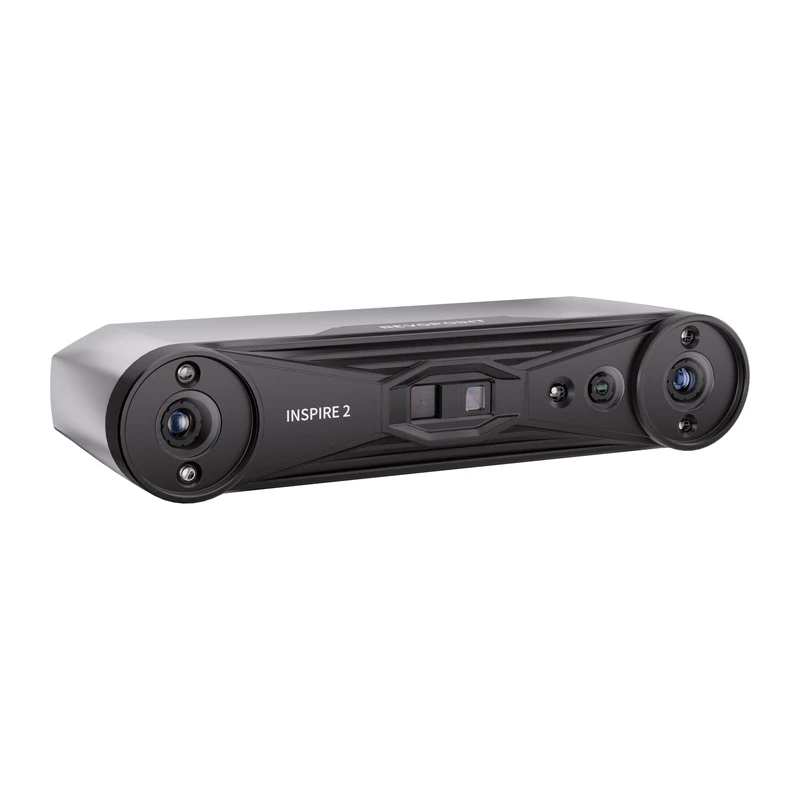

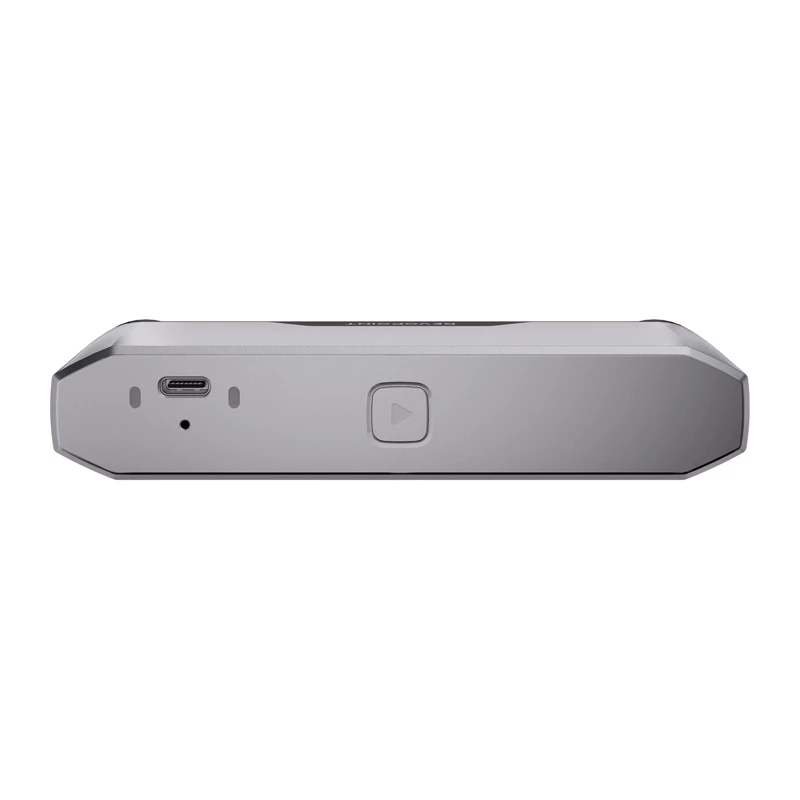

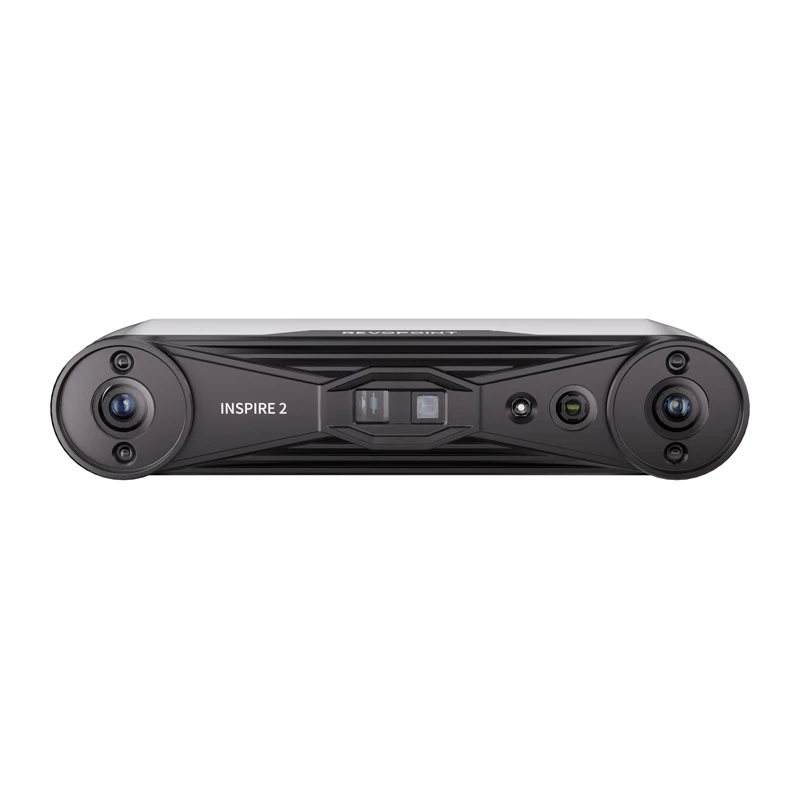

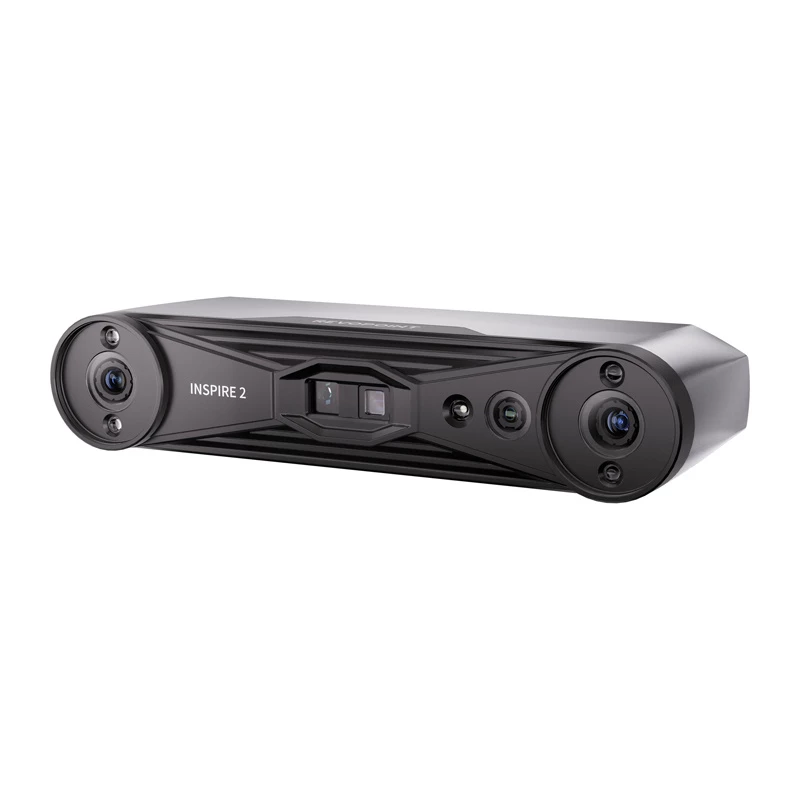

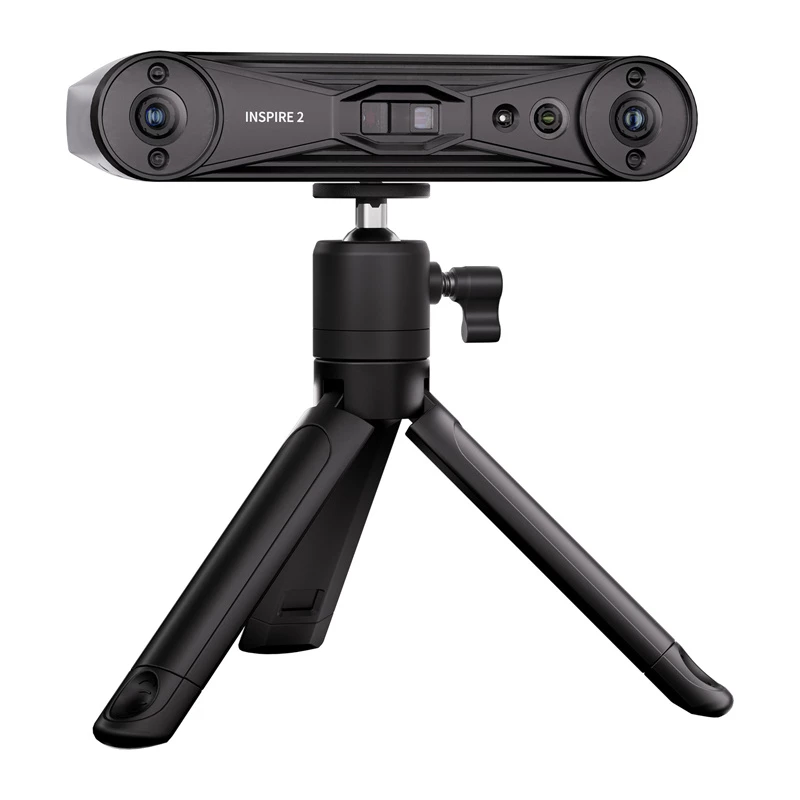

Revopoint Inspire 2 Premium Edition 3D-scanner

The Revopoint Inspire 2 Premium Edition is a compact, handheld 3D scanner that combines dual-camera infrared structured light and multi-line laser technology for versatile scanning. It supports both mobile and stationary modes, making it ideal for scanning objects from 20 mm to 2 m. With single-frame accuracy up to 0.05 mm and precision up to 0.03 mm, it delivers detailed results for reverse engineering, design, and preservation.

Advantages

High accuracy and fast scanning up to 18 fps ensure efficient capture of complex geometries. The dual scanning modes (structured light and laser) provide flexibility for different applications. Wi-Fi 6 connectivity enables wireless operation, and the included Premium Edition accessories (tripod, turntable, carrying case, power bank, quick setup kit, markers, cables) offer a complete out-of-the-box solution.

Suitable for

• Reverse engineering and part design
• Quality control and inspection
• Cultural heritage preservation
• 3D modeling for animation and VR
• Education and research

Key specifications

• Scanning Technology: Dual-camera Infrared Structured Light
• Single-Frame Accuracy: Up to 0.05 mm
• Point Distance (Resolution): 0.05 mm
• Scanning Speed: Up to 18 fps
• Working Distance: 200 mm - 500 mm
• Single Capture Range: 230 mm x 180 mm
• Minimum Scan Volume: 20 mm x 20 mm x 20 mm
• Light Source: Infrared
• Tracking Mode: Feature, Marker, Hybrid
• Color Scanning: Yes, with RGB Camera
• Depth Camera Resolution: 640 x 400
• RGB Camera Resolution: 1920 x 1080
• Output Formats: PLY, OBJ, STL, ASC
• Connectivity: USB Type-C, Wi-Fi 6
• Compatible OS: Windows 10/11 (64-bit), macOS 10.15+, Android 11+, iOS 14+
• Included Software: Revo Scan 5
• Scanner Dimensions: 130 x 45 x 28 mm
• Scanner Weight: 140 g

Recommendations

The Revopoint Inspire 2 Premium Edition is a powerful tool for professionals and hobbyists alike. Its combination of accuracy, speed, and portability makes it a top choice for detailed 3D scanning tasks. The included accessories provide excellent value, allowing you to start scanning immediately.
