Richtantenne Ubiquiti RD-5G30-LW 30 dBi

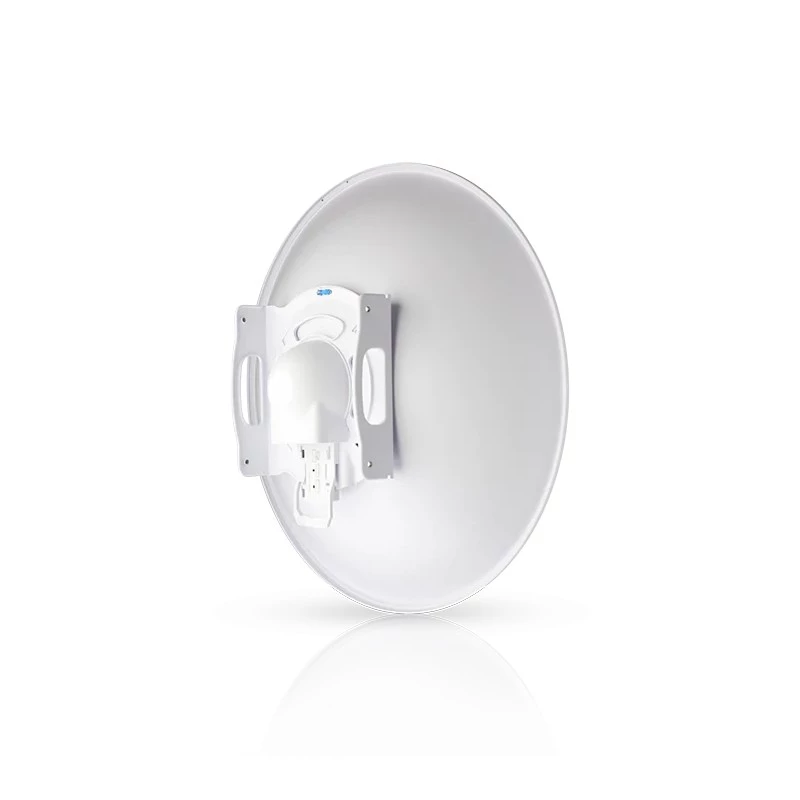

The Ubiquiti RD-5G30-LW is a directional antenna with 30 dBi gain for the 5.1–5.9 GHz band. With dimensions of 650 mm x 650 mm x 386 mm and a weight of 7.4 kg, the antenna is built from rugged yet lightweight components for outdoor installations. The integrated Rocket™ mount allows direct installation of a Rocket BaseStation without tools. Optional accessories include the IsoBeam™ isolator radome for improved co-location isolation and a Precision Alignment Kit for accurate aiming and optimal link performance.

Advantages

The antenna provides high gain (30 dBi) for long-range wireless links while remaining relatively lightweight for its class. Its weather-resistant industrial design is intended to withstand harsh outdoor conditions. Tool-free integration with the built-in Rocket™ mount simplifies installation and reduces deployment time. Optional isolator and alignment accessories improve co-location performance and enable precise aiming for stable, high-quality links.

Suitable for

• Point-to-point wireless links in the 5.1–5.9 GHz band
• Long-range outdoor connectivity where high gain is required
• Deployments requiring co-location with improved isolation
• Installations needing precise antenna alignment for optimal throughput

Key specifications

• Antenna gain: 30 dBi
• Frequency band: 5.1–5.9 GHz
• Dimensions: 650 × 650 × 386 mm
• Weight: 7.4 kg
• Colour: White

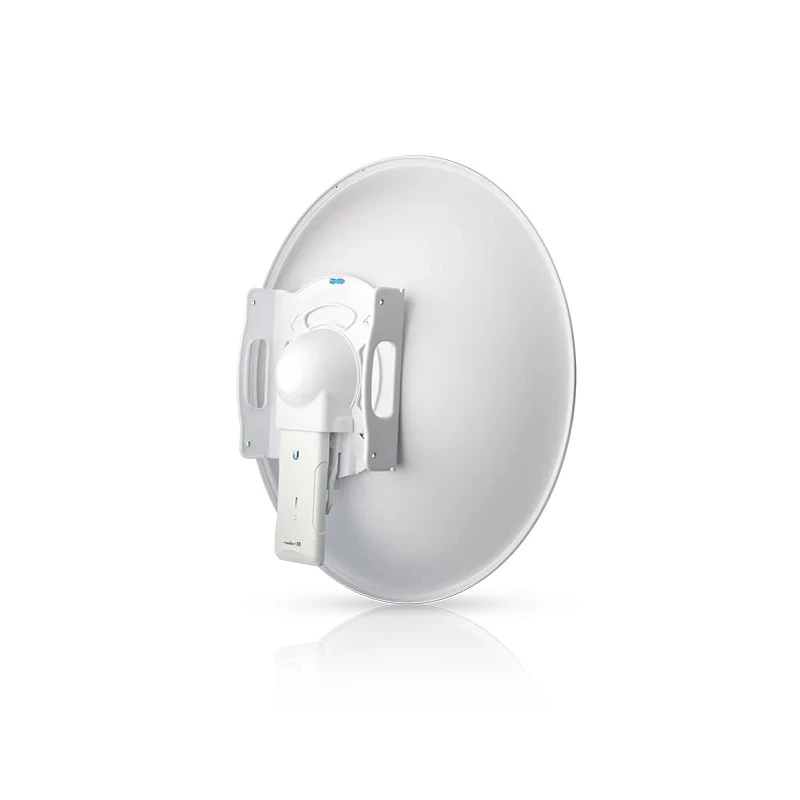

• Built-in Rocket™ mount for tool-free Rocket BaseStation installation

How to use

Mount the RD-5G30-LW on a suitable mast or tower using appropriate mounting hardware. Attach a compatible Rocket BaseStation directly to the integrated Rocket™ mount—no additional tools are required for that step. Point the antenna toward the remote site and, if available, use the Precision Alignment Kit to fine-tune the aim. Connect RF and power equipment according to the BaseStation and system installation guides, and verify link parameters after alignment.

Recommendations

Install the antenna at sufficient height and with a clear line of sight to the remote endpoint for best performance; enable the IsoBeam™ radome when co-locating multiple radios to reduce interference. Follow local mounting and grounding standards for outdoor equipment.
