Rittal 4050754 adereindhuls 0,25 mm² lichtblauw 500 stuks

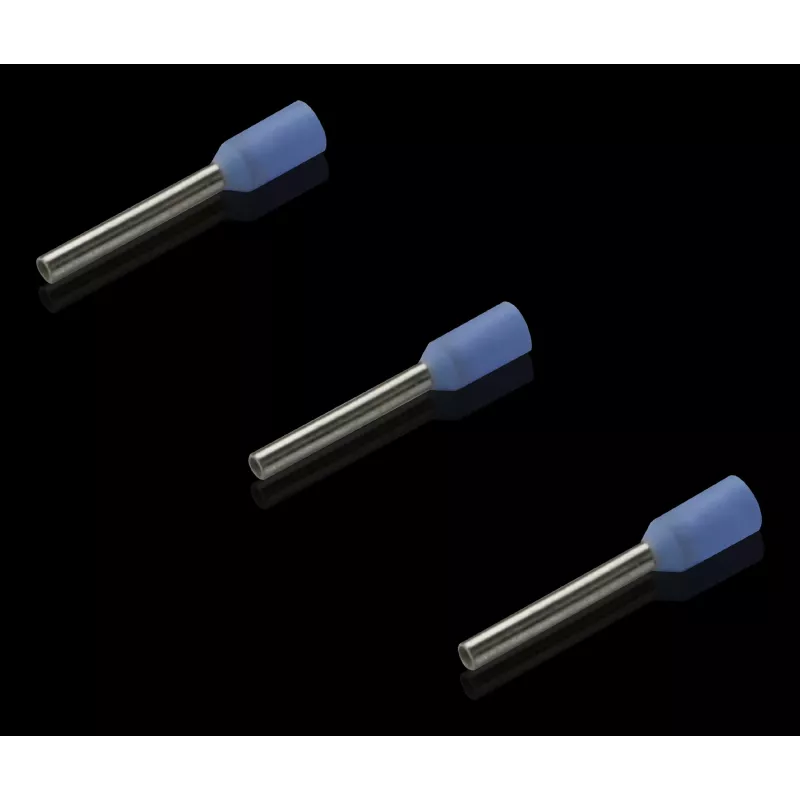

Wire end sleeve (ferrule) for fine-stranded conductors, cross-section 0.25 mm², with light blue polypropylene insulation collar. Supplied in a pack of 500 pieces, ideal for control cabinet wiring, switchgear, and electrical installations.

Advantages

Tin-plated electrolytic copper sleeve ensures reliable crimping and corrosion resistance. Insulation collar provides strain relief and protects against fraying. Compliant with DIN 46228 Part 4.

Suitable for

• Fine-stranded copper conductors
• Control cabinet and switchgear wiring
• Industrial electrical installations

Key specifications

• Conductor cross-section: 0.25 mm²
• Sleeve length: 8 mm
• Insulation colour: light blue
• Material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Pack size: 500 pieces

Recommendations

Use with a suitable crimping tool for wire end sleeves to achieve a secure connection. Store in a dry place to maintain plating quality.
