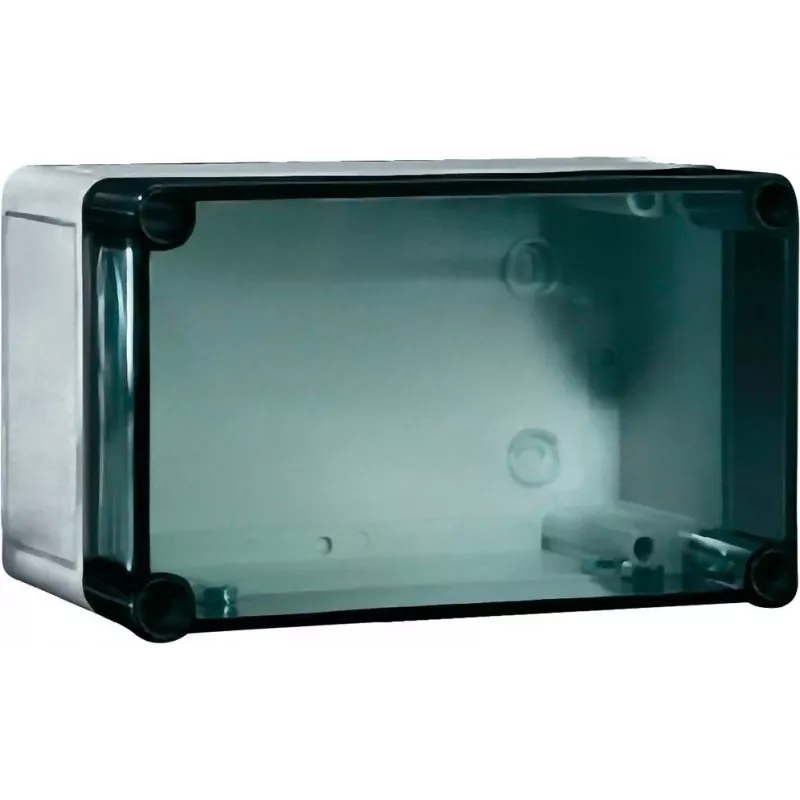

Rittal 9519.000 installatiebehuizing, polycarbonaat, lichtgrijs (RAL 7035), 182 x 180 x 165 mm, IP66

Electrical installations in harsh or outdoor environments demand enclosures that shield components from moisture, dust, and mechanical impact while remaining lightweight and easy to mount. The Rittal 9519.000 installation enclosure uses high-quality polycarbonate to deliver robust protection in a compact form factor, ensuring reliable operation of control and distribution systems.

Who is it for

This enclosure is ideal for electricians, panel builders, and system integrators who need a durable, non-corrosive housing for industrial controls, electrical distribution, or connection boxes. It suits applications in machine building, marine, and outdoor installations where IP66 protection is mandatory.

Main features

• Material: Polycarbonate – high impact resistance and UV stability
• Colour: Light grey (RAL 7035) – blends with standard industrial equipment
• Protection class: IP66 – completely dust-tight and protected against powerful water jets
• Impact resistance: IK08 – withstands 5 joules of impact energy
• Temperature range: -35 °C to +80 °C (operating), -35 °C to +120 °C (storage)
• Flammability rating: UL 94 V-2 – self-extinguishing
• Mounting: Wall mounting with integrated fastening points
• Lid: Opaque, screw-on for secure closure
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, Russian Maritime Register of Shipping, VDE

Specifications

• External dimensions: 182 mm (H) x 180 mm (W) x 165 mm (D)
• Material: Polycarbonate
• Colour: Light grey (RAL 7035)
• Protection class: IP66
• Impact resistance: IK08
• Operating temperature: -35 °C to +80 °C
• Storage temperature: -35 °C to +120 °C
• Flammability rating: UL 94 V-2
• Lid type: Opaque
• Mounting type: Wall mounting
• Number of lids: 1
• Rated insulation voltage: 1000 V AC
• Rated impulse withstand voltage: 6 kV
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, Russian Maritime Register of Shipping, VDE
• Enclosure type: Installation enclosure
• Gland plate: No (integrated)
• Surface finish: Untreated
• Application area: Industrial, electrical distribution, control systems

Tips

For outdoor use, ensure cable glands are properly sealed to maintain the IP66 rating. The polycarbonate material resists corrosion, making it suitable for marine and chemical environments. Pair with Rittal accessories like mounting plates or cable glands for a complete solution.
