Rittal SV 3589.005 vlakke koperrail 30x10 mm, 2400 mm, 800 A, 2 stuks voor RiLine60

Rated for a continuous 800 A, this flat copper busbar is the backbone of high-capacity power distribution in RiLine60 systems. Its 30 x 10 mm cross-section and 2400 mm length provide ample surface for low-resistance connections, while the bare electrolytic copper ensures excellent conductivity and heat dissipation.

Overview

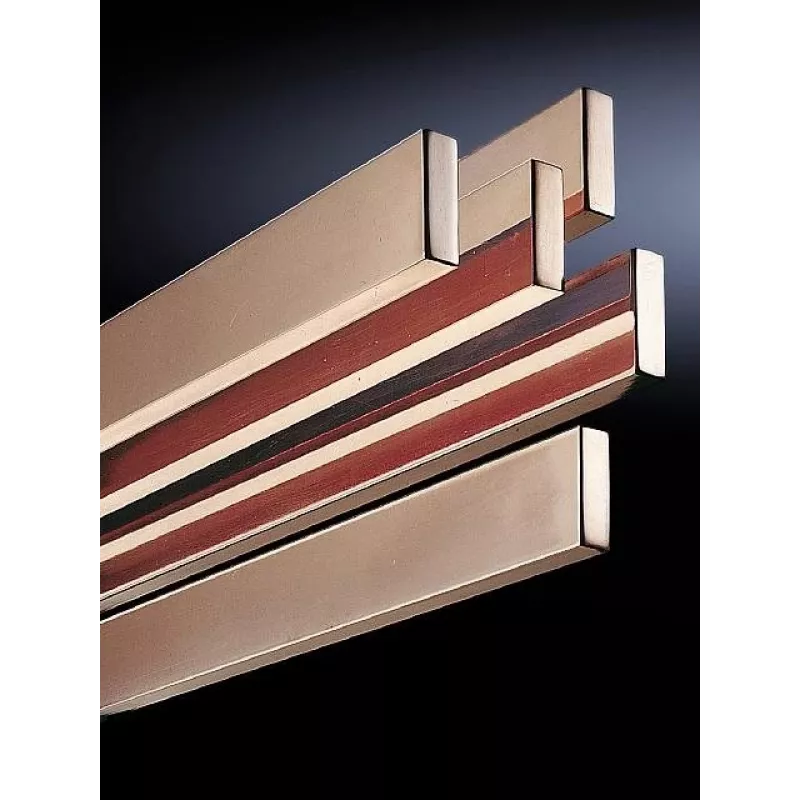

The Rittal SV 3589.005 is a pair of solid flat copper busbars designed for use with Rittal RiLine60 busbar support systems. Each bar measures 30 mm wide by 10 mm thick and 2400 mm long, offering a robust conductor for switchgear and controlgear assemblies. Made from untreated electrolytic copper (E-Cu), it delivers reliable performance in demanding electrical installations.

What stands out

• High current rating of 800 A for heavy-duty power distribution.
• Generous 30 x 10 mm cross-section minimizes voltage drop and heat buildup.
• 2400 mm length allows flexible cutting or full-length installation.
• Compatible with RiLine60 busbar supports for quick, tool-free mounting.
• Supplied as a pack of 2 for convenient multi-phase or spare use.
• Complies with IEC 61439 for low-voltage switchgear assemblies.

Technical details

• Product type: Flat copper busbar
• Material: Electrolytic copper (E-Cu), untreated surface
• Dimensions (W x H): 30 x 10 mm
• Length: 2400 mm
• Rated current (Ie): 800 A
• Short-circuit withstand current (Icw): 25 kA for 1 s
• Max. operating temperature: 130 °C
• Mounting: For RiLine60 busbar support systems
• Conductor type: Solid
• Color: Natural copper
• RoHS compliant
• Pack quantity: 2 pieces

Our verdict

A dependable and high-capacity busbar solution for RiLine60 installations. Its solid copper construction and 800 A rating make it ideal for main distribution and feeder circuits, while the pack of two offers practical value for multi-bar configurations.
