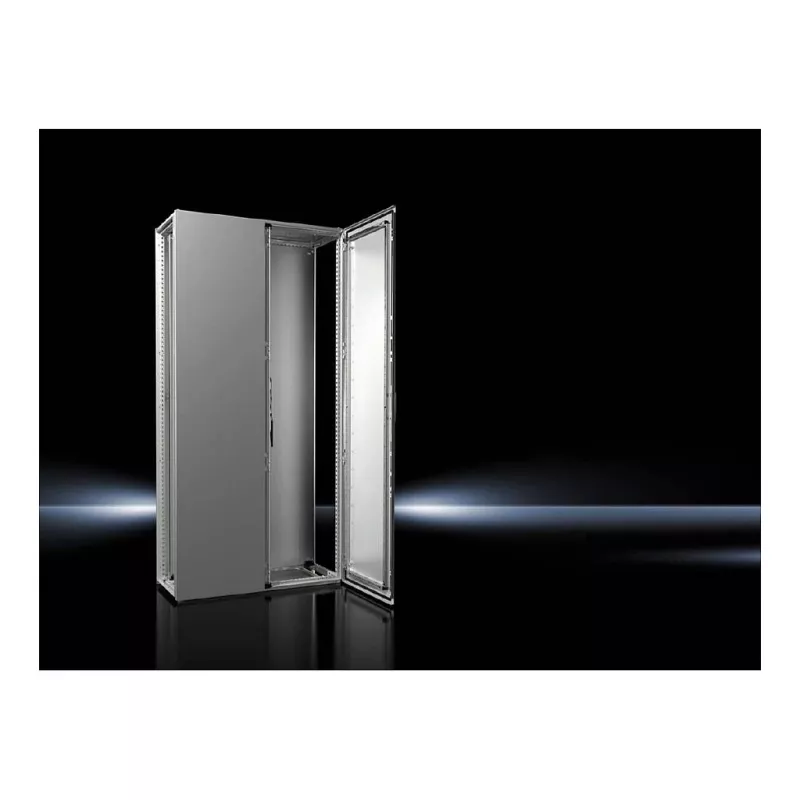

Rittal VX aaneenschakelbaar kastsysteem, 2-deurs, 1000x2000x400 mm, RAL 7035

In industrial control rooms and data center infrastructure, space is at a premium. This Rittal VX Baying Enclosure System, with its 2-door configuration and compact 1000x2000x400 mm dimensions, allows you to create a continuous, high-capacity cabinet lineup while maximizing floor space. The symmetrical frame profile and baying capability make it a versatile choice for network, server, and electrical installations where a seamless, secure housing is required.

Key specifications

• Type: Baying Enclosure System
• Dimensions: 1000 mm width x 2000 mm height x 400 mm depth
• Doors: 2, opening angle 130°
• Material: Sheet steel
• Surface finish: Dip-primed and powder-coated (textured paint) on panels, doors, and roof; zinc-plated mounting plate
• Colour: RAL 7035 (light grey)
• Protection: IP 55 (IEC 60529), NEMA 12
• Mounting plate: Included, static load capacity 12000 N
• Frame static load capacity: 15000 N
• Lock: 3 mm double-bit
• Base plates: Included
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, RMRS, VDE, CSA, EAC

Why choose it

Rittal's VX series is renowned for its stability and flexibility. The baying system allows multiple enclosures to be joined seamlessly, forming a robust and uniform installation. The IP 55 protection and NEMA 12 rating safeguard your equipment from dust, water jets, and other environmental factors. The included mounting plate and base plates simplify installation, while the high static load capacities ensure reliable support for heavy components.

Ideal use cases

• Industrial automation and control systems
• Data center and server room infrastructure
• Network distribution and telecommunications
• Electrical power distribution and protection

Good to know

The enclosure is constructed from sheet steel with a dip-primed frame and powder-coated panels, doors, and roof. The mounting plate is zinc-plated for corrosion resistance. The symmetrical frame profile allows for easy baying and expansion. The 3 mm double-bit lock provides secure access control. This enclosure is suitable for a wide range of industrial and IT applications.
