RJ-45-contactdoos METZ CONNECT 130B127003-E grijs

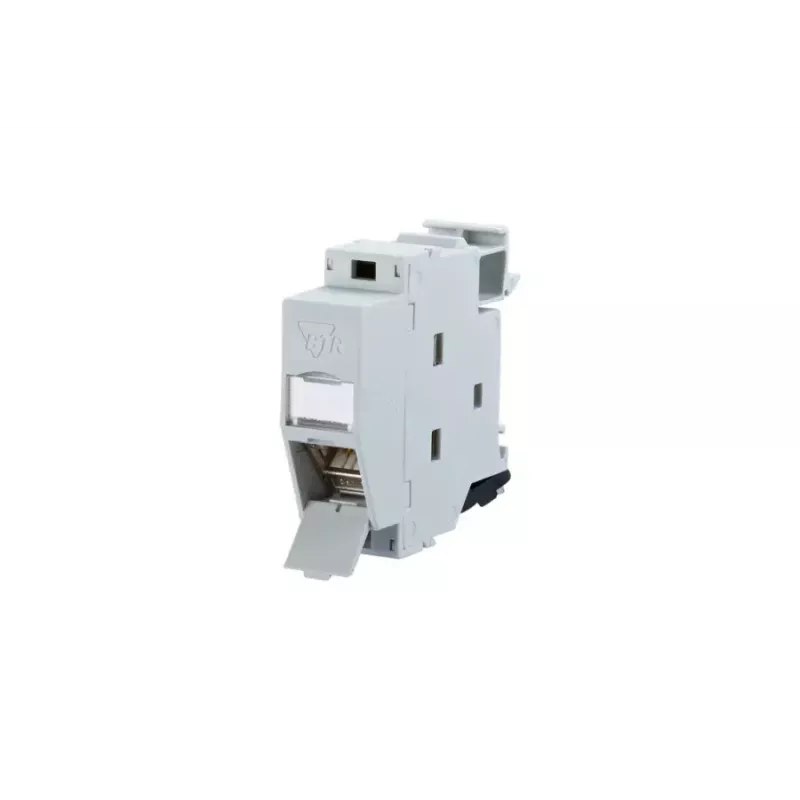

The METZ CONNECT 130B127003-E Grey is an RJ-45 socket outlet for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for residential and industrial installations. It is equipped with a Cat.6A 270° RJ45 individual module, offers 45° cable entry from the bottom with a 45° downward plug direction, and includes an integrated dust protection cover. The unit is designed for Class EA performance up to 500 MHz and has been component-tested and certified for Cat.6A and higher test limits by GHMT and to relevant standards.

Advantages

The outlet supports 10 GBit Ethernet (IEEE 802.3an) and remote powering methods including PoE, PoE Plus, UPoE and 4PPoE. It has been component tested to ISO/IEC 11801, DIN EN 50173-1, TIA/EIA‑568‑C.2 and IEC 60603‑7‑51; the component is tested up to 600 MHz and link performance up to 800 MHz. Connection of data conductors is made via insulation displacement connectors (IDC) for AWG 26/1 to 22/1 (solid) and AWG 26/7 to 22/7 (stranded). The conductor assignment for T568A and T568B is printed directly on the stuffer cap for straightforward wiring. At 1 HP width, multiple modules can be mounted in a standard distribution panel.

Suitable for

• Structured cabling in residential and commercial distribution panels
• 10 GBit Ethernet networks and high-speed data links
• Deployments requiring powered Ethernet (PoE, PoE+, UPoE, 4PPoE)
• HDBaseT signal transmission
• Compact installations where multiple RJ45 outlets are mounted on TH35 rails

Key specifications

• Manufacturer: BTR (METZ CONNECT module)
• Model / MPN: 130B127003-E
• EAN: 4250184136552
• Mounting: TH35 rail to DIN EN 60715
• Module: Cat.6A individual RJ45, 270°
• Performance class: EA up to 500 MHz (component tested up to 600 MHz, link up to 800 MHz)
• Standards: ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51; GHMT certified
• Cable entry / plug direction: 45° bottom entry, 45° downward plug
• Wire termination: IDC for AWG 26/1–22/1 (solid) and AWG 26/7–22/7 (stranded)
• Width: 1 HP (allows up to 12 REG plus in standard panels)
• Protection: cover for direct contact; dust protection cover included; when mounted as protection class I, equipotential bonding via integrated plate to building earth; protection class II available when mounted in insulated distributor panels (remove bonding spring)

How to use

Snap the outlet onto a TH35 DIN rail in the distribution panel and connect the equipotential bonding according to the installation class: for protection class I, connect the integrated equipotential plate to the building equipotential bonding via the bonding terminal; for protection class II, install in a panel with protective insulation and remove the equipotential bonding spring. Prepare and insert conductors into the IDC according to the printed T568A or T568B assignment on the stuffer cap, then terminate using the appropriate tool. Insert the mating RJ45 plug at a 45° angle downward. The dust protection cover can remain in place when not in use.

Recommendations

For reliable 10 GBit Ethernet and PoE operation, use Category 6A cabling rated to at least the same performance class and observe manufacturer guidelines for proper grounding and cable routing. Verify termination quality with appropriate test equipment after installation.
