RJ45 modulaire field termination plug Intellinet Cat6a 10G

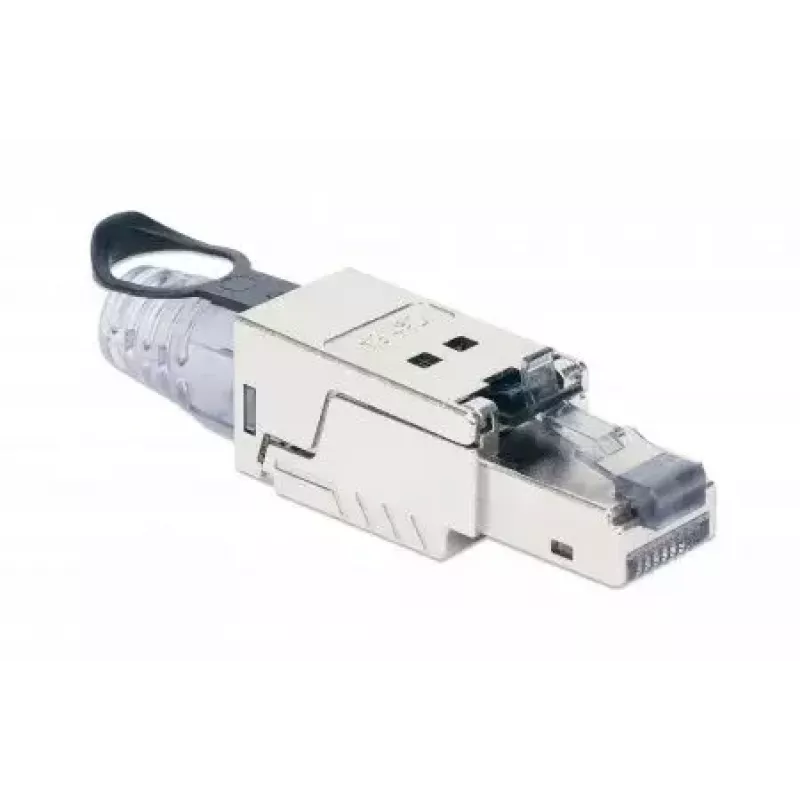

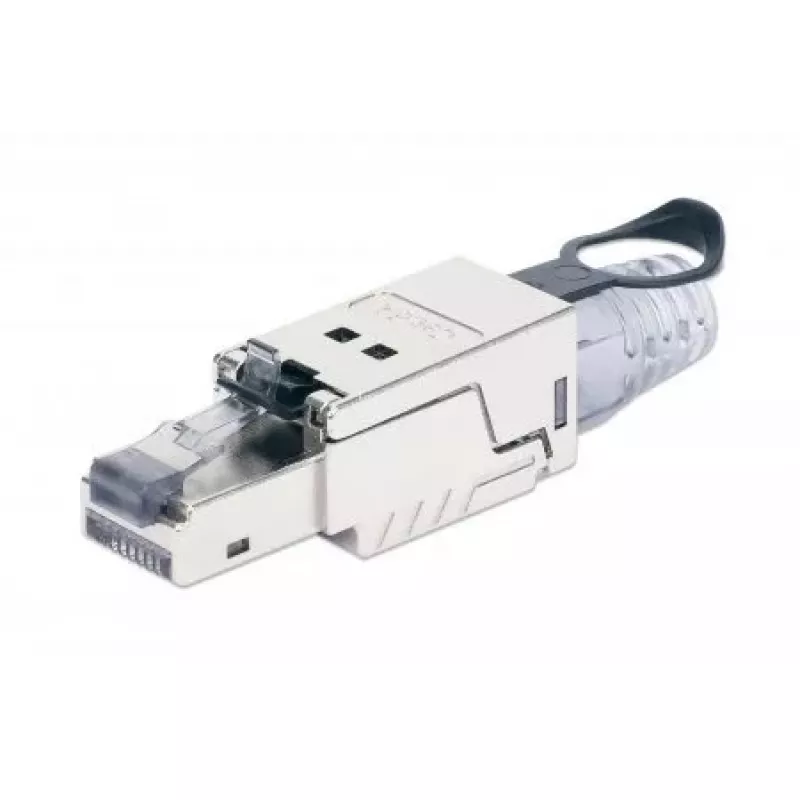

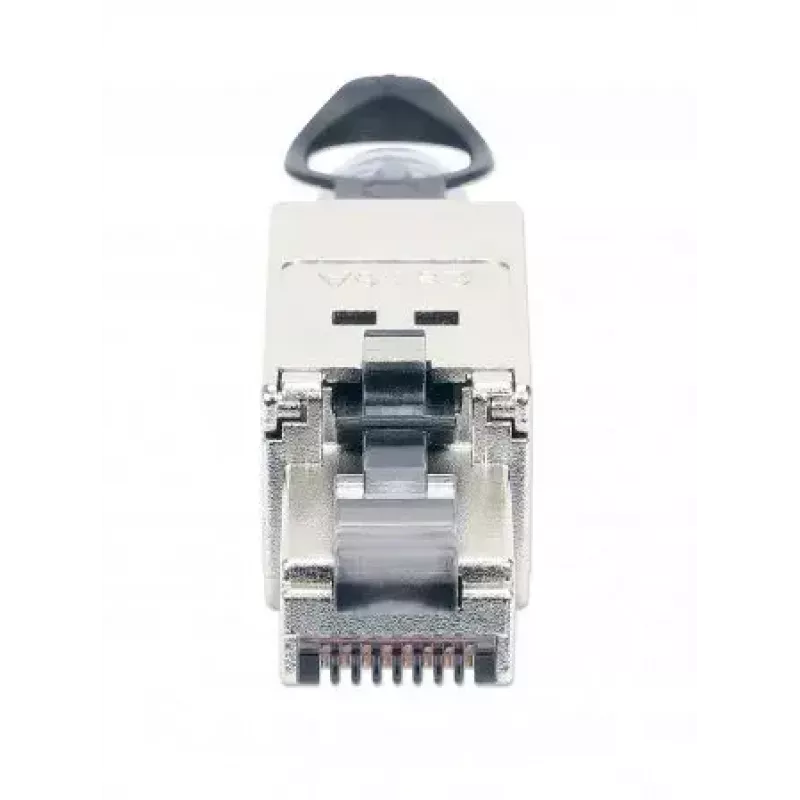

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly. The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release from Intellinet Network Solutions enables quick on-site terminations for devices such as security cameras and industrial electronics. It supports both stranded and solid conductor cables and is intended for high-performance network links up to 10GBase-T, including PoE applications up to IEEE 802.3bt (PoE++ / 4PPoE / Ultra PoE).

Advantages

The toolless design allows cable assembly without special tools and typically takes under two minutes. Gold-plated contacts and 360° STP shielding preserve signal integrity and reduce interference. The integrated pull-ring release tab simplifies unplugging in confined or hard-to-reach installations. Compatible with both stranded and solid conductors, the plug supports higher-speed networking and advanced PoE power levels.

Key specifications

• Category: Cat6a (10G)
• Shielding: 360° STP (shielded twisted pair)

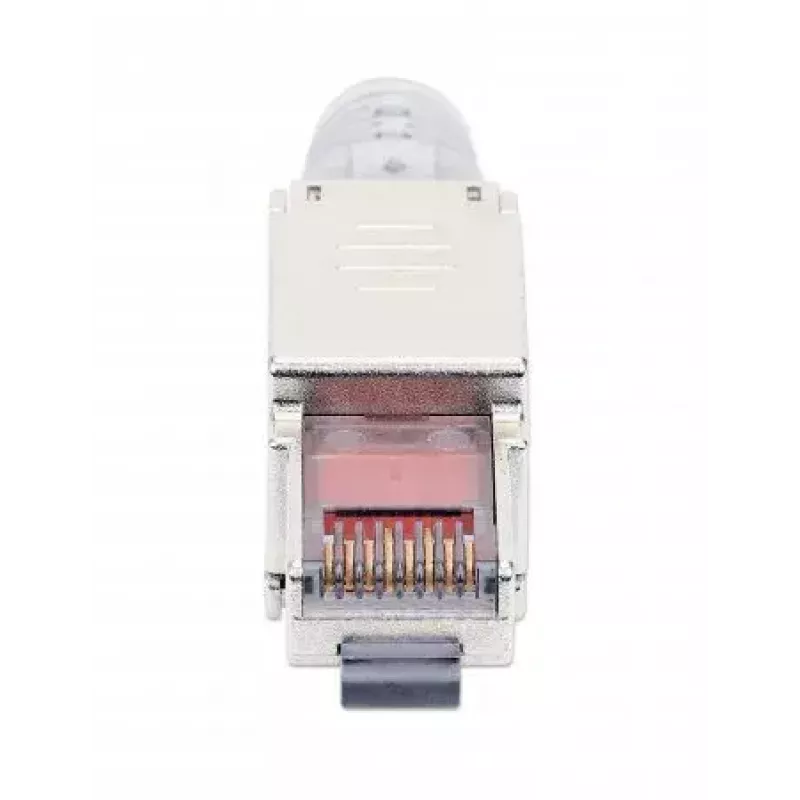

• Contacts: gold-plated
• Termination: field-installable, toolless
• Conductor compatibility: stranded and solid
• Supported network: up to 10GBase-T
• PoE support: up to IEEE 802.3bt (PoE++ / 4PPoE / Ultra PoE)
• Feature: built-in pull-ring release tab

How to use

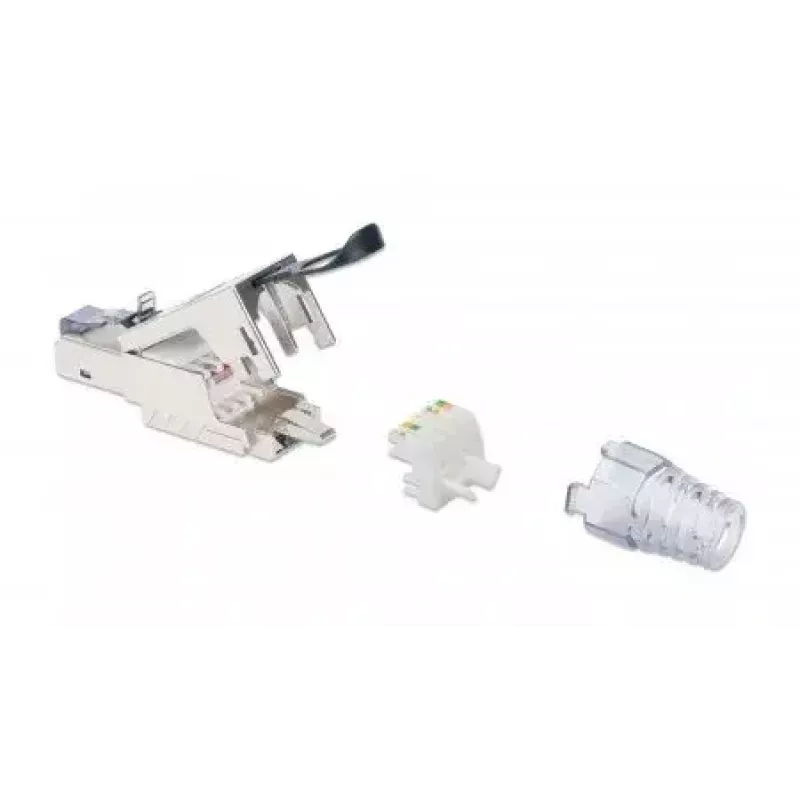

Prepare the cable by stripping the jacket to the recommended length and arranging pairs according to the required wiring scheme. Insert the conductor ends into the modular plug until they reach the contacts, then assemble the plug parts per the manufacturer's instructions to secure the conductors. No crimping tools are required; the toolless mechanism establishes reliable contact. Use the pull-ring tab to release the plug from an RJ45 jack when needed.
