ROGER MC16-PAC-ST-3-KIT Toegangscontroller-set met behuizing

The ROGER MC16-PAC-ST-3-KIT is an access controller kit with enclosure, designed for three passages. It provides extensive input and output options, including parametric inputs, relay outputs, transistor outputs, and power supply outputs. The kit includes a power supply and a DIN rail for mounting.

Key features

• Three-passage access controller kit with enclosure
• 8 parametric inputs, expandable with 8 additional parametric inputs
• 2 relay outputs (30V/1.5A DC/AC, NO/NC)
• 8 transistor outputs (15V/150mA DC, open collector)
• 8 transistor outputs on expander (LCKx, BELLx), each 15VDC/1A
• Two power supply outputs: 12VDC/0.2A (TML) and 12VDC/1A (AUX)
• Power supply outputs on expander: two 13.8VDC/0.2A (VOUT, AUX), four 13.8VDC/0.2A (TML), four 13.8VDC/1A (VDR)
• Anti-tamper protection: NO/NC sensor; 50VDC/50mA
• Buffer for 8 million events
• 2 RS485 ports
• Ethernet port: 10BASE-T 10/100Mb
• Distances: up to 1200m for RS485; up to 150m for RACS CLK/DTA
• Power supply: LRS7512/PS4D (13.8VDC/5.4A)

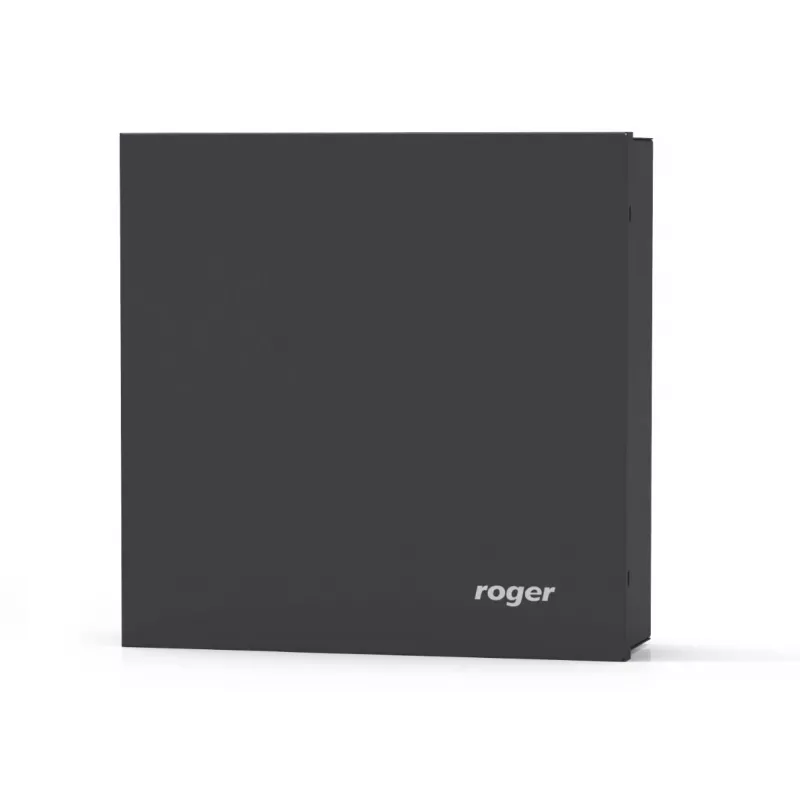

• Enclosure: anthracite grey (RAL7016); 0.7 mm steel sheet
• DIN rail: 396 mm
• Protection degree: IP20
• Environmental class (per EN 50133-1): Class I
• Indoor conditions: temp. 5°C ~ 40°C
• Relative humidity: 10 ~ 95% (non-condensing)

Specifications

• Brand: Roger
• MPN: MC16-PAC-ST-3-KIT
• Supply voltage: 17~22 VAC (opt. 18 VAC); 10~15 VDC (opt. 12 VDC); 22~26 VDC (opt. 24 VDC)
• Battery space: 12V/17Ah
• Charging current: 0.3A/0.6A/0.9A
• Current consumption (average): approx. 150mA
• Controller dimensions: 175 x 72 x 30 mm
• Enclosure dimensions: 365 x 405 x 121 mm
