ROGER ME-5-S behuizing

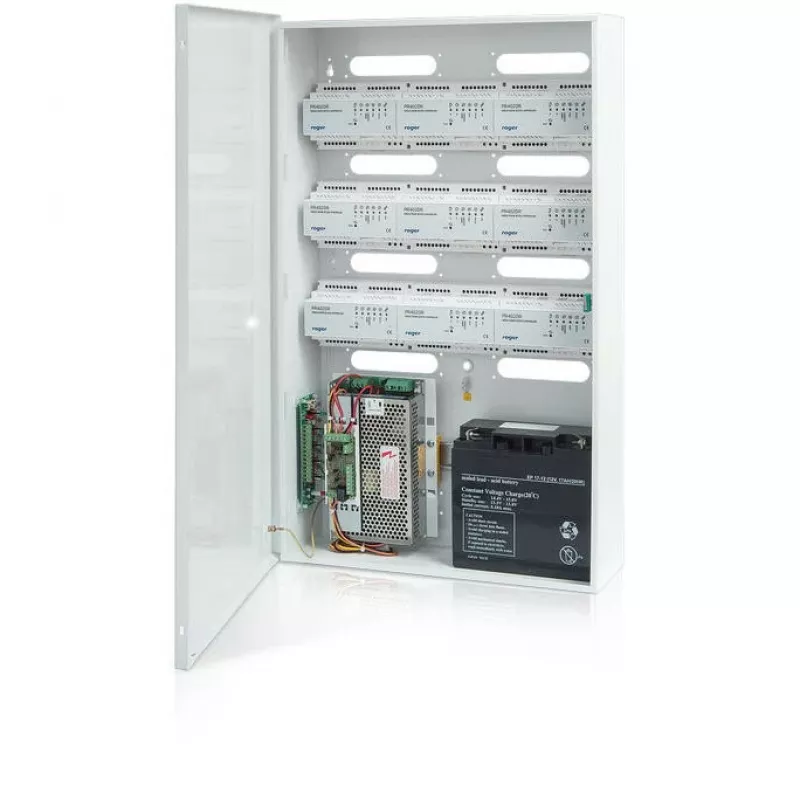

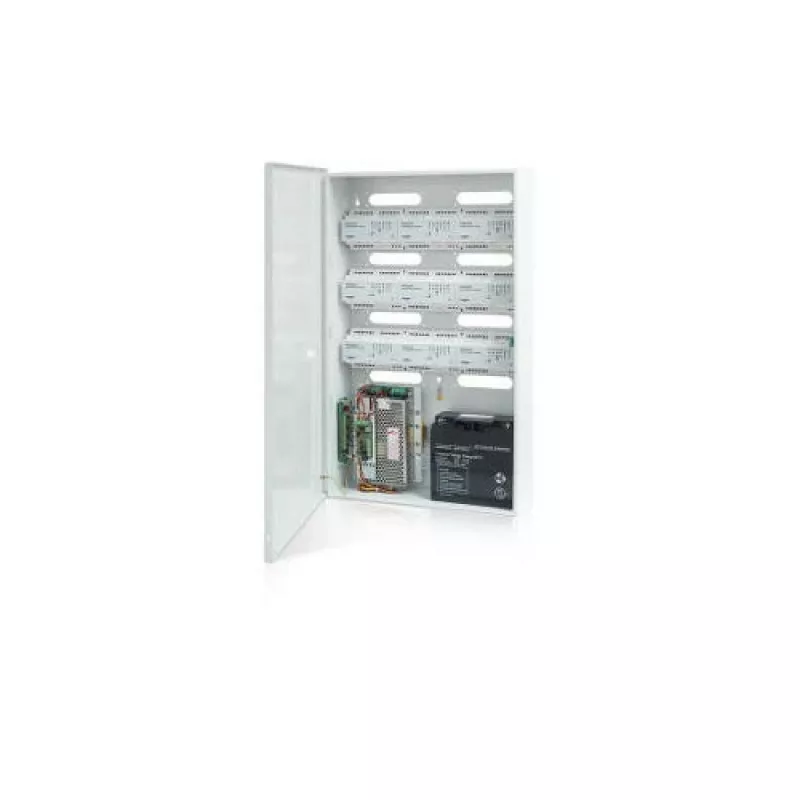

The ROGER ME-5-S is a metal enclosure designed for ROGER access control systems. It includes a tamper contact, a power supply and voltage distributor, and space for a 17Ah battery. The enclosure can accommodate up to 9 PR402DR-12VDC controllers or 18 PR102DR controllers.

Key features

• Tamper contact
• Power supply and voltage distributor included
• Space for 17Ah battery
• Can hold 9 PR402DR-12VDC controllers or 18 PR102DR controllers

Specifications

• Rated supply voltage: 230VAC (+/- 15%), 50Hz
• Switching power supply: Buffer with battery and AC network status monitoring
• Power supply output voltage: 13.8VDC
• Output current: power supply max. 11A (including battery charging current)
• Battery charging current: 1A or 4A
• Tamper contact: 30VDC/0.5A
• Accessories: Voltage distribution module, 5 circuits protected by 0.5A or 1A fuse
• Environmental conditions: -10°C to +40°C, humidity 10-90% (non-condensing)

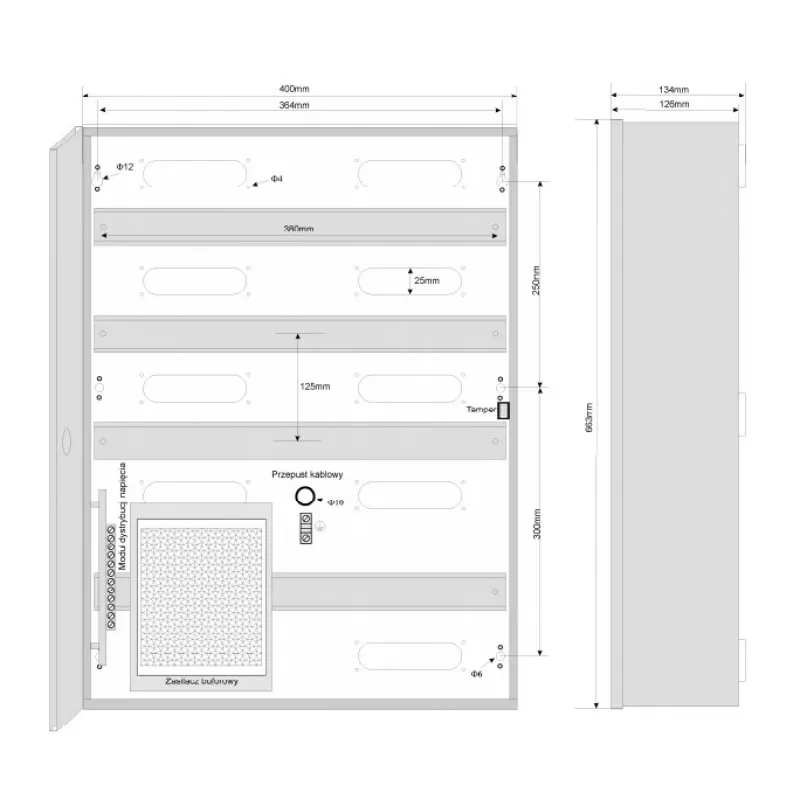

• Dimensions: 400 x 665 x 135 mm (W x H x D)
• Weight: 8 kg
