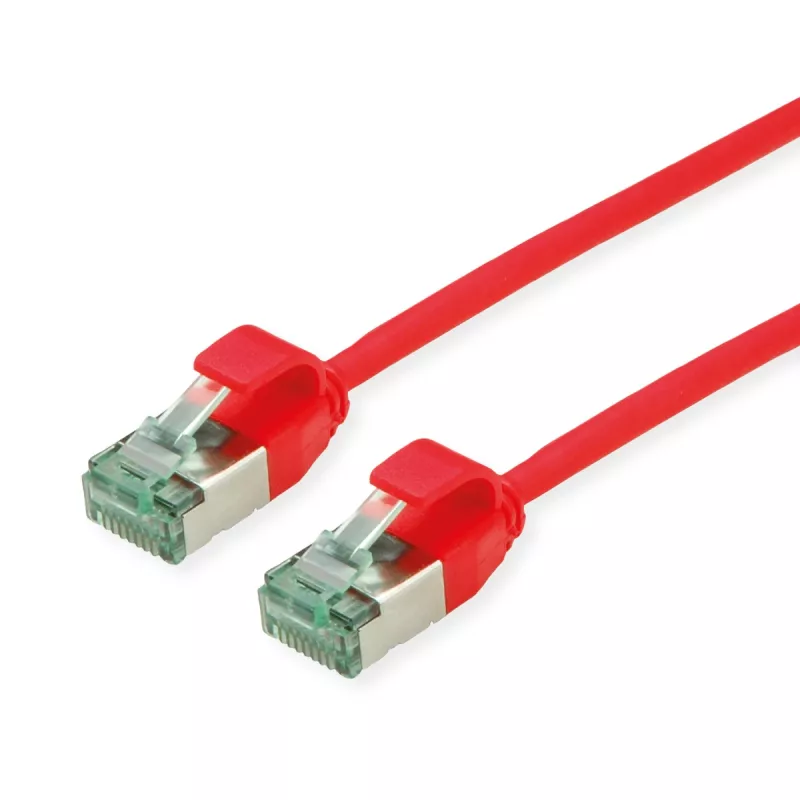

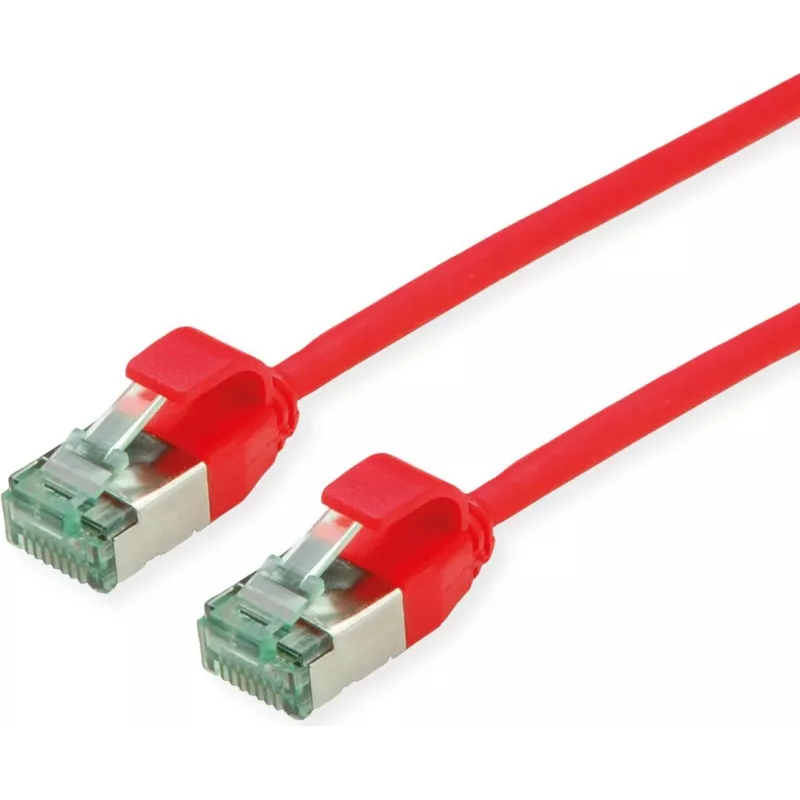

ROLINE RM U/FTP Cat.6A Slim-patchkabel, rood, 0,5 m 21.45.3312

10 Gigabit Ethernet in a slim, halogen-free design — this red 0.5 m patch cable delivers Cat.6A performance with a diameter reduced for high-density patching.

Overview

The ROLINE RM U/FTP Patch Cable is a Category 6A slimline cable with individually foil-shielded pairs (U/FTP). It supports 10GBASE-T networks at up to 500 MHz bandwidth, making it suitable for data centers, office networks, and high-speed workstation connections.

What stands out

• Cat.6A / Class EA performance: 10 Gbps data rate up to 500 MHz.
• Slimline design: reduced outer diameter saves space in dense patch panels and cable managers.
• U/FTP shielding: each twisted pair is individually foil-shielded, providing excellent crosstalk and EMI protection.
• LSZH jacket: low smoke zero halogen material for improved fire safety in enclosed spaces.
• Snagless boot: protects the locking tab during installation and removal.
• Gold-plated RJ45 contacts: ensure reliable, corrosion-resistant connections.

Technical details

• Length: 0.5 m
• Colour: Red
• Cable type: U/FTP (pair shielded)
• Conductor: Copper, 28 AWG
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Wiring standard: TIA/EIA-568B
• Jacket: LSZH (halogen-free)
• Backward compatible with Cat.6, Cat.5e, Cat.5

Our verdict

A compact, high-performance patch cable for 10G networks where space is at a premium. The slim profile and LSZH jacket make it an excellent choice for modern office and data center environments.
