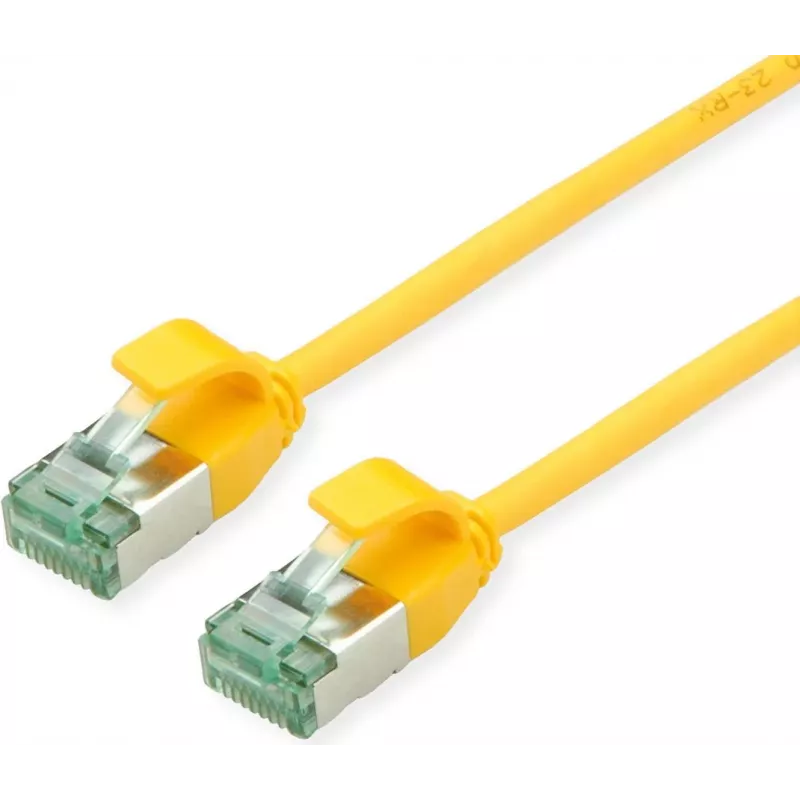

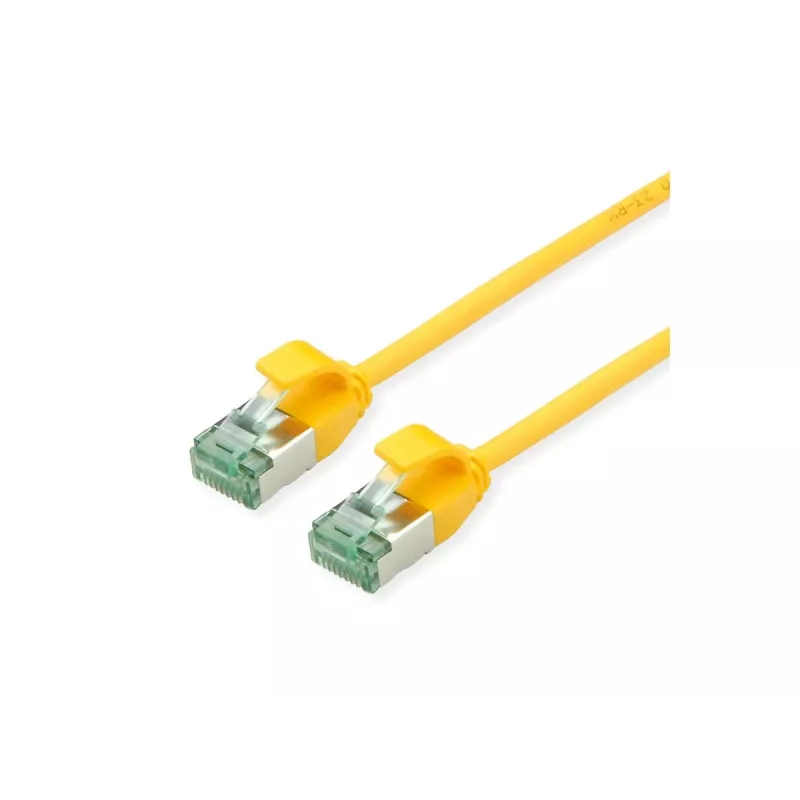

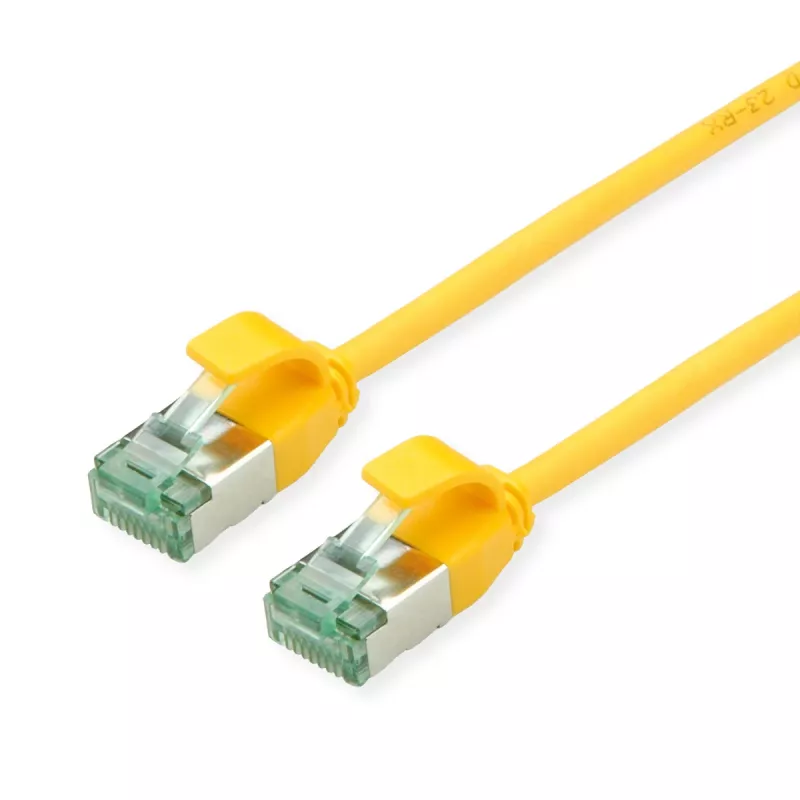

ROLINE RM U/FTP patchkabel Cat.6A Class EA SLIM geel 1m 21.45.3323

High-density network installations demand cables that combine performance with space efficiency. The ROLINE RM U/FTP Patch Cable Cat.6A Class EA SLIM in yellow solves this by delivering 10 Gigabit Ethernet in an ultra-slim profile, making it ideal for crowded patch panels and cable management systems.

Who is it for

Network administrators and IT professionals managing data centers, server rooms, or office networks where space is at a premium and reliable high-speed connectivity is non-negotiable.

Main features

• Cat.6A performance supporting 10GBASE-T up to 500 MHz bandwidth
• U/FTP shielding: each pair individually foil-shielded for superior crosstalk resistance
• Slim 3.6 mm outer diameter for improved airflow and easier cable routing
• Snagless boot protects the locking tab during installation and removal
• Stranded copper conductors (AWG 28/7) for flexibility and durability
• Yellow PVC jacket for high visibility and easy identification

Specifications

• Cable length: 1 m
• Connector type: RJ45 male to RJ45 male
• Wiring scheme: TIA/EIA-568B
• Conductor material: Copper
• Jacket material: PVC
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

Use this slim cable in high-density patch areas to maintain organization and reduce clutter. The yellow color can be used for quick identification of specific network segments or priority connections.
