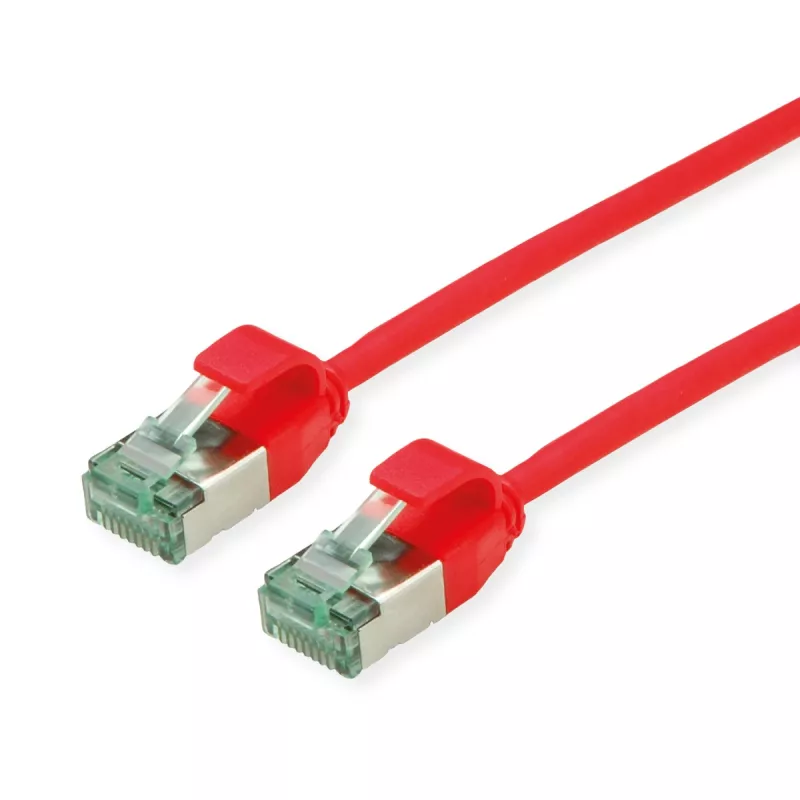

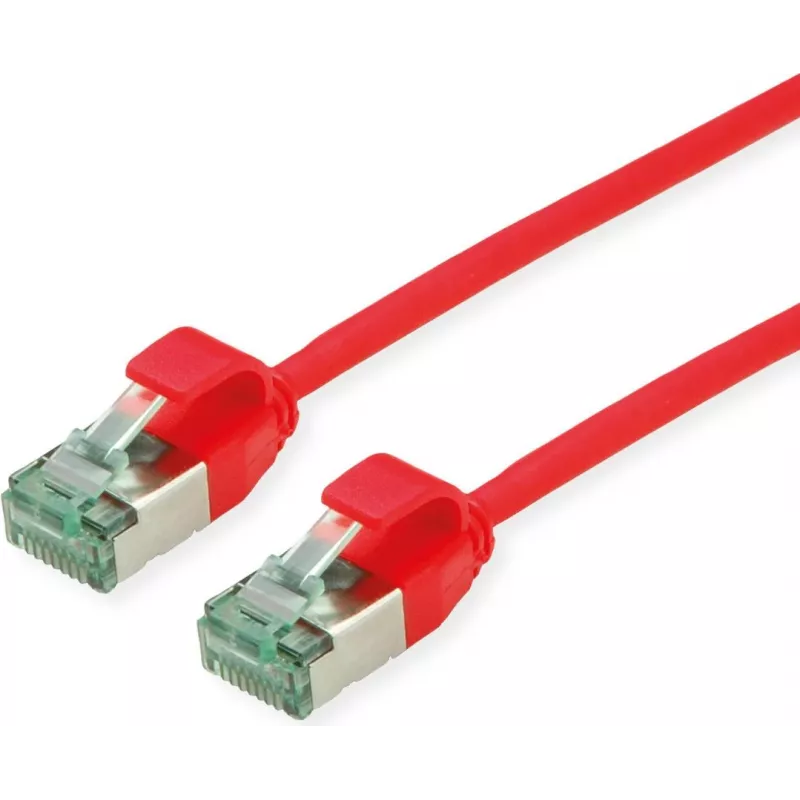

ROLINE RM U/FTP-patchkabel Cat.6A/Class EA Slim rood 0,15m 21.45.3310

This slim Cat.6A U/FTP patch cable delivers 10 Gigabit Ethernet performance in a compact, flexible design. With a length of 0.15 m, it is ideal for high-density patching and short connections in data centers or network cabinets. The red jacket allows easy identification and color-coding.

Advantages

The slimline construction reduces cable bulk, improving airflow and simplifying cable management. Gold-plated shielded RJ45 connectors ensure reliable, corrosion-resistant connections. The LSZH jacket emits low smoke and zero halogen, enhancing safety in enclosed spaces.

Suitable for

• High-density 10GBASE-T network connections
• Data centers and server rooms
• Structured cabling in enterprise environments
• Applications requiring short, flexible patch cords

Key specifications

• Cable type: U/FTP (overall foil screen)
• Category: Cat.6A / Class EA
• Length: 0.15 m
• Colour: Red
• Conductor: Stranded copper, AWG 28
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbps
• Jacket: LSZH
• Outer diameter: approx. 4.8 mm
• Connectors: Shielded RJ45, gold-plated contacts
• Wiring: TIA/EIA 568B, 1:1
• Impedance: 100 Ohm

Recommendations

Pair with ROLINE Cat.6A shielded patch panels and keystone jacks for a complete high-performance cabling system. Use in environments where slim profile and halogen-free materials are required.
