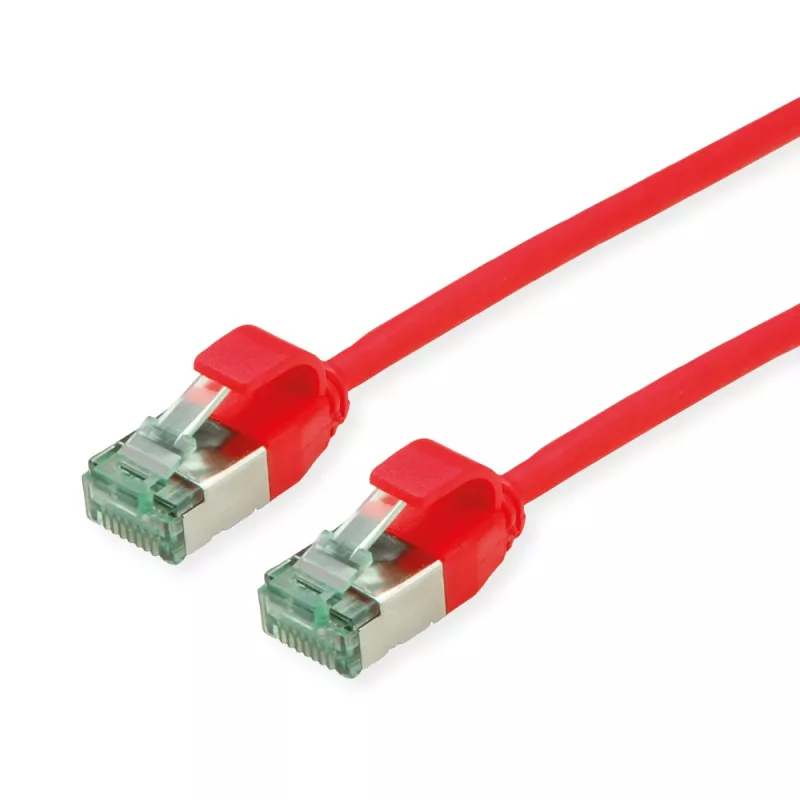

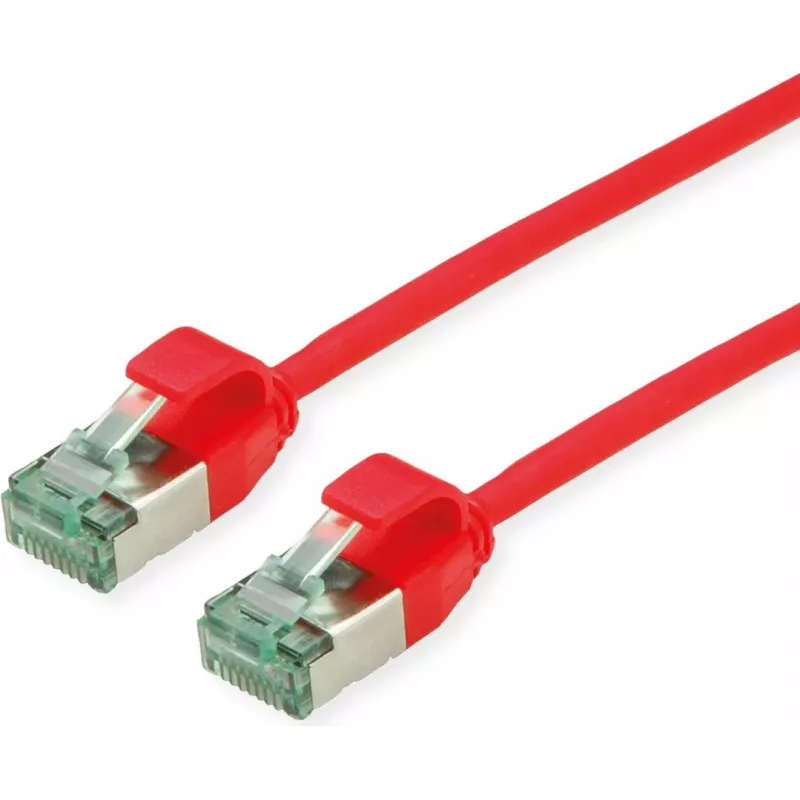

ROLINE RM U/FTP-patchkabel Cat.6A Class EA Slim rood 5m 21.45.3317

Running 10 Gigabit Ethernet over longer distances in dense racks often means choosing between bulky, stiff cables and unreliable links. This slim red patch cable solves that problem: it delivers full Cat.6A performance in a narrow, flexible form that keeps high-density patch panels tidy and airflow unobstructed.

Who is it for

Network administrators, data center technicians, and office IT staff who need dependable 10G connections without the clutter of standard-diameter cables. It is especially useful in server rooms, structured cabling systems, and anywhere space is at a premium.

Main features

• U/FTP shielding: each pair is individually foiled, reducing alien crosstalk and ensuring stable 10GBASE-T transmission.
• Slimline design: smaller outer diameter than conventional Cat.6A cables, saving space and improving airflow in racks.
• LSZH jacket: low smoke zero halogen material for safer indoor installations.
• Gold-plated RJ45 connectors with snagless boots for reliable, long-lasting connections.
• Stranded copper conductors (AWG 28/7) for flexibility and easy routing.

Specifications

• Category: Cat.6A (Class EA)
• Shielding: U/FTP (unshielded overall, foiled twisted pairs)
• Length: 5 m
• Colour: Red
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Conductor: Copper, AWG 28/7 stranded
• Jacket: LSZH (halogen-free)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Wiring: TIA/EIA 568B
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, avoid sharp bends and use cable management accessories to maintain the minimum bend radius. Pair with Cat.6A patch panels and keystone jacks to preserve end-to-end performance.
