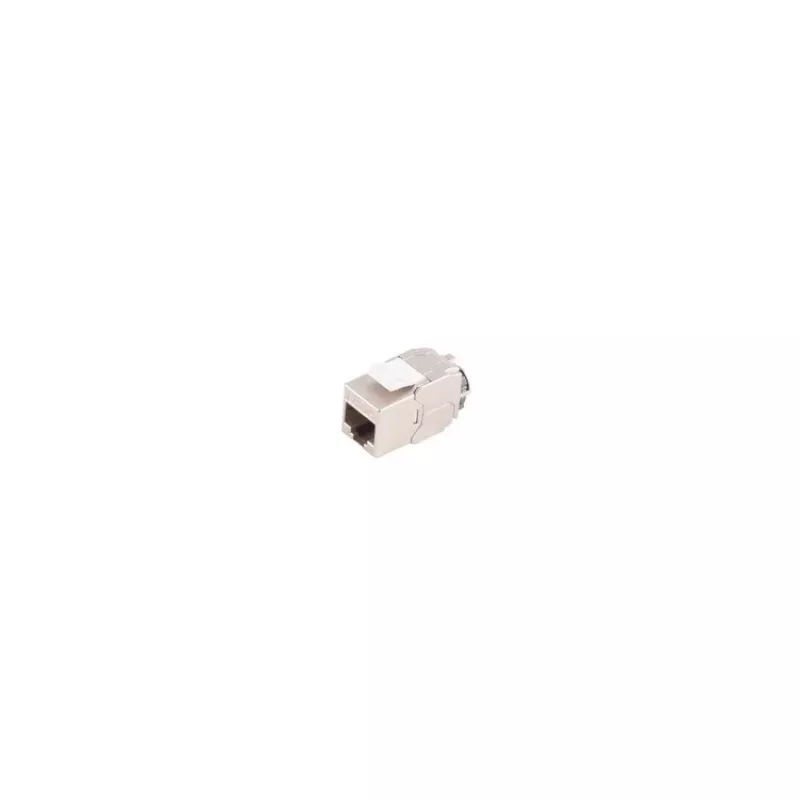

S CONN MAXIMUM CONNECTIVITY Cat.6a STP gereedschapsvrije Keystone-module RJ45, ReFix, zilver 08-10032

The S CONN MAXIMUM CONNECTIVITY 08-10032 stands out with its tool-free ReFix termination, allowing fast and repeatable installation without punch-down tools. Its die-cast zinc housing and full shielding make it suitable for high-speed 10GBASE-T networks.

Highlights

• Tool-free ReFix IDC termination for quick, reliable connections
• Cat.6a performance up to 500 MHz and 10 Gigabit Ethernet
• STP shielded die-cast zinc housing for EMI protection
• Gold-plated RJ45 contacts ensure long-term signal integrity
• Snap-in keystone design fits standard panels, wall plates, and surface boxes

In daily use

This keystone module simplifies field terminations: strip the cable, insert the conductors into the colour-coded ReFix slots, and snap the module into any standard keystone opening. The shielded housing grounds directly to the panel, maintaining shield continuity across the link. Dual T568A/B wiring supports both legacy and current installations.

Full specifications

• Product type: Keystone module
• Cabling standard: Category 6a (Cat.6a)
• Shielding type: STP (Shielded Twisted Pair)
• Termination type: Tool-free IDC (ReFix)
• Connector type (front): RJ45 female
• Housing material: Die-cast zinc
• Contact plating: Gold-plated
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring scheme: T568A / T568B (dual compatible)
• Compatibility: Keystone panels, wall plates, surface mount boxes
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Number of ports: 1
• Mounting type: Snap-in
• Application: High-speed data networks
• Colour: Silver
• Operating temperature range: -10°C to +60°C

Final note

For installers and IT professionals, the 08-10032 delivers Cat.6a performance with the convenience of tool-free termination, reducing installation time and ensuring consistent results.
