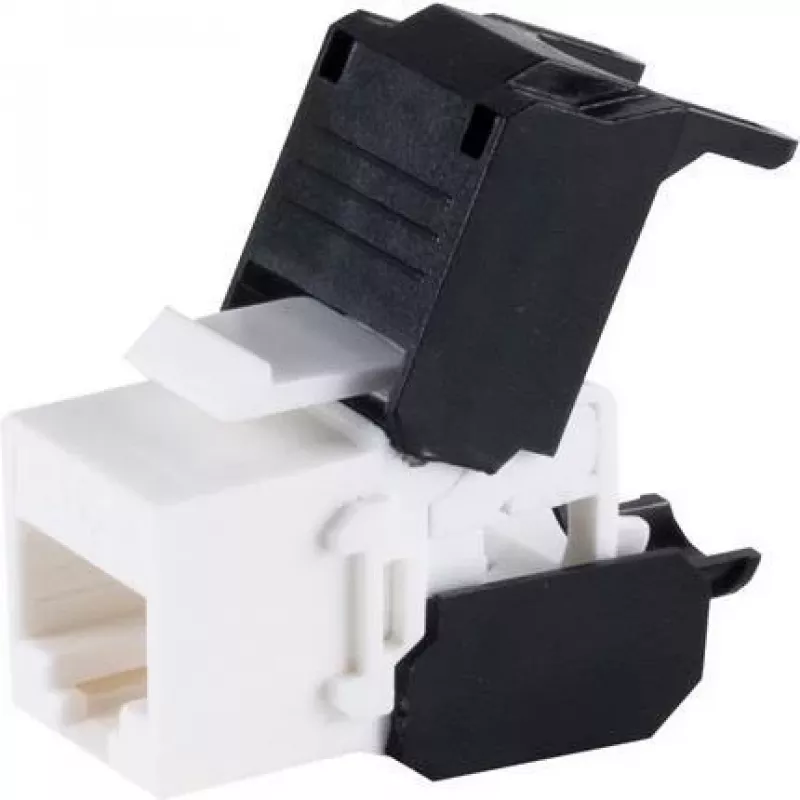

S CONN MAXIMUM CONNECTIVITY Cat.6A UTP gereedschapsvrije Keystone Jack-module, RJ45 bus, zwart (08-10038)

Network installers and IT technicians working on high-speed Ethernet deployments will appreciate this Cat.6A UTP keystone jack. It terminates solid or stranded conductors from AWG 22 to 26 without any punch-down tool, thanks to its color-coded tool-free IDC mechanism. The module snaps into standard keystone wall plates, patch panels, and surface-mount boxes, providing a clean RJ45 female port for 10 Gigabit Ethernet links up to 500 MHz.

Key specifications

• Performance: Cat.6A (Class EA), supports 10GBASE-T
• Shielding: UTP (unshielded twisted pair)
• Termination: tool-free IDC, T568A/T568B wiring
• Conductor gauge: AWG 22-26 solid and stranded
• Housing: flame-retardant PC/ABS, UL 94V-0
• Contacts: phosphor bronze, gold-plated (50µ")
• Mating cycles: RJ45 >750, IDC >200
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -10°C to +60°C
• Colour: black

Why choose it

Tool-free termination speeds up installation and reduces hand fatigue on large projects. The Cat.6A rating future-proofs your cabling for 10 Gigabit Ethernet, while the robust gold-plated contacts ensure reliable connections over hundreds of mating cycles. PoE++ support makes it suitable for powering devices like IP cameras and wireless access points.

Ideal use cases

• Office network upgrades to 10GBASE-T
• Data centre patching where UTP is preferred
• PoE-powered device connectivity (up to 90W)
• Retrofit installations in existing wall plates

Good to know

The module is designed for standard keystone openings and works with most faceplates and patch panels. Its flame-retardant housing meets UL 94V-0 for added safety in structured cabling environments.
