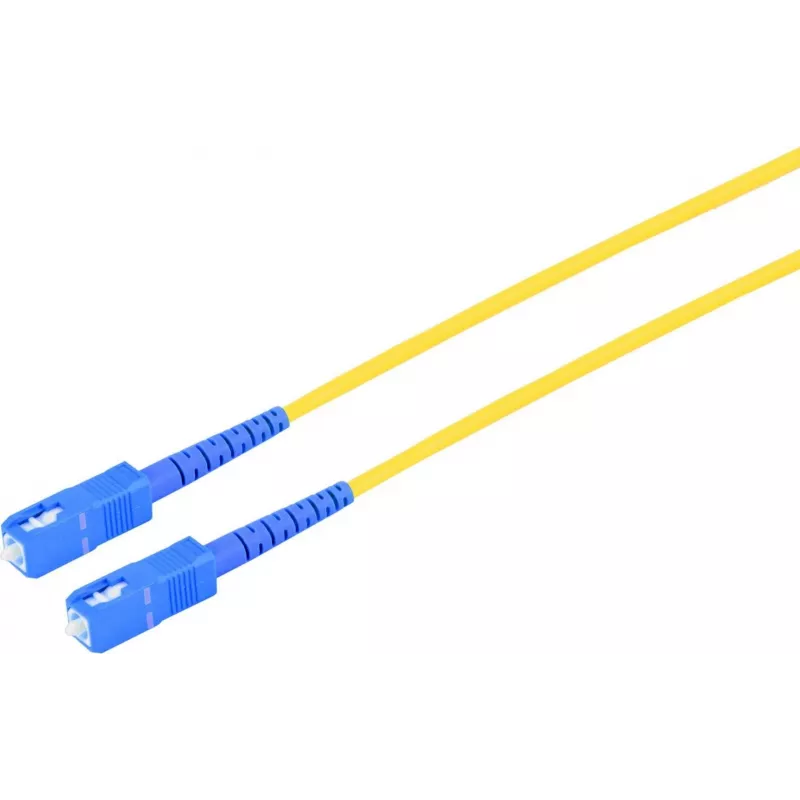

S/CONN maximum connectivity glasvezel SX patchkabel SC/SC UPC 9/125µ OS2 geel 3m (07-106042)

Single-mode OS2 fibre patch cable with SC/UPC connectors on both ends, delivering low insertion loss and high return loss for reliable 1310 nm and 1550 nm transmission over 3 metres. The yellow LSZH jacket ensures safety in dense installations.

Advantages

UPC polished connectors provide excellent return loss performance, while the LSZH jacket emits low smoke and zero halogen in case of fire. The simplex construction maintains signal integrity for single-fibre links.

Suitable for

• Data centre interconnects
• Telecommunications backbone links
• FTTx deployments
• LAN backbone connections

Key specifications

• Fibre type: OS2 single-mode, 9/125 µm
• Connectors: SC/UPC to SC/UPC
• Length: 3 m
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Jacket: LSZH, yellow

Recommendations

Ideal for high-performance single-mode links where low attenuation and reliable connections are critical.
