SATA-kabel DeLOCK 60145 0,15 m

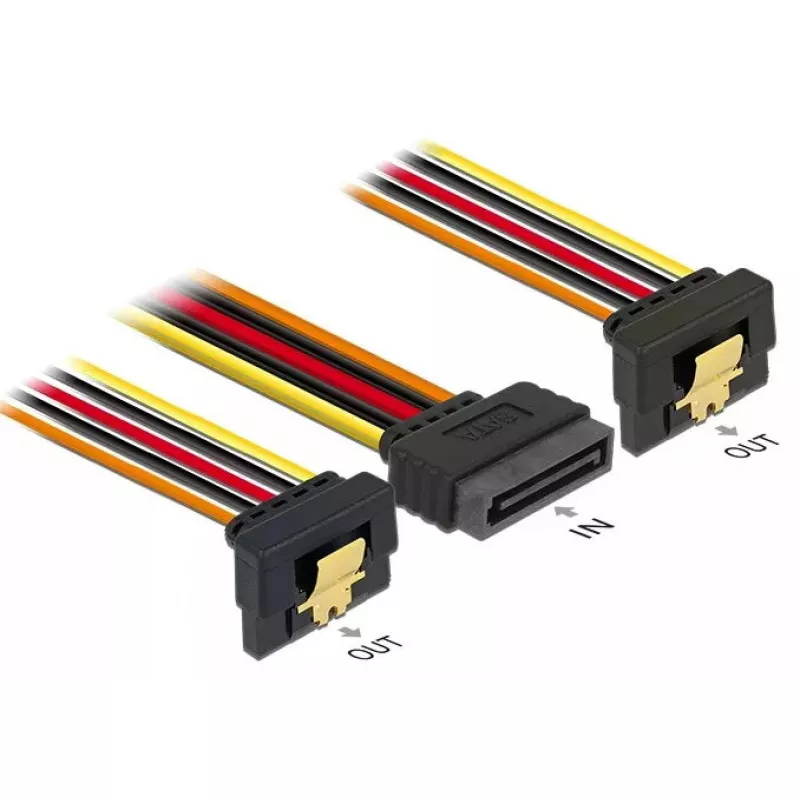

The DeLOCK 60145 cable is a short 0.15 m SATA power splitter that allows one SATA 15-pin power connector from a power supply to feed two SATA devices. It uses a SATA 15-pin power plug with latching function and two SATA 15-pin power receptacles with gold-coloured metal clips to ensure secure connections. The cable is built with five power wires (12 V, GND, 5 V, 3.3 V) and 20 AWG gauge for reliable power delivery in compact PC builds.

Advantages

The compact 0.15 m length is suitable for tight internal layouts, reducing cable clutter. Metal clips on the receptacles and a latching plug provide a firm mechanical connection. The five-wire design supplies all standard SATA power voltages (12 V, 5 V, 3.3 V) and the 20 AWG conductors support stable current flow to connected drives.

Suitable for

• Connecting two SATA drives (HDD/SSD) to a single SATA power output
• Small form-factor or compact PC cases where short cables are required
• Systems requiring extra SATA power connectors without additional adapters

Key specifications

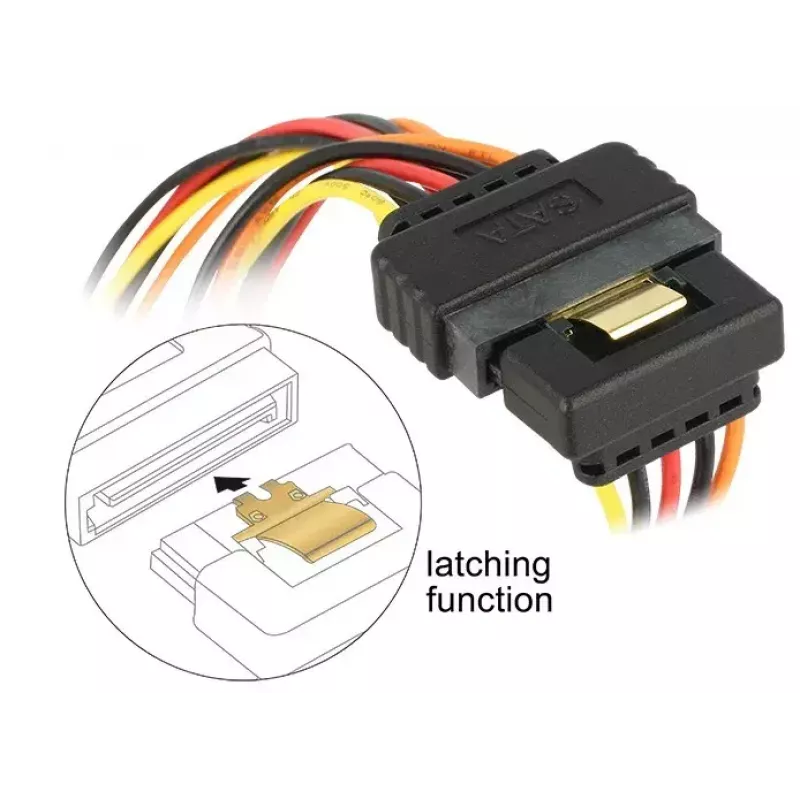

• Connector 1: 1 × SATA 15-pin power plug with latching function
• Connector 2: 2 × SATA 15-pin power receptacles with gold-coloured metal clips
• Wire configuration: 5 power wires (yellow = 12 V, black = GND, red = 5 V, orange = 3.3 V)
• Cable gauge: 20 AWG
• Length without connectors: approx. 15 cm (0.15 m)
• Compatible with SATA I power interfaces
• Product colours: black, orange, red, yellow

How to use

Insert the SATA 15-pin power plug into a free SATA power connector on the power supply until the latch clicks. Then connect the two SATA 15-pin receptacles to the power ports of your SATA devices. Ensure the metal clips engage to secure each connection. Route the cable to avoid strain on connectors and components.

Recommendations

Use this splitter only for standard SATA power devices and avoid overloading the single power source; check your power supply’s available current for the connected devices to prevent undervoltage or instability.
