SATA PCI Express x1-kaart DeLOCK 90010 low-profile-formfactor

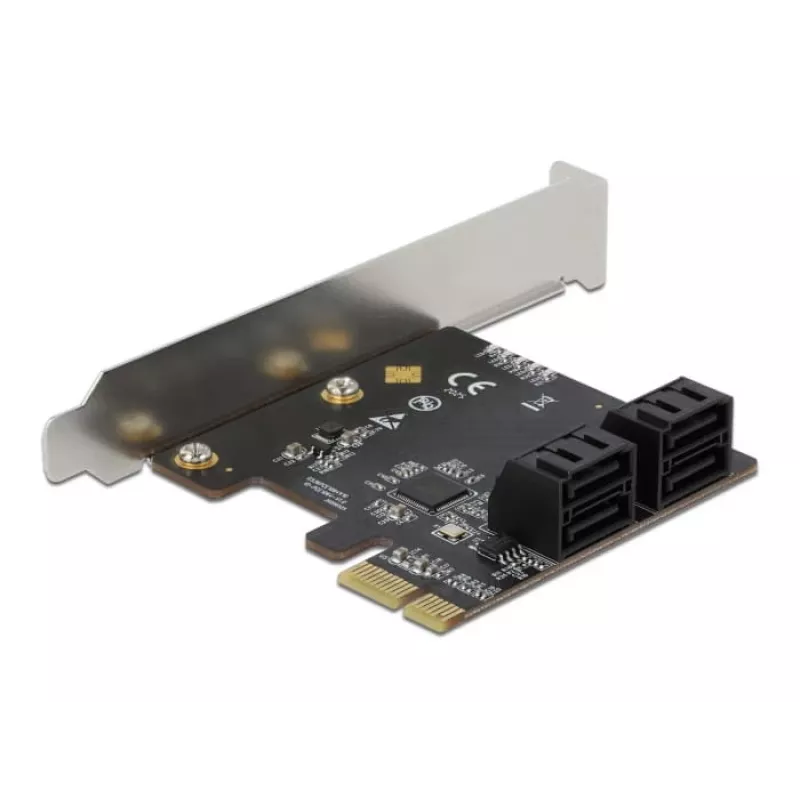

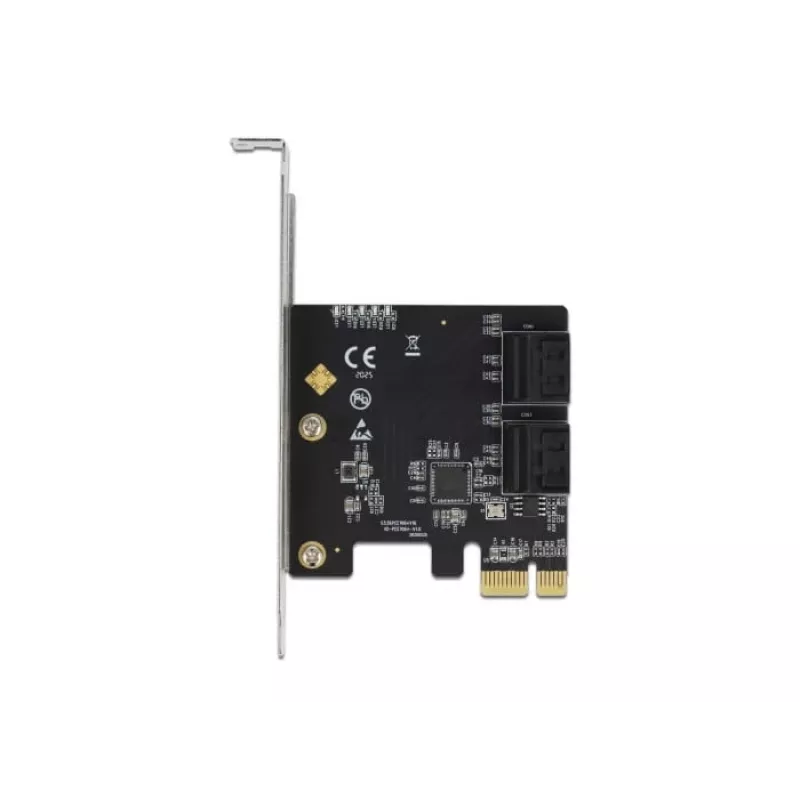

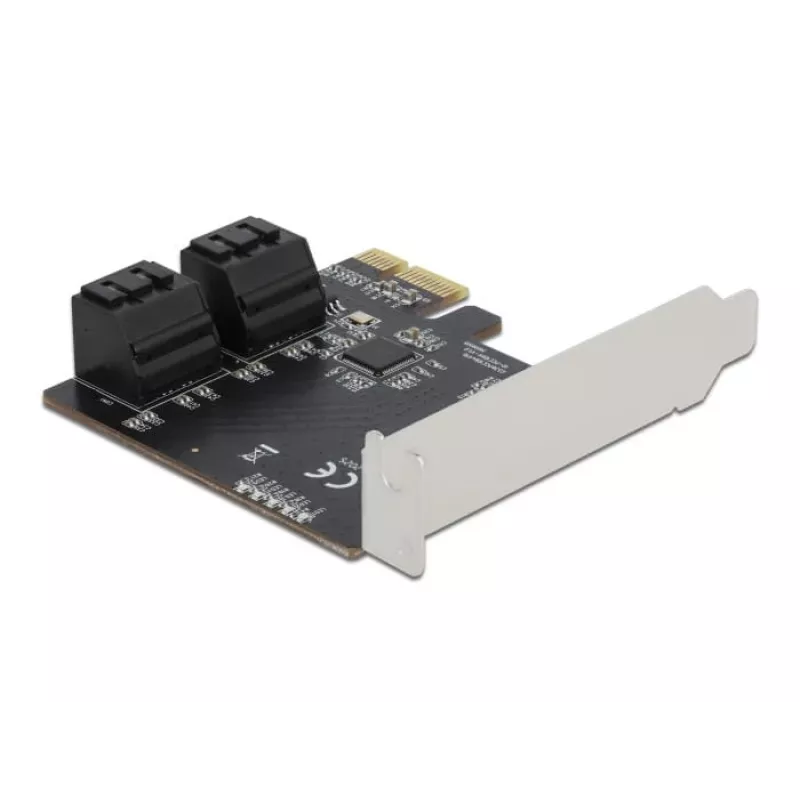

The DELOCK SATA PCI Express x1 Card (model 90010) expands a PC with four internal SATA ports in a low-profile form factor. It connects via a PCIe x1 slot and provides four SATA outputs for attaching storage devices such as SSDs, hard drives or optical drives, increasing the system's available internal storage interfaces.

Advantages

The card offers four SATA ports in a compact low-profile design suitable for small form factor systems. It uses a PCIe x1 host interface for straightforward installation and enables connecting multiple internal SATA devices to one expansion slot. The product is compatible with common SATA drives and helps expand internal storage without replacing the motherboard.

Suitable for

• Adding multiple internal SATA drives (HDD/SSD) to a desktop or compact PC
• Expanding storage in small form factor or HTPC cases
• Connecting optical SATA drives (DVD/Blu‑ray) where extra ports are needed

Key specifications

• Brand: DELOCK
• Model: 90010
• Host interface: PCIe x1
• Output interface: 4 × internal SATA ports
• Form factor: Low profile
• EAN: 4043619900107

How to use

Install the card into an available PCIe x1 slot on the motherboard, secure it in the case, and connect internal SATA devices to the card's SATA ports using standard SATA data and power cables. After powering the system, confirm the drives are detected in the BIOS/UEFI or the operating system and install any required drivers if prompted.

Recommendations

Use only standard internal SATA data and power cables; ensure the system has adequate power and cooling for additional drives. For compact systems, verify clearance for the low-profile bracket and secure the card properly to avoid movement during transport.
