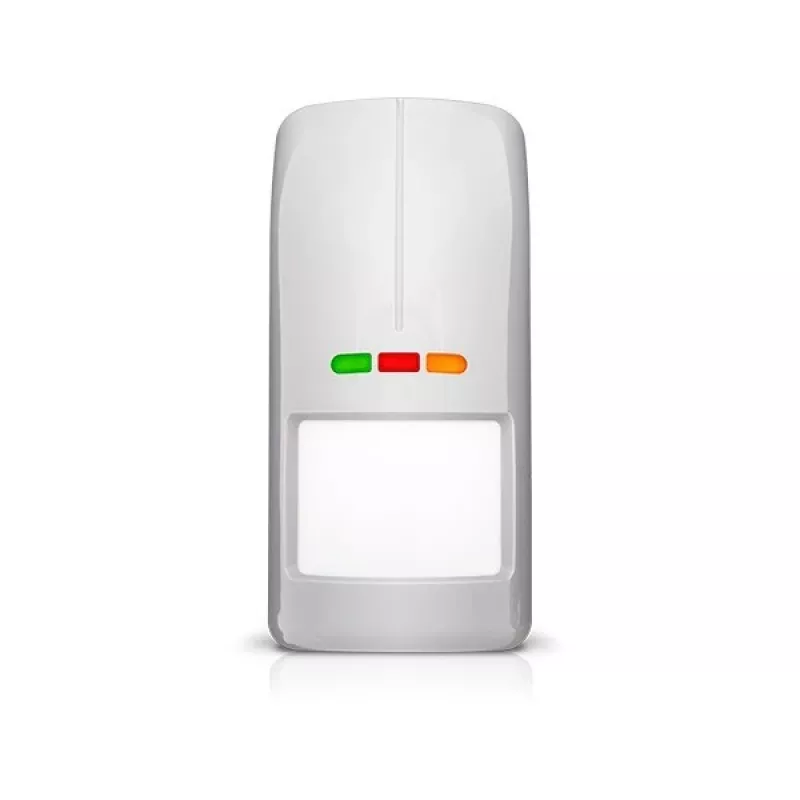

SATEL AOD-210 GY buiten dual-PIR/microgolf-bewegingsmelder met schemersensor - grijs

The SATEL AOD-210 GY is a professional-grade outdoor dual-technology motion detector designed for reliable intrusion detection in residential and commercial security systems. Combining passive infrared (PIR) and microwave sensors, it minimizes false alarms while ensuring high detection accuracy. The built-in twilight sensor allows automatic adjustment of sensitivity based on ambient light, making it ideal for perimeter protection. Compatible with SATEL ABAX 2 and ABAX wireless systems, this detector offers flexible integration and long-range communication up to 2000 m in open areas.

Advantages

Dual detection technology (PIR + microwave) provides superior false alarm immunity. Pet immunity up to 20 kg (selectable) reduces nuisance alarms from animals. Anti-masking feature detects attempts to block the sensor. Twilight sensor with adjustable threshold (approx. 1-200 lux) enables day/night operation. Long battery life of up to 2 years from a single CR123A lithium battery. IP54 weatherproof rating ensures reliable outdoor performance in harsh conditions.

Suitable for

• Outdoor perimeter security for homes and businesses
• Integration with SATEL ABAX 2 / ABAX wireless alarm systems
• Areas requiring pet-friendly motion detection
• Locations where false alarm reduction is critical

Key specifications

• Detection technology: Dual PIR + Microwave
• PIR detection range: Up to 15 m
• Microwave detection range: Up to 15 m
• Detection angle: 90°
• Microwave frequency: 24.125 GHz
• Wireless frequency band: 868 MHz
• Wireless range (ABAX 2): Up to 2000 m (open area)
• Wireless range (ABAX): Up to 500 m (open area)
• Power supply: 1 x CR123A 3V lithium battery
• Typical battery life: Up to 2 years
• Operating temperature: -30°C to +55°C
• IP rating: IP54
• Anti-masking: Yes (microwave)
• Twilight sensor: Yes (adjustable, approx. 1-200 lux)
• Pet immunity: Yes (up to 20 kg, selectable)
• Tamper protection: Yes (against opening and removal)
• Recommended mounting height: 2.4 m
• Compatibility: SATEL ABAX 2 / ABAX wireless systems
• Colour: Grey

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m and ensure the area is free from obstructions. Use only SATEL ABAX 2 or ABAX controllers for wireless communication. Test the twilight sensor settings according to ambient light conditions. Replace the battery annually or as indicated by the system.
