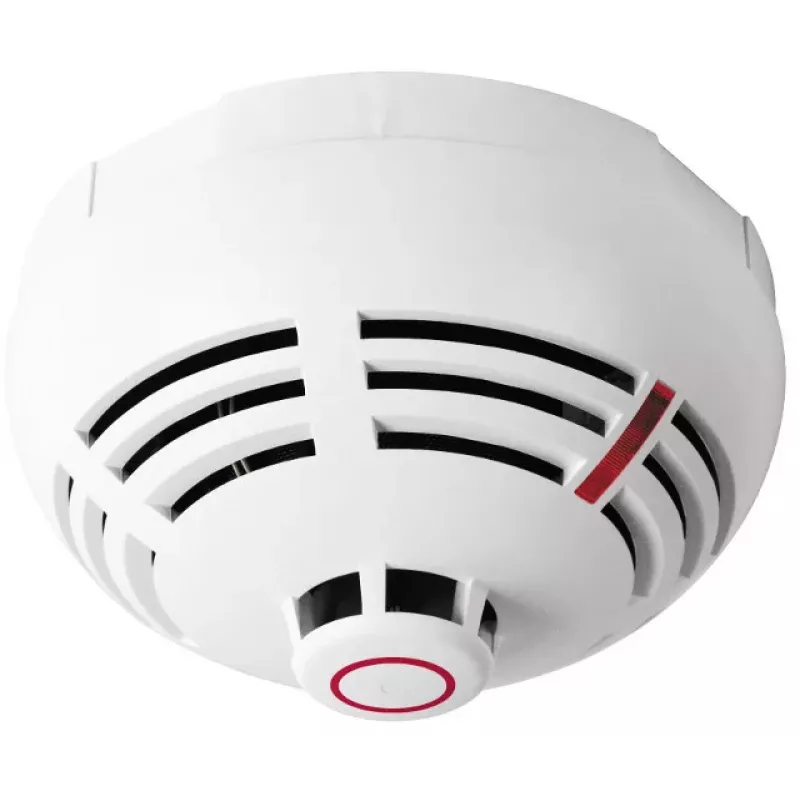

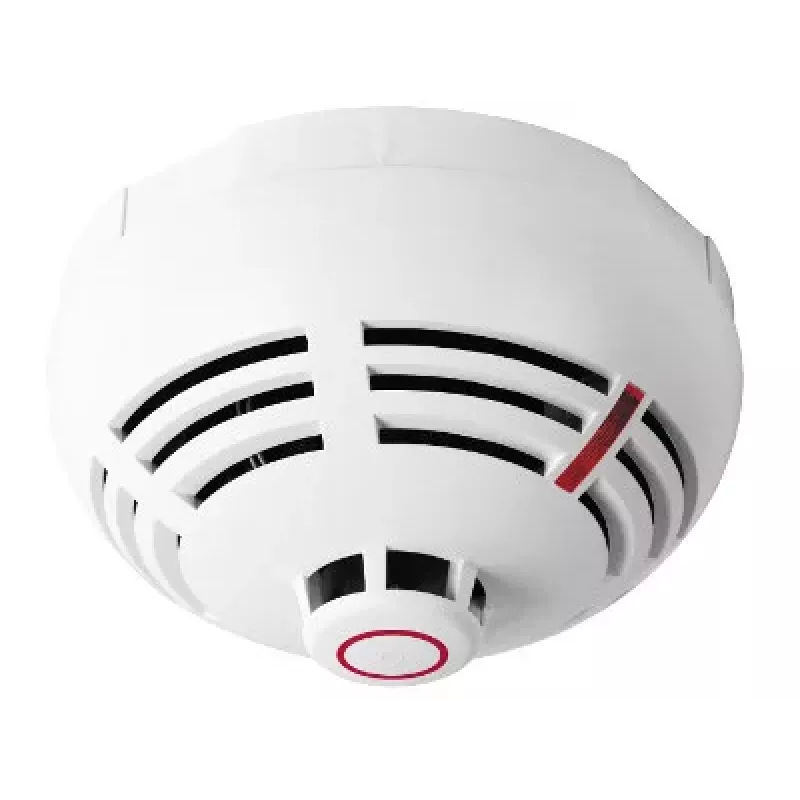

SATEL DCP-100 punt-warmtemelder klasse A1R

The SATEL DCP-100 is a point heat detector designed for indoor fire detection systems. It operates on the rate-of-rise and fixed temperature principle, with a nominal fixed temperature threshold of 58°C. The detector is compatible with Polon-Alfa POLON 4000 and IGNIS 1000/2000 series control panels, making it ideal for use in addressable fire alarm systems.

Advantages

Reliable detection with dual sensing technology (rate-of-rise and fixed temperature). Low standby current consumption of 50 µA ensures energy efficiency. Easy electronic addressing via the control panel simplifies installation and maintenance.

Suitable for

• Indoor environments requiring heat detection
• Integration with Polon-Alfa POLON 4000 and IGNIS 1000/2000 series control panels
• Use with G-40 detector base (sold separately)

Key specifications

• Detection Principle: Heat (Rate-of-Rise and Fixed Temperature)
• Detection Class: A1R
• Nominal Fixed Temperature Threshold: 58°C
• Operating Voltage Range: 10.5 V - 30 V DC
• Standby Current Consumption: 50 µA
• Alarm Current Consumption: 18 mA
• Operating Temperature Range: -25°C to +70°C
• Relative Humidity: 10% - 95% (non-condensing)
• Ingress Protection (IP) Rating: IP40
• Certification: EN 54-5:2000 + A1:2002
• Housing Material: ABS Plastic
• Colour: White
• Alarm Indication: Red LED
• Connection Type: 2-wire addressable loop
• Mounting Type: Requires separate detector base (e.g., G-40)
• Addressing Method: Electronic (via control panel)
• Reset Method: Power interruption

Recommendations

For optimal performance, use with a compatible detector base such as the G-40. Ensure proper installation by a qualified technician.
