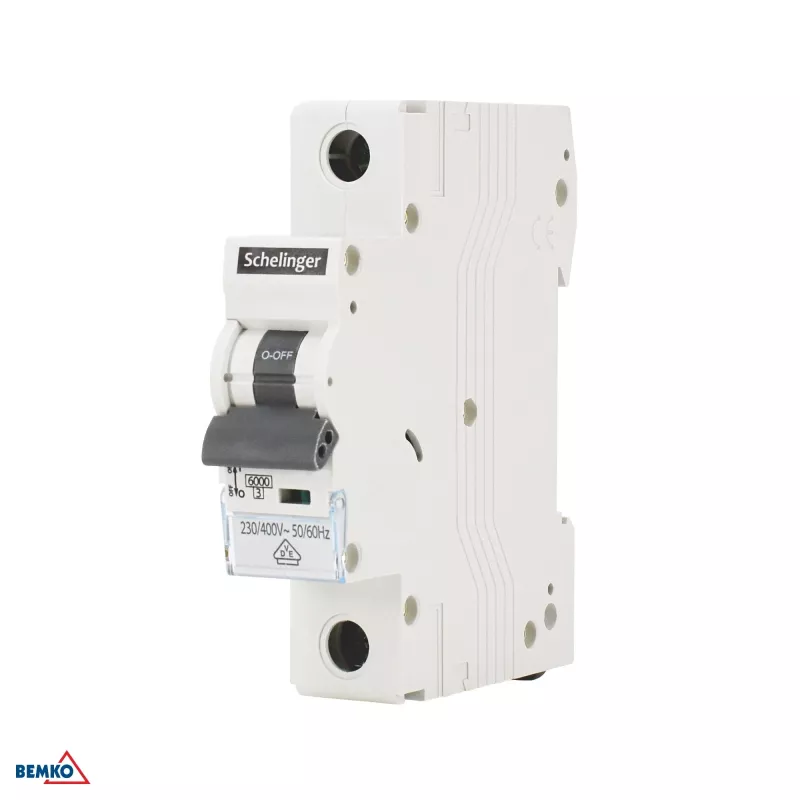

SCHELINGER A02-G8-1P-B50 installatieautomaat 1P B 50A 6kA VDE

The SCHELINGER A02-G8-1P-B50 stands out among miniature circuit breakers by combining a robust 6 kA breaking capacity with a precise B-curve trip characteristic, ensuring reliable protection for residential and light commercial installations. Its 50 A rating handles higher-current circuits without compromising safety, while VDE certification confirms compliance with stringent European standards.

Highlights

• 1-pole design for single-phase protection
• B-curve trip for general-purpose loads
• 6 kA short-circuit breaking capacity
• 50 A rated current for demanding circuits
• VDE and IEC/EN 60898-1 compliance
• DIN rail mounting for easy installation
• Clear trip indicator for quick status checks
• Wide terminal capacity up to 25 mm²

In daily use

Installed on a standard 35 mm DIN rail, this MCB provides dependable overload and short-circuit protection. The screw terminals accept conductors from 1 to 25 mm², reducing wiring effort. The trip indicator window shows at a glance whether the breaker has tripped, simplifying troubleshooting. With an operating temperature range of -25°C to +50°C, it performs reliably in various environments.

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current (In): 50 A
• Tripping curve: B
• Short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Standards: IEC/EN 60898-1, VDE
• Energy limiting class: 3
• Electrical endurance: ≥10,000 cycles
• Mechanical endurance: ≥20,000 cycles
• Terminal capacity: 1-25 mm²
• Protection degree: IP20 (terminals)
• Operating temperature: -25°C to +50°C
• Connection type: Screw terminals
• Trip indicator: Yes

Final note

For electricians and panel builders seeking a certified, high-current MCB with proven performance, the SCHELINGER A02-G8-1P-B50 delivers safety and convenience in a compact form factor.
