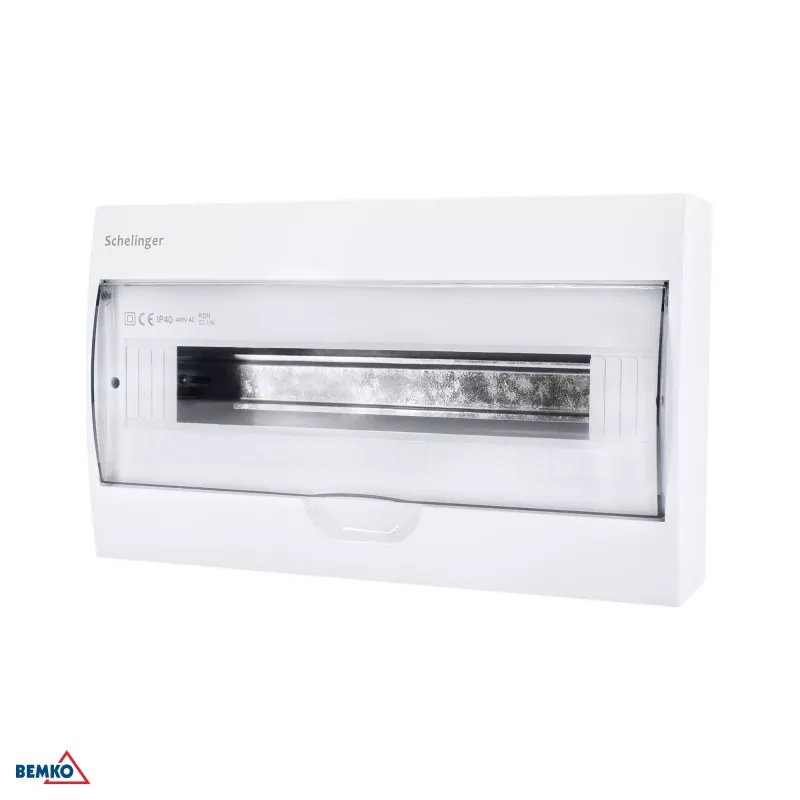

SCHELINGER A80-RDN-IP40-NPE-18P opbouwverdeler IP40 18N+18PE 1x18P

The SCHELINGER A80-RDN-IP40-NPE-18P is a high-quality surface-mounted distribution board designed for reliable electrical distribution in residential and commercial installations. With an IP40 protection rating, it offers protection against solid objects larger than 1mm, making it suitable for indoor use. This distribution board comes with 18 neutral and 18 protective earth terminals, providing ample connectivity for various circuits.

Advantages

This distribution board features a transparent door for easy visual inspection of the installed components. The high-quality ABS plastic housing ensures durability and long service life. The included DIN rail simplifies the installation of modular devices such as circuit breakers and RCDs. The board complies with EN 60439-3 and EN 62208 standards, ensuring safety and performance.

Suitable for

• Residential electrical distribution systems
• Commercial buildings requiring surface-mounted enclosures
• Installations needing up to 18 modules in a single row
• Applications where IP40 protection is sufficient

Key specifications

• Mounting Type: Surface-mounted
• IP Protection Rating: IP40
• Number of Modules: 18
• Number of Rows: 1
• Terminal Blocks: 18x Neutral, 18x Protective Earth
• Material: High-quality ABS Plastic
• Door Type: Transparent
• Colour: White/Grey
• Glow Wire Test: 650 °C
• Rated Insulation Voltage: 500 V
• Operating Temperature: -25°C to +60°C
• Standards Compliance: EN 60439-3, EN 62208
• Impact Resistance: IK07
• DIN Rail: Included

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician. Use appropriate cable glands for cable entry to maintain the IP40 rating. Regularly inspect the board for any signs of damage or wear.
