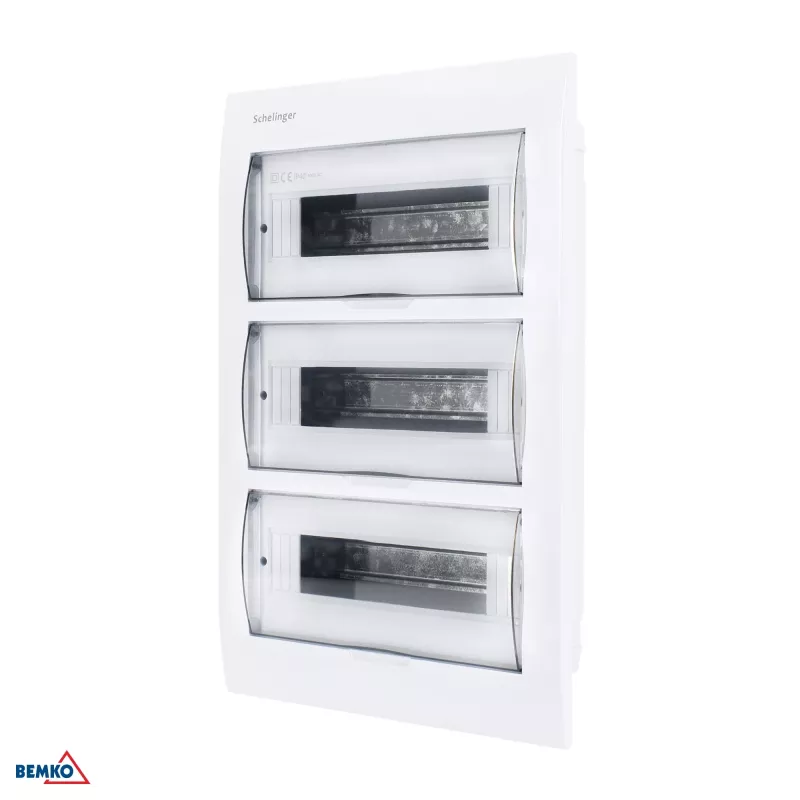

SCHELINGER A80-RDP-IP40-NPE-36P inbouwverdeler IP40 36N+36PE 3x12P

The SCHELINGER A80-RDP-IP40-NPE-36P is a high-quality flush-mounted distribution board designed for reliable electrical distribution in residential and commercial installations. With IP40 protection, 36 neutral and 36 protective earth terminals, and a 3-row 12-module configuration, it offers ample capacity and safety for various applications.

Advantages

This distribution board features a transparent tinted door with 180° opening for easy access, metal DIN rails, and pre-punched knockouts for cable entry. The reversible door allows flexible installation, while the IK07 impact protection and 650°C glow wire test ensure durability and safety.

Suitable for

• Flush-mounted electrical distribution in residential buildings
• Commercial and light industrial electrical systems
• Installations requiring up to 63A rated current and 400V insulation voltage

Key specifications

• Installation Type: Flush-mounted (Recessed)
• Number of Modules: 36 (3 rows x 12 modules)
• Ingress Protection: IP40
• Material: High-quality ABS Plastic
• Colour: White (RAL 9003)
• Terminal Blocks: 36 Neutral, 36 Protective Earth
• Door: Transparent, Tinted, Reversible, 180° opening
• Glow Wire Test: 650°C
• Impact Protection: IK07
• Rated Insulation Voltage: 400V AC
• Rated Current: Up to 63A
• Operating Temperature: -5°C to +60°C
• Compliance: PN-EN 60670-24, PN-EN 62208
• DIN Rail: Metal DIN rails included
• Cable Entry: Pre-punched knockouts

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is designed for indoor use only. Verify local regulations for compliance.
