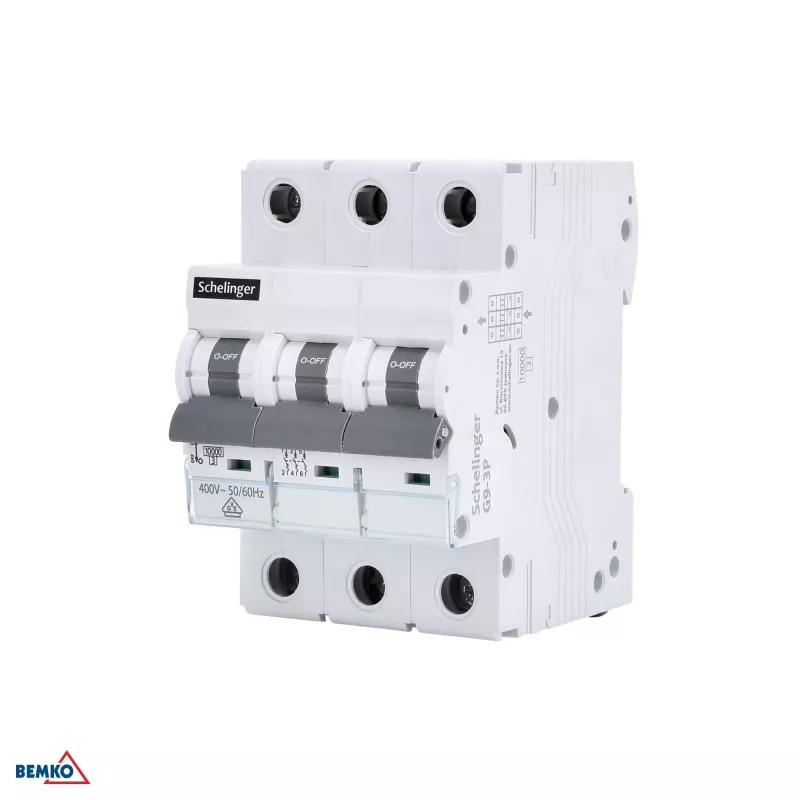

SCHELINGER installatieautomaat 10kA 3P B 16A VDE

The SCHELINGER A02-G9-3P-B16 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, 16A rated current, and type B tripping curve, it ensures safe operation for residential and commercial applications. Compliant with VDE and EN 60898-1 standards, this MCB offers a breaking capacity of 10kA, making it suitable for systems with high short-circuit currents.

Advantages

This MCB provides robust protection against overloads and short circuits, with a compact design for easy DIN rail mounting. Its energy limiting class 3 minimizes stress on downstream equipment, while the IP20 rated terminals ensure safe installation. The long electrical and mechanical life guarantees durability and reliability.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Lighting and socket circuits

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole (3P)
• Rated Current: 16 A
• Tripping Curve: Type B
• Short-circuit Breaking Capacity: 10 kA
• Rated Voltage (AC): 230/400 V
• Frequency: 50/60 Hz
• Standard Compliance: VDE, EN 60898-1
• Mounting Type: DIN Rail (35mm)
• Energy Limiting Class: 3
• Protection Degree: IP20 (Terminals)
• Electrical Life: ≥ 10,000 cycles
• Mechanical Life: ≥ 20,000 cycles
• Terminal Capacity (Solid): 1-25 mm²
• Terminal Capacity (Flexible): 1-16 mm²
• Ambient Operating Temperature: -25°C to +55°C
• Overvoltage Category: III
• Pollution Degree: 2

Recommendations

For optimal protection, pair this MCB with a compatible residual current device (RCD) in your distribution board. Always follow local electrical codes and regulations during installation.
