SCHELINGER installatieautomaat 6kA 3P B 32A VDE

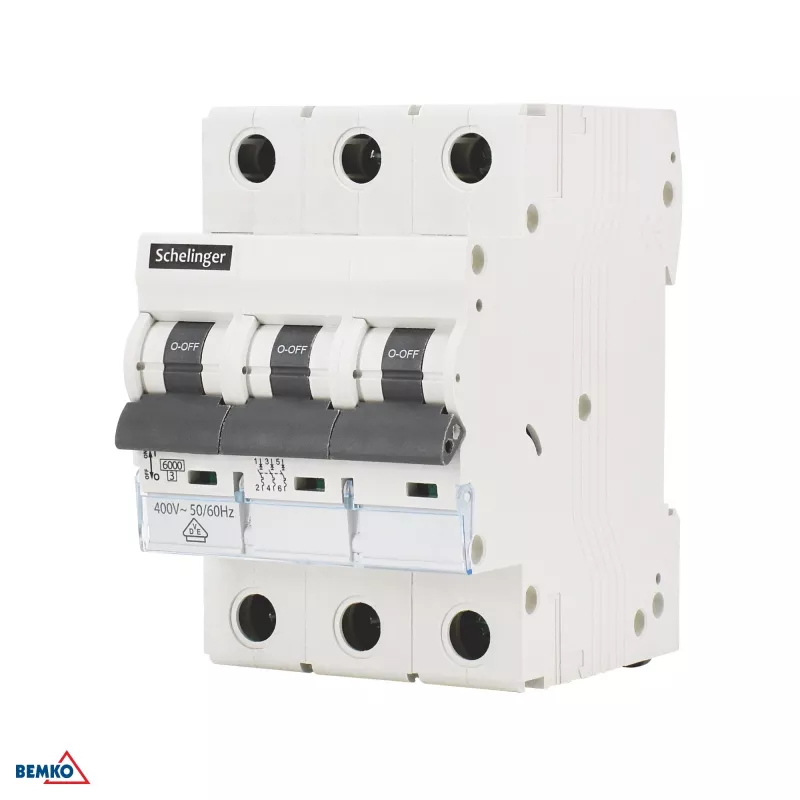

The SCHELINGER A02-G8-3P-B32 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential, commercial, and industrial electrical installations. With a 3-pole configuration, B tripping curve, and 32A rated current, it ensures safe and efficient operation. Certified to VDE and CE standards, this MCB offers robust performance and durability.

Advantages

This MCB provides precise protection against overloads and short circuits, with a breaking capacity of 6kA. Its compact design fits standard 35mm DIN rails, making installation quick and easy. The B curve is ideal for resistive and lighting loads, minimizing nuisance tripping. VDE certification guarantees compliance with stringent safety requirements.

Suitable for

• Overcurrent protection in distribution boards
• Lighting circuits and resistive loads
• Commercial and industrial electrical systems
• Residential electrical panels

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current: 32 A
• Tripping Curve: B
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Standard Compliance: EN 60898-1
• Mounting Type: DIN Rail (35mm)
• Terminal Capacity (Solid Conductor): Up to 25 mm²
• Terminal Capacity (Flexible Conductor): Up to 16 mm²
• Protection Degree (Terminals): IP20
• Protection Degree (Front): IP40
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Operating Temperature Range: -5°C to +40°C
• Certification: VDE, CE
• Energy Limiting Class: 3
• Rated Impulse Withstand Voltage (Uimp): 4 kV

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician. Always verify that the rated current and breaking capacity match the circuit requirements. This product is suitable for use in environments with normal pollution levels.
