SCHELINGER verdeelblok 22 klemmen 2x11 (7x5,3mm + 2x7,5mm + 2x9mm)

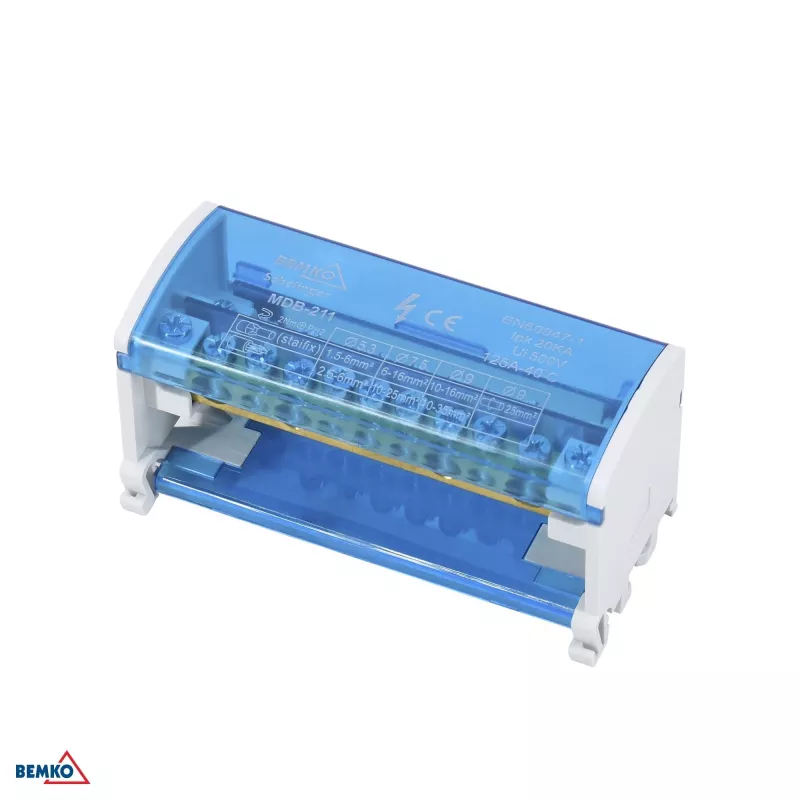

The SCHELINGER A18-MDB-211 distribution block is a high-quality terminal block designed for reliable power distribution in electrical installations. With 22 terminals arranged in two rows of 11, it offers versatile connectivity for various wire sizes. Manufactured from durable materials, this block ensures safe and efficient current distribution up to 100 A.

Advantages

This distribution block features a robust polyamide insulation housing and brass conductors, providing excellent electrical conductivity and long-lasting performance. The clear terminal configuration simplifies wiring, and the compact design saves space on DIN rails or screw mounts. Suitable for industrial and commercial applications, it meets high safety standards with an IP20 protection rating.

Suitable for

• Electrical distribution panels
• Control cabinets
• Industrial automation systems
• Power supply distribution

Key specifications

• Number of terminals: 22 (2 rows of 11)
• Terminal diameters: 14 small (5.3 mm), 4 medium (7.5 mm), 4 large (9 mm)
• Wire cross-section ranges: Small 1.5-16 mm², Medium 10-35 mm², Large 16-50 mm²
• Rated current: 100 A
• Rated voltage: 500 V
• Conductor material: Brass
• Insulation material: Polyamide (PA)
• Mounting type: DIN rail / screw mount
• Number of poles: 1
• Colour: Grey
• Protection rating: IP20

Recommendations

For optimal performance, ensure proper wire stripping and secure tightening of terminals. Use appropriate cable lugs for larger wire sizes. This distribution block is ideal for new installations or upgrades in electrical distribution systems.
