Scheppach HM140L 305 mm afkort- en verstekzaag

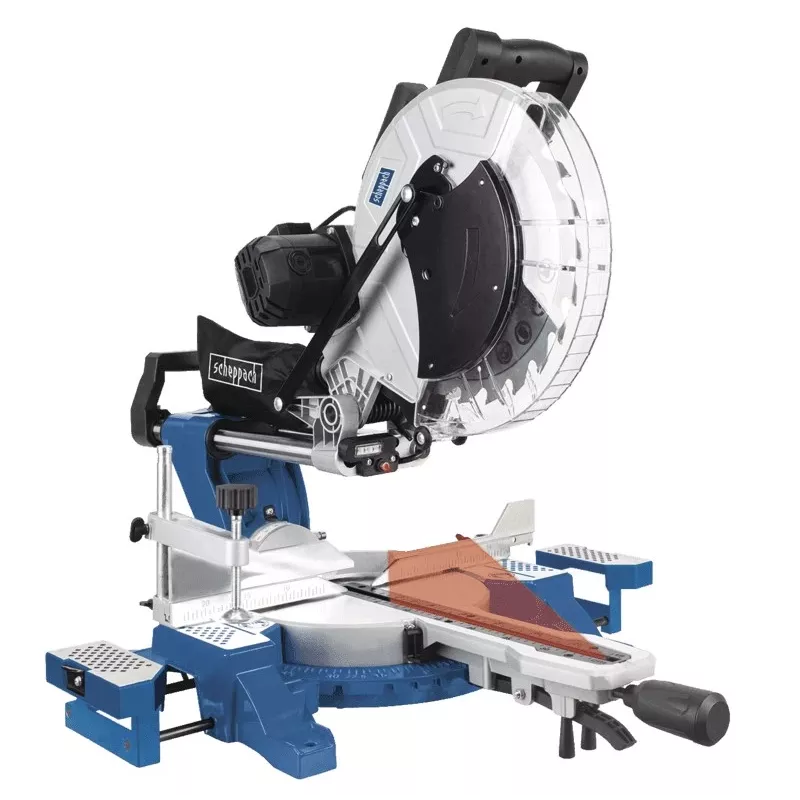

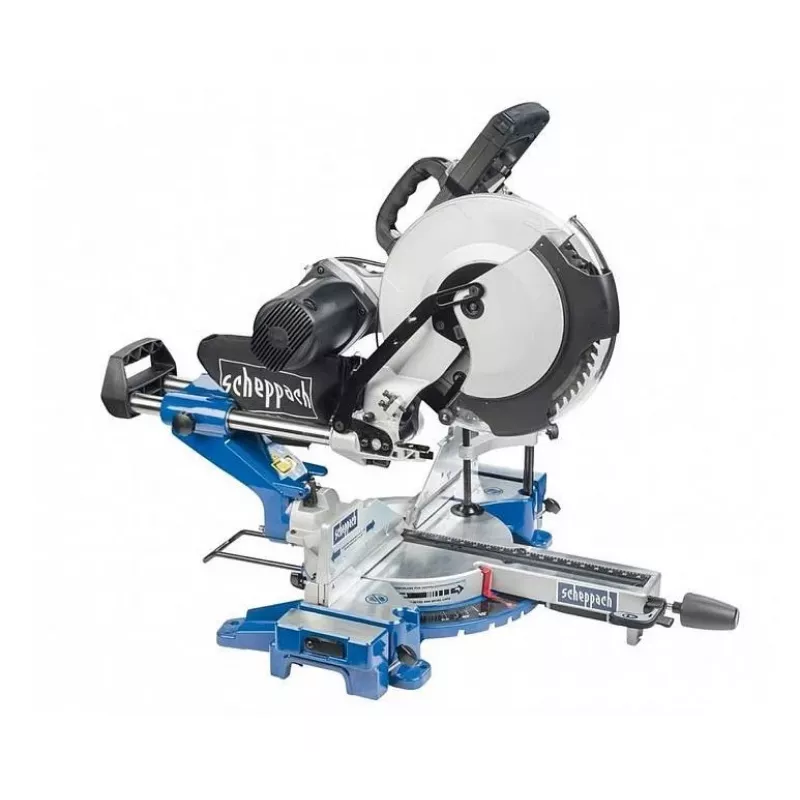

The Scheppach HM140L sliding compound mitre saw is a double-bevel saw designed for precision woodworking. Equipped with a large 305 mm HW saw blade, it delivers a maximum cutting height of 105 mm and a cutting width of 330 mm. The saw is driven by a 2000 W motor with a maximum no-load speed of 7000 RPM and features a sliding design and turntable to handle wider workpieces and angled cuts. A built-in laser aids accurate alignment during cutting.

Advantages

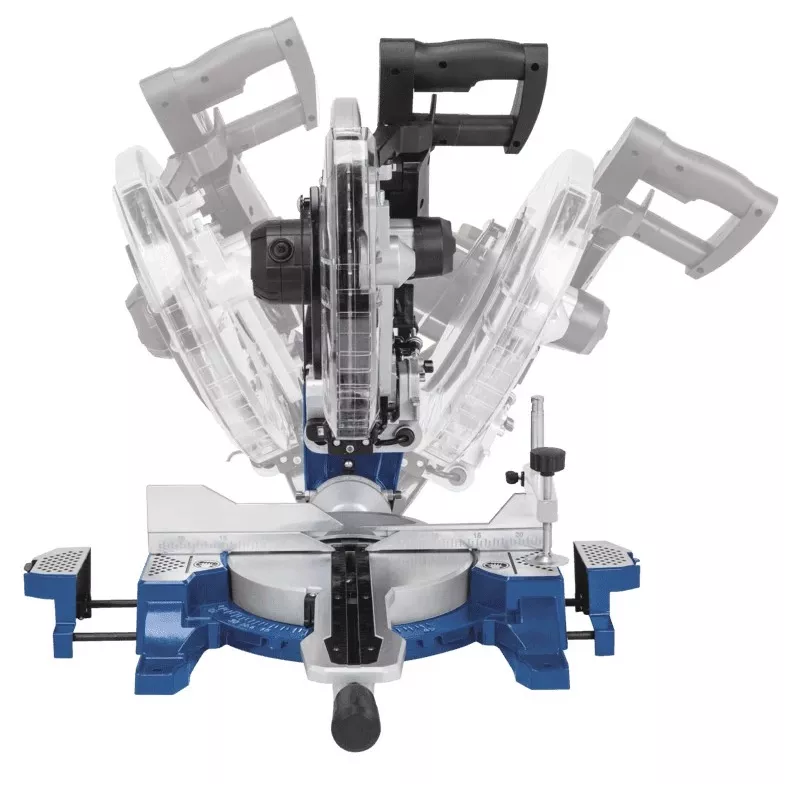

The Scheppach HM140L combines a high-power 2000 W motor with a 305 mm carbide-tipped blade to provide clean cuts in both softwood and hardwood. Its sliding mechanism and turntable expand cutting capacity while the double-bevel head allows bevel cuts in both directions without repositioning the workpiece. Compact dimensions (590 × 750 × 500 mm) make it suitable for workshop use where space is limited, and the integrated laser improves repeatable accuracy.

Suitable for

Key specifications

How to use

Secure the workpiece on the saw table and adjust the fence and turntable to the required angle. Set the blade height and use the sliding carriage to position the blade for wider cuts. Start the motor and let it reach full speed before making a steady, controlled cut. Use the built-in laser to align the cutting line and make incremental test cuts when working to final dimensions. Follow the manufacturer's safety instructions and wear appropriate personal protective equipment.

Recommendations

For best results, use sharp carbide-tipped 305 mm blades matched to the material (fine-tooth for finished work, standard for general timber). Allow the motor to reach full speed before cutting, clamp small or narrow pieces, and make progressive passes on thicker stock. Regularly check and replace worn blades and perform routine maintenance according to the manual to ensure consistent cutting accuracy.
