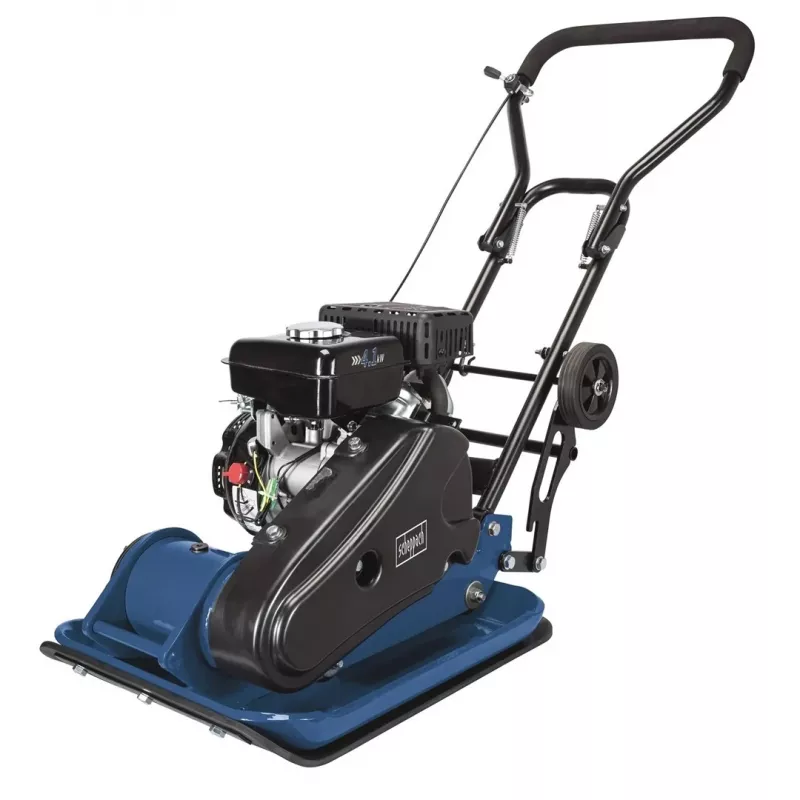

Scheppach HP2300S benzine trilplaat 6,5 PS 23 kN 550x440 mm

Compacting soil, gravel, and paving bases by hand is slow, uneven, and exhausting. The Scheppach HP2300S petrol plate compactor delivers 23 kN of centrifugal force to achieve a compaction depth of 30 cm, making quick work of driveways, paths, and foundations.

Who is it for

Contractors, landscapers, and serious DIYers who need reliable, high-performance compaction for earthworks, paving, and trench backfilling.

Main features

• 4-stroke petrol engine with 4.8 kW (6.5 HP) and 196 cm³ displacement
• 23 kN centrifugal force and 5500 vibrations per minute for deep compaction
• Large 550 x 440 mm steel base plate for efficient coverage
• Forward-only operation with folding handle for easy transport
• Includes rubber mat and transport wheels

Specifications

• Engine type: 4-stroke petrol
• Engine power: 4.8 kW (6.5 HP)
• Engine displacement: 196 cm³
• Centrifugal force: 23 kN
• Plate size (L x W): 550 x 440 mm
• Vibrations per minute: 5500 vpm
• Working speed: 15 m/min
• Compaction depth: 30 cm
• Fuel tank capacity: 3.6 L
• Oil tank capacity: 0.6 L
• Starting system: Recoil start
• Sound power level LWA: 108 dB(A)
• Vibration level (handle): < 2.5 m/s²
• Base plate material: Steel
• Operating type: Forward only
• Handle type: Folding handle
• Included accessories: Rubber mat, transport wheels

Tips

For best results, make multiple passes in overlapping rows and keep the engine at full throttle during compaction. Check oil and fuel levels before each use.
