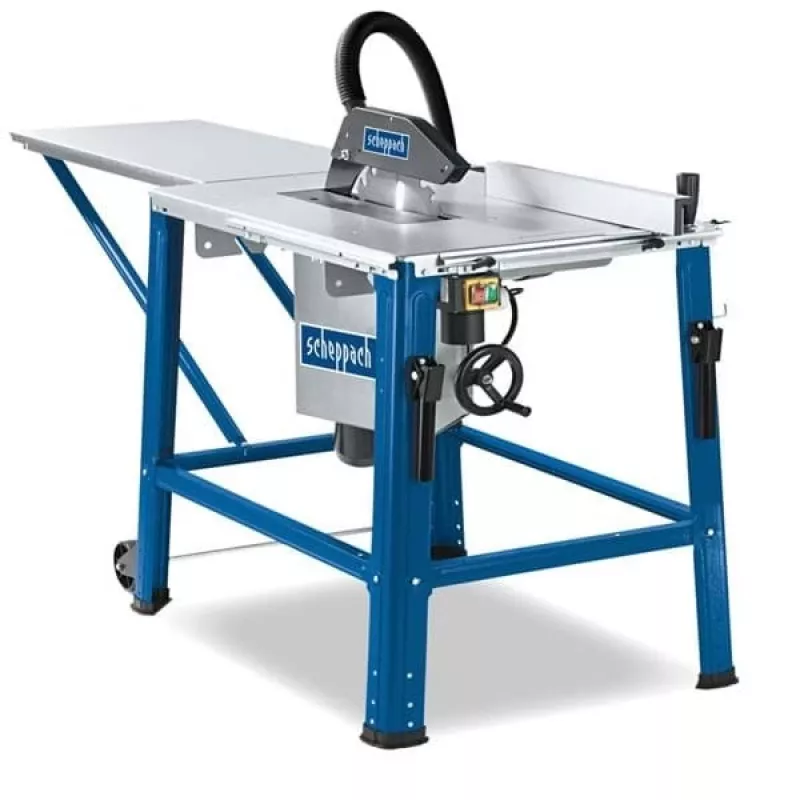

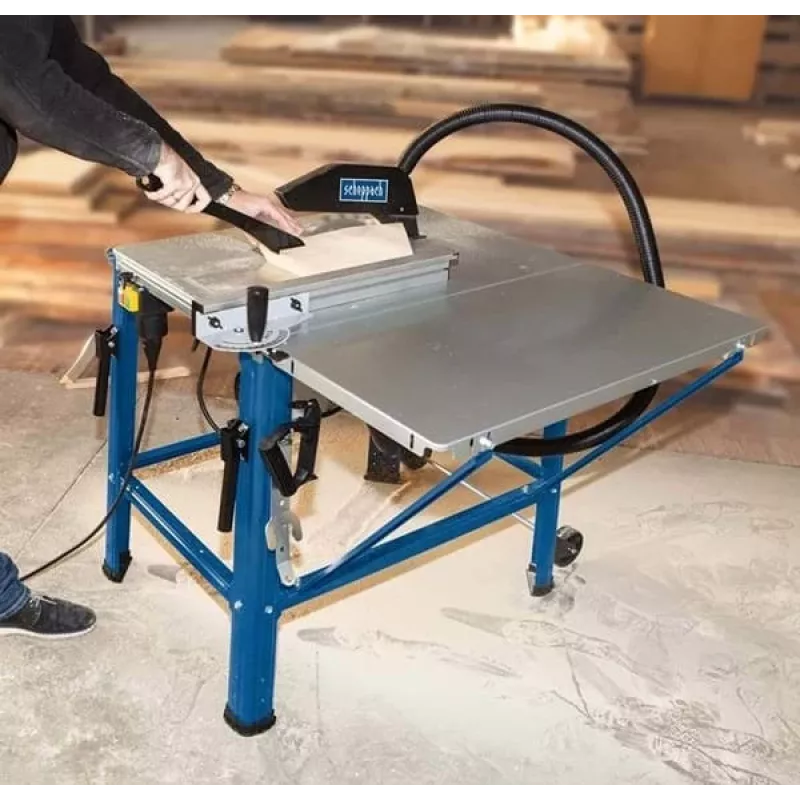

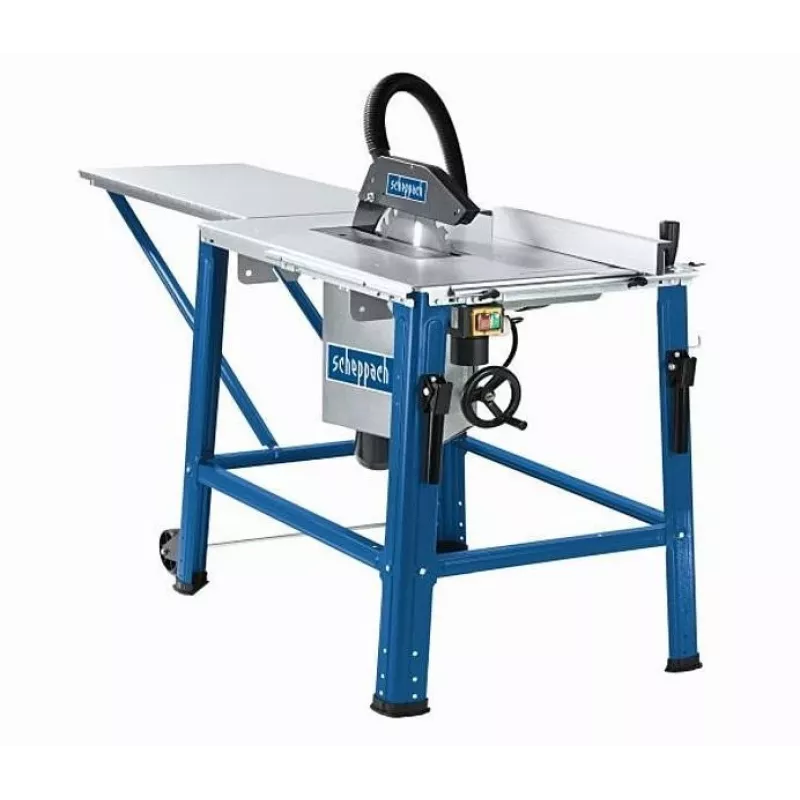

SCHEPPACH tafelcirkelzaag HS120O 315mm 2200W

The SCHEPPACH HS120O is a powerful wood table saw designed for precision cutting in professional workshops. With a 2200W induction motor and a 315mm TCT blade, it delivers clean cuts through hardwood and softwood. The integrated wheeled stand ensures mobility, while the large table with extensions provides ample support for large workpieces.

Advantages

High power output (2200W S6 40%) for demanding cuts. Induction motor for long life and low maintenance. Large cutting capacity: 83mm at 90° and 60mm at 45°. Dust extraction port (100mm) keeps workspace clean. Integrated wheeled stand for easy transport.

Suitable for

• Professional carpenters and woodworkers
• Workshop use for ripping and cross-cutting
• Cutting large panels with extensions

Key specifications

• Power: 2200 W (S6 40%)
• Blade diameter: 315 mm
• No-load speed: 2800 rpm
• Cutting depth @ 90°: 83 mm
• Cutting depth @ 45°: 60 mm
• Table size (LxW): 800 x 550 mm
• Rear extension: 800 x 400 mm
• Side extensions: 2 x 800 x 400 mm
• Working height: 800 mm
• Bevel range: 0° to 45°
• Dust port: 100 mm
• Voltage: 230 V / 50 Hz
• Protection class: IP54
• Stand: Integrated wheeled stand
• Includes: Rip fence, miter gauge, TCT saw blade

Recommendations

For optimal performance, use a sharp TCT blade and ensure the dust extraction system is connected. Always follow safety guidelines.
