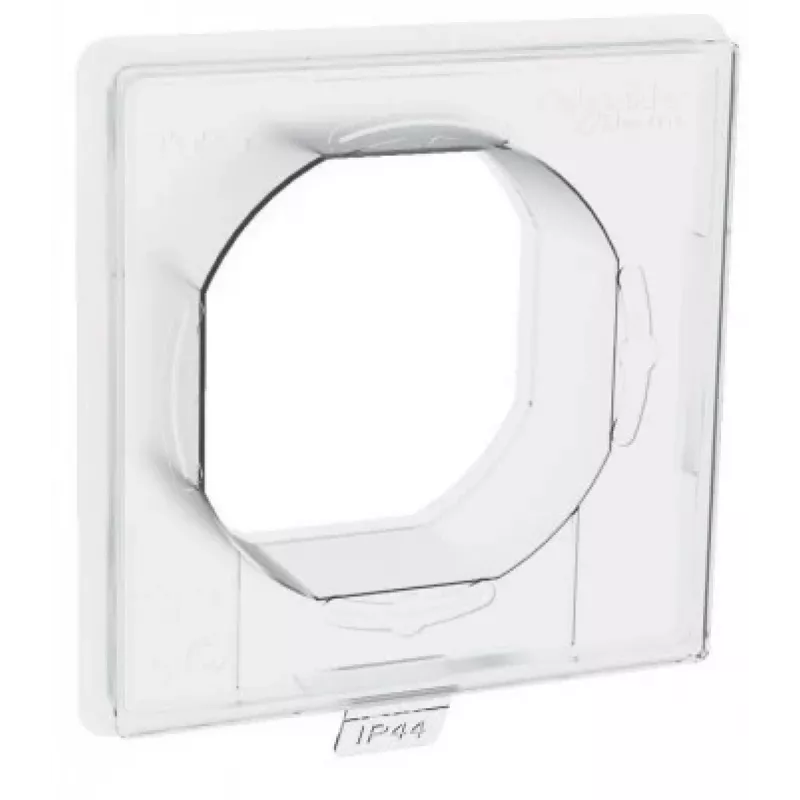

SCHNEIDER ELECTRIC BOX PROTECTION 1-G IP44, WIT

With an IP44 protection rating and IK07 impact resistance, this Schneider Electric surface mounting box shrugs off splashes, dust, and everyday knocks — indoors or out. The Mureva Styl 1-gang box in RAL 9003 white is a clean, halogen-free housing that keeps connections safe in bathrooms, kitchens, garages, and covered outdoor areas.

Overview

Engineered for surface mounting where flush installation isn't practical, this box accepts Mureva Styl mechanisms with 60 mm fixing centers. Its 40 mm internal depth leaves room for wiring and connectors, while two knock-out cable entries (top and bottom) simplify routing. The ABS construction is UV-resistant and withstands common chemicals like alcohol, bleach, and oil, so it stays white and intact over time.

What stands out

• IP44 protection against water splashes and solid objects ≥1 mm
• IK07 impact rating for resilience in high-traffic or workshop settings
• Halogen-free ABS with UV resistance — safe and long-lasting
• Glow wire tested to 850 °C per IEC 60695-2-11 for fire safety
• Compatible with the full Mureva Styl range for a consistent look

Technical details

• Number of gangs: 1
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: White (RAL 9003)
• Mounting type: Surface-mounted
• Internal depth: 40 mm
• Fixing centers: 60 mm
• Cable entries: 2 × knock-out (top/bottom)
• Dielectric strength: 2500 V
• Operating temperature: -5 °C to 40 °C
• Storage temperature: -25 °C to 55 °C
• Standards: IEC 60670-22
• Chemical resistance: Yes (alcohol, bleach, oil)

Our verdict

A compact, robust enclosure that does exactly what it should — protects connections without fuss. The IP44 rating and halogen-free build make it a reliable choice for damp or dusty environments, and the Mureva Styl compatibility keeps installations tidy.
