SCOT BT-2D inbouw uitgangsdrukknop roestvrij staal

The SCOT BT-2D is a flush-mounted exit button designed for access control systems. Crafted from durable stainless steel, this momentary switch provides reliable operation for door release applications. Its sleek silver finish and compact 86x86mm panel make it suitable for both residential and commercial environments.

Advantages

Robust stainless steel construction ensures long-lasting performance and resistance to wear. The flush-mount design offers a clean, professional appearance while minimizing protrusion. With a mechanical life of up to 500,000 operations, the BT-2D delivers exceptional durability for high-traffic areas.

Suitable for

• Access control exit points in offices, hotels, and public buildings
• Door release systems requiring momentary contact
• Integration with universal access control panels

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Material: Stainless Steel
• Contact Configuration: NO, NC, COM
• Switch Operation: Momentary
• Maximum Current: 3A
• Maximum Voltage: 36V DC
• Operating Temperature: -20°C to +50°C
• Mechanical Life: Up to 500,000 operations

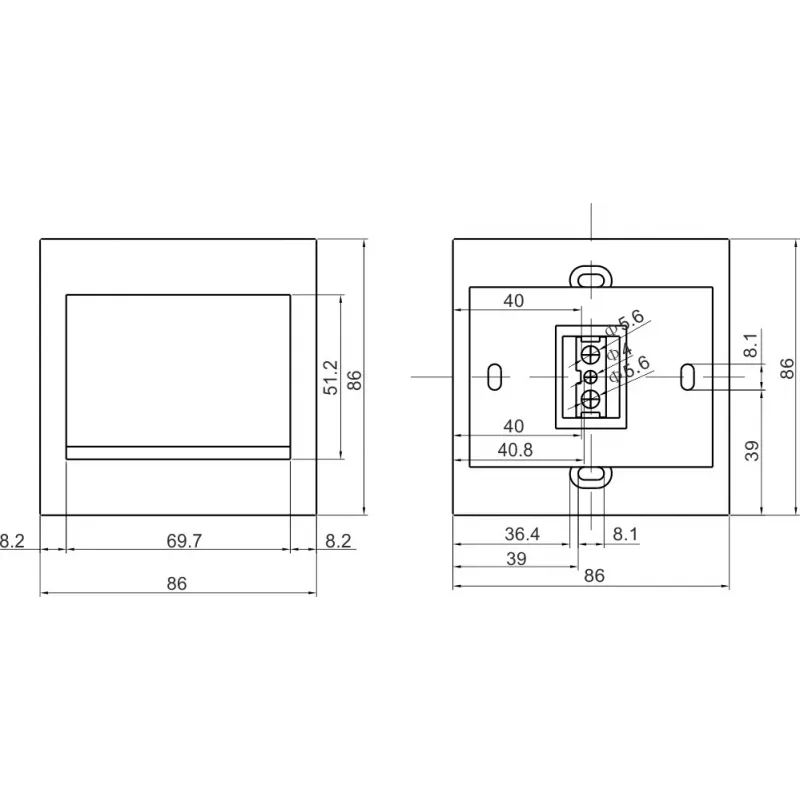

• Panel Dimensions: 86 x 86 mm
• Installation Depth: Approx. 25 mm
• Color: Silver
• Connection Method: Screw Terminals

Recommendations

For optimal performance, pair the BT-2D with a compatible access control system. Ensure proper wiring to NO/NC/COM terminals as per system requirements. The flush-mount design requires a standard 86x86mm back box for installation.
