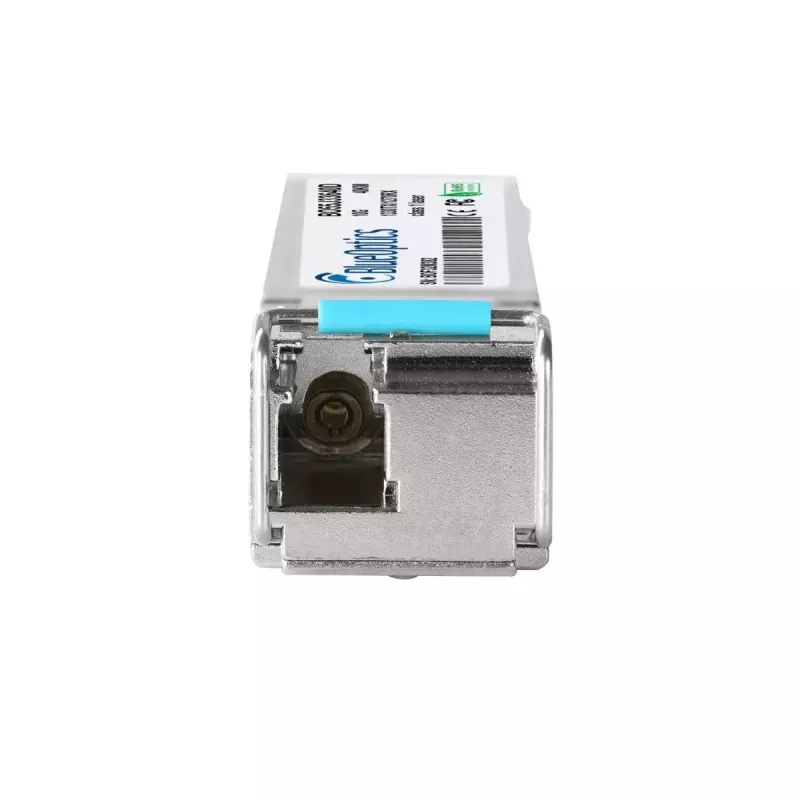

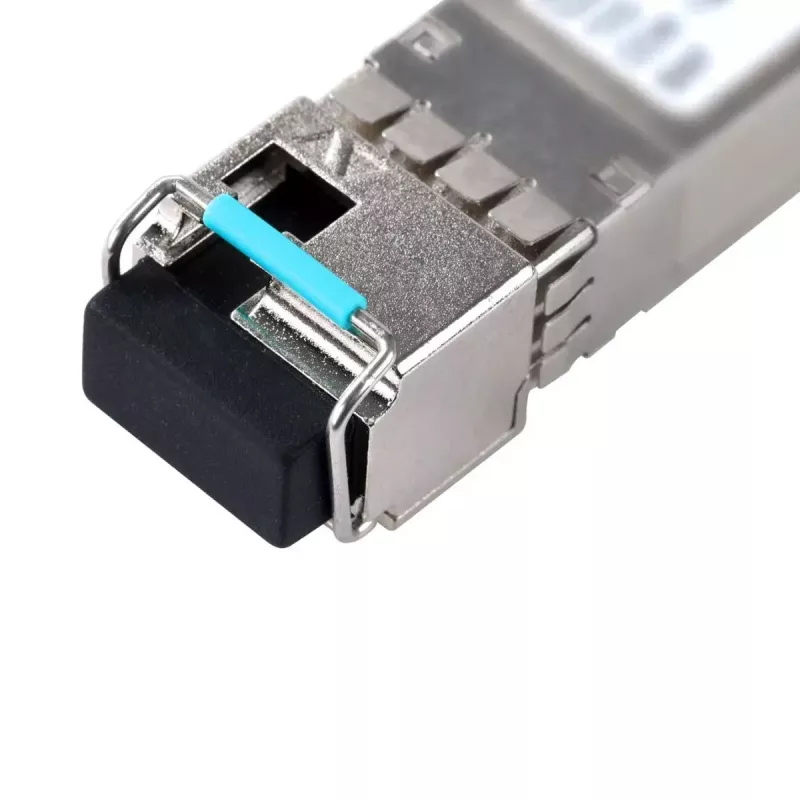

SFP+ transceivermodule BlueOptics 02311BJB-BO 10000 Mbit/s glasvezel

The BlueOptics 02311BJB-BO SFP+ transceiver module is a compact fiber optic module designed for 10 Gbit/s network links. Housed in a metal casing and weighing approximately 2 g, the module uses an SFP+ interface and operates at 3.3 V. It supports single-mode fiber connections with an LC simplex optical interface and is built to meet MSA form-factor standards for use in compatible networking equipment.

Advantages

This SFP+ transceiver provides a standardized, hot-pluggable 10 Gbit/s connection in a small metal housing, offering mechanical robustness and thermal stability. Compliance with SFP+ and MSA interfaces ensures broad compatibility with equipment that accepts SFP+ modules. Low weight and compact dimensions make it suitable for high-density installations, while the module’s construction supports long-term operation in typical networking environments.

Suitable for

• 10 Gbit/s uplinks between switches and routers
• Long-distance single-mode fiber links (carrier-class or enterprise backbones)
• Connections between data center equipment and storage arrays
• Replacement or expansion of SFP+ ports in MSA-compliant hardware

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical fiber type: single-mode fiber (LC simplex connector)
• Transmit/receive wavelengths: typical BX-D configuration with separate Tx and Rx wavelengths
• Power supply: 3.3 V operating voltage
• Housing: metal casing (silver colour)
• Weight: approximately 0.002 kg

How to use

Install the BlueOptics SFP+ transceiver into an SFP+ slot on compatible network equipment while the host device is powered on or off, following the hardware vendor’s hot-plug guidelines. Connect an LC simplex single-mode fiber patch cable to the module’s optical port, ensuring correct alignment of transmit and receive ends for BX-D operation. Confirm link status in the host device management interface and, if available, verify digital diagnostic information through the DDM/DOM interface to monitor optical parameters such as supply voltage, laser bias current, output power, received power and temperature.

Recommendations

Use certified single-mode LC patch cords and verify that the host hardware supports DDM/DOM if remote diagnostics are required. For longest service life, install modules in equipment with appropriate ventilation and avoid excessive mechanical stress to the optical connectors and module housing.
