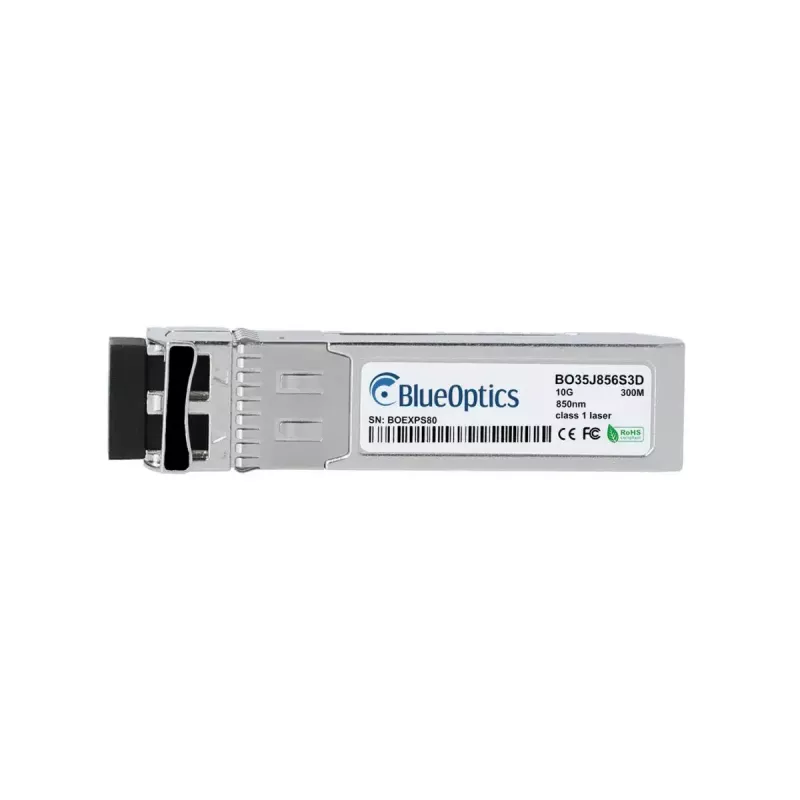

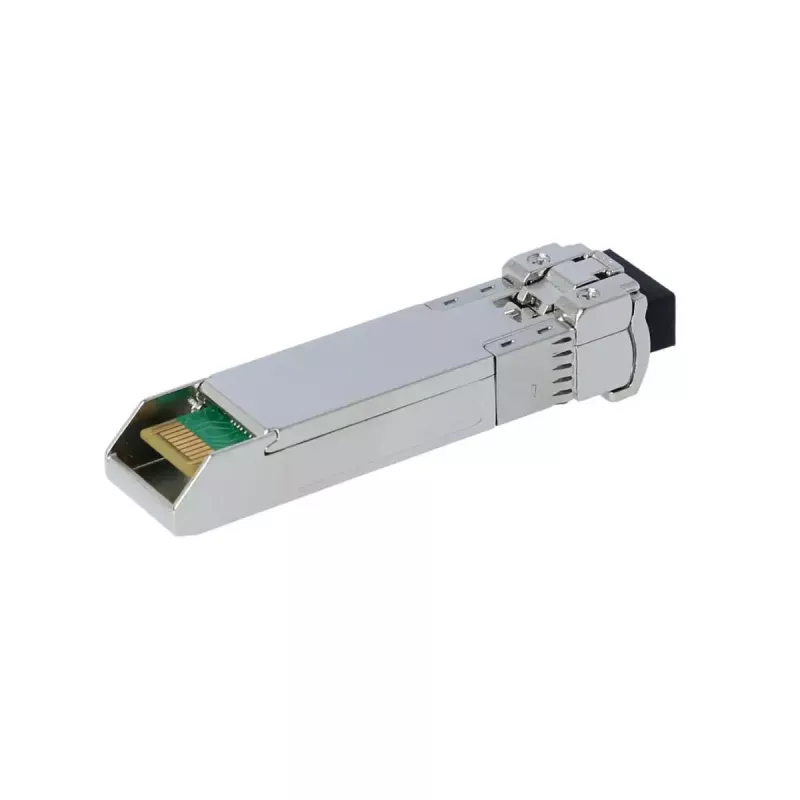

SFP+-transceivermodule BlueOptics 57-1000114-01-BO 300 m aluminium

The BlueOptics 57-1000114-01-BO SFP+ transceiver module is a 10GBASE-SR compatible optical module designed for short-range multimode fiber links up to 300 meters. Housed in an aluminium casing and weighing approximately 20 g, this single-pack module uses an LC duplex connector and operates at an 850 nm wavelength for both transmitter and receiver. The module follows MSA standards and supports standard 10 Gbps Ethernet and related high-speed protocols when used in hardware that accepts SFP+ 10GBASE-SR modules.

Advantages

The aluminium housing provides mechanical stability and thermal dissipation while keeping the module lightweight. Compliance with MSA standards and use of proven optical components enables high compatibility with major networking platforms that support 10GBASE-SR SFP+ modules. The module supports digital diagnostics (DDM/DOM) for remote monitoring of voltage, temperature, laser bias current and optical power, which simplifies maintenance and troubleshooting of fiber links.

Suitable for

• 10 Gbps Ethernet links over multimode fiber within data centers and campus networks
• Interconnections between switches, routers and storage systems up to 300 m
• Fibre Channel over Ethernet (FCoE) and SDH/SONET high-speed applications

Key specifications

• Form factor: SFP+ (10GBASE-SR compatible)
• Maximum reach: up to 300 meters over multimode fiber
• Wavelength: 850 nm (transmitter and receiver)

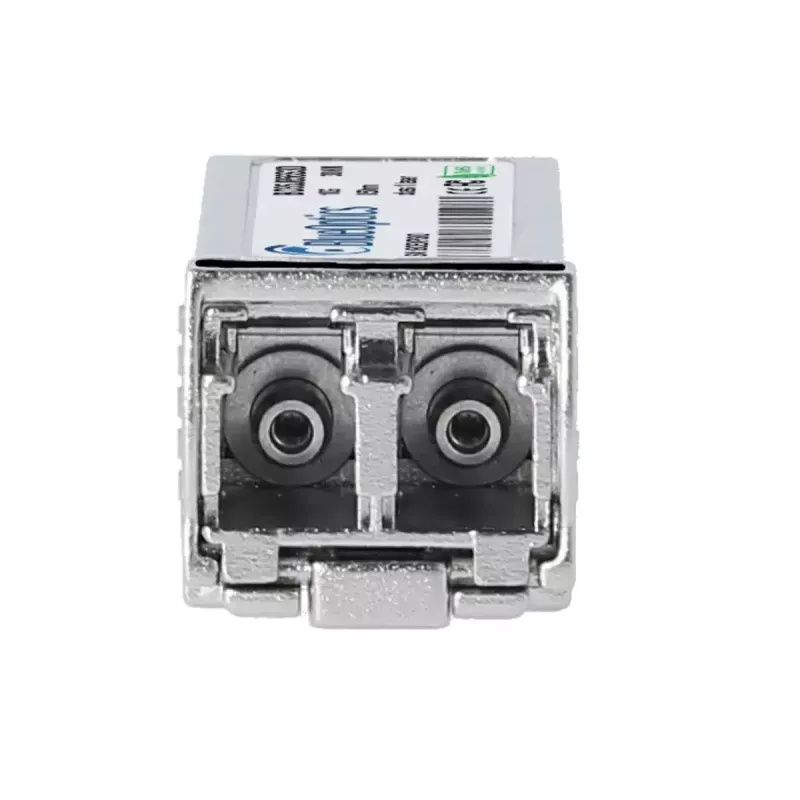

• Connector: LC duplex
• Supported data rate: 10 Gbps
• Housing material: aluminium
• Weight: approximately 0.02 kg
• Digital Diagnostics: DDM/DOM (MSA SFF-8472 compliant)

How to use

Install the BlueOptics SFP+ module into an SFP+ slot on compatible network equipment following the equipment manufacturer’s hot-plug procedures. Use an LC duplex multimode fiber patch cable to connect to the remote transceiver or patch panel, ensuring proper polarity and attenuation limits for the chosen fiber type. Verify link negotiation at 10 Gbps and, if required, enable or query the DDM/DOM interface through the host system to monitor operational parameters such as temperature and optical power.

Recommendations

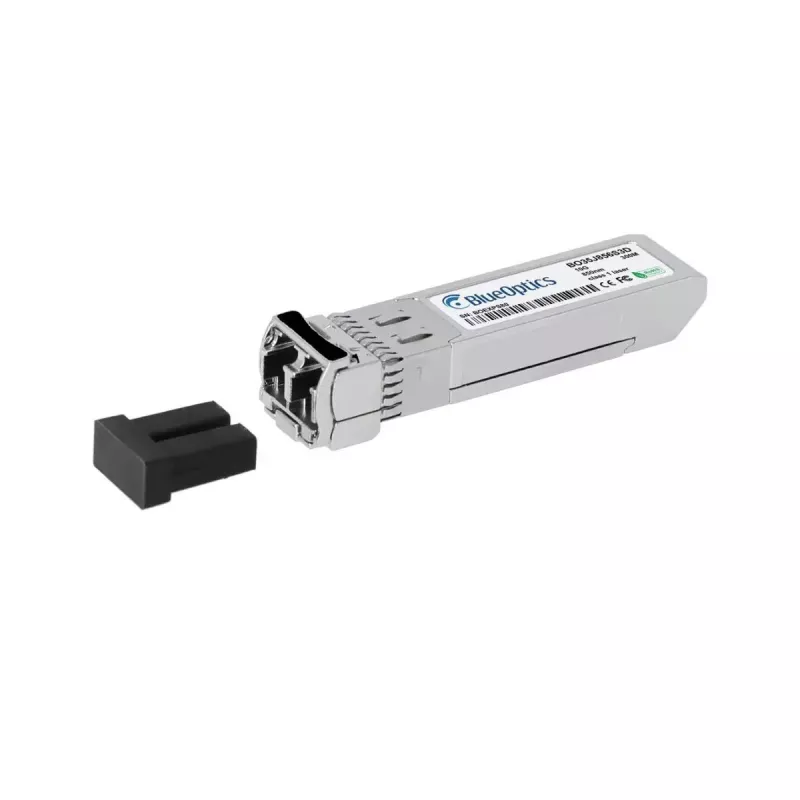

For optimal performance, pair the transceiver with multimode fiber and LC duplex patch cords that match the module’s specifications, keep connectors clean, and verify that the host hardware firmware supports third-party SFP+ modules and DDM/DOM features. Use appropriate ESD precautions when handling the module and store unused modules with protective caps to avoid dust ingress.
