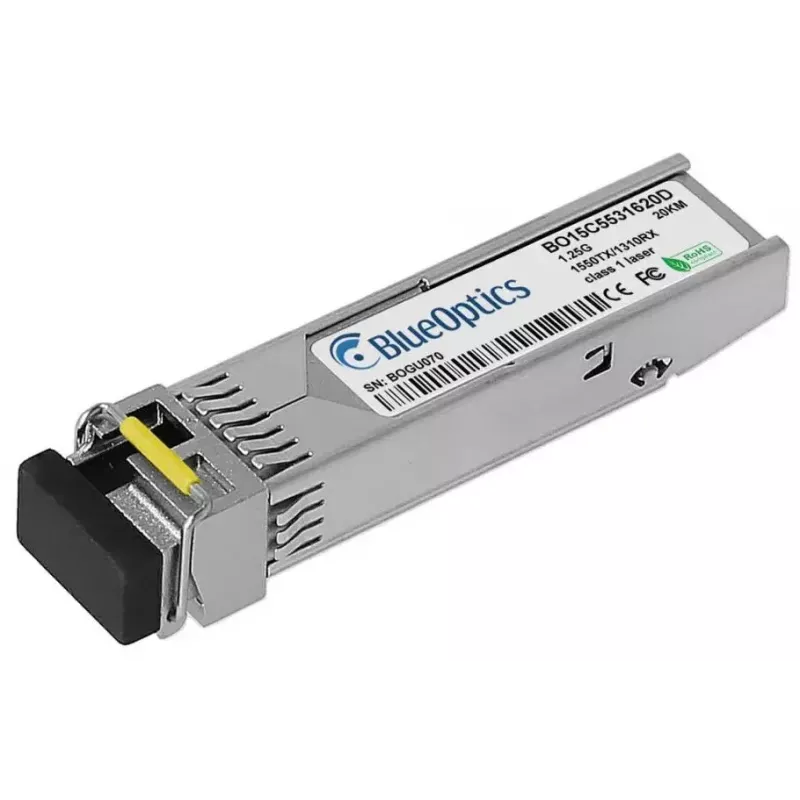

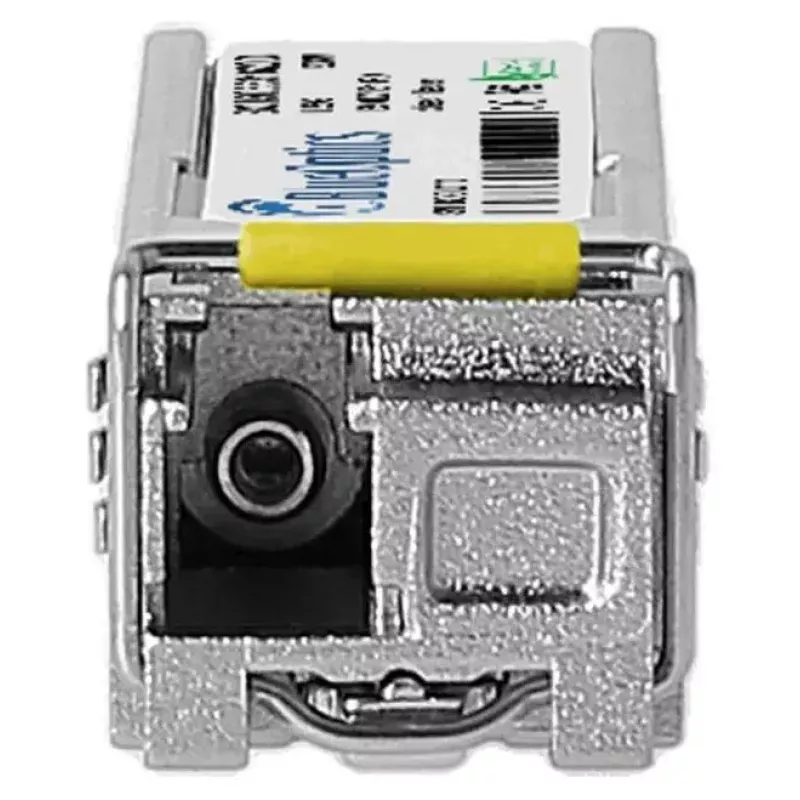

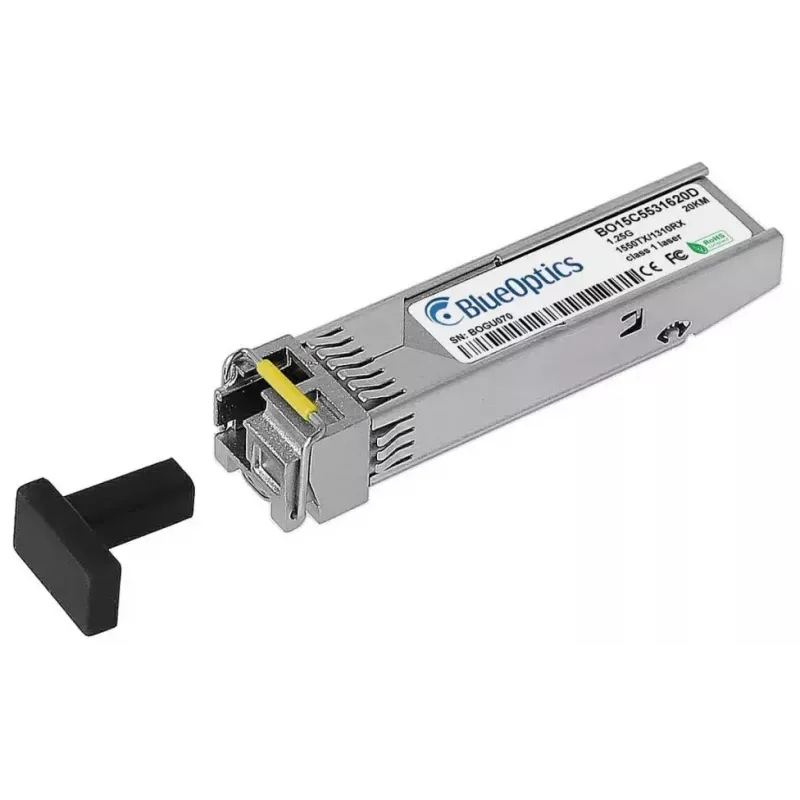

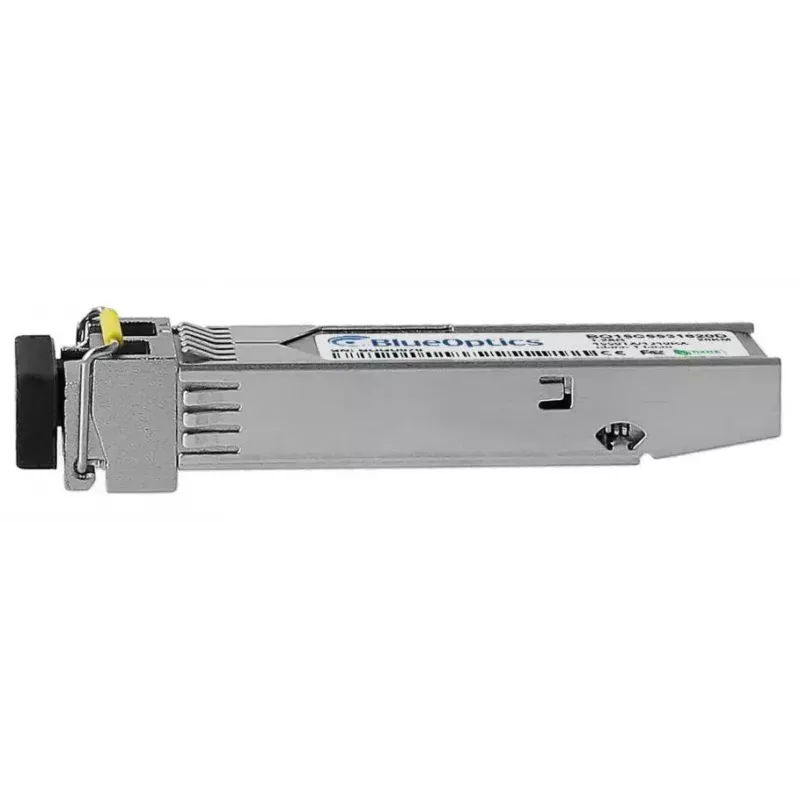

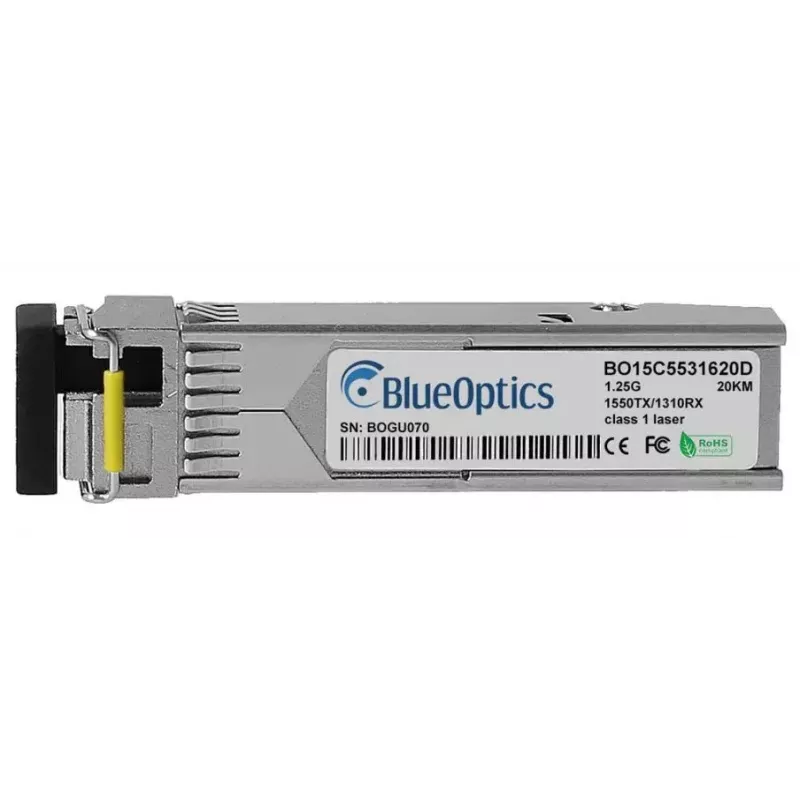

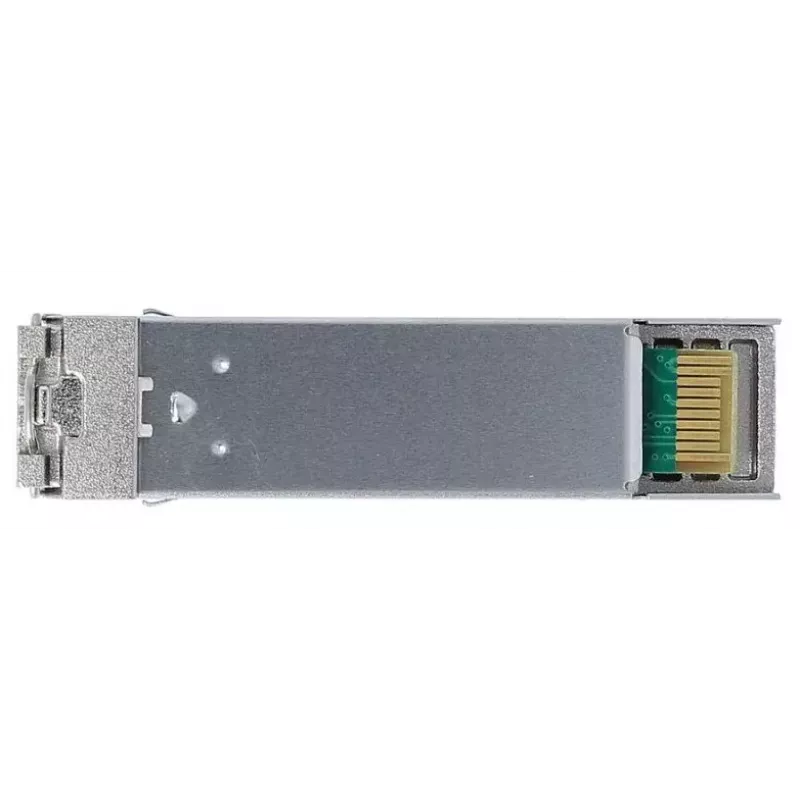

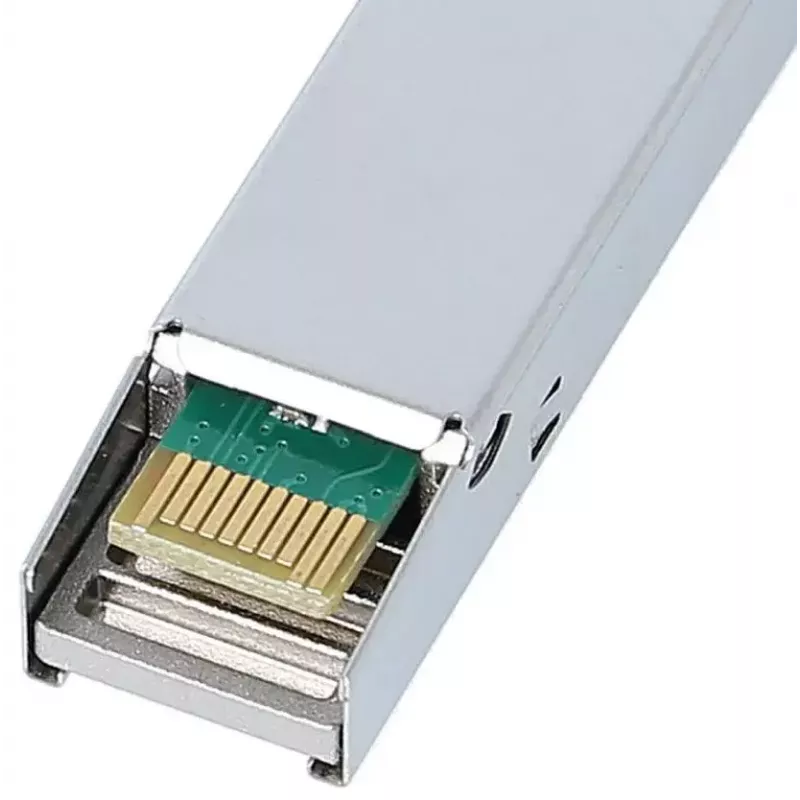

SFP-transceivermodule BlueOptics 942 207-002-BO 1250 Mbit/s glasvezel

The BlueOptics 942 207-002-BO SFP transceiver module is a compact fiber optic interface in SFP form factor designed for single-mode optical networks. Supporting a maximum data transfer rate of 1250 Mbit/s and an operating input voltage of 3.3 V, it provides a plug-in optical link with LC (UPC) connector and silver housing. With a maximum transmission distance up to 20,000 m and small physical dimensions (13.9 mm × 58.4 mm × 12.6 mm), the module is suitable for installation in compatible networking hardware that accepts SFP modules.

Advantages

The module combines a small SFP form factor with a single-mode LC connector, enabling long-distance optical links while occupying minimal slot space. Its stated maximum data rate of 1250 Mbit/s supports gigabit-class applications and the low weight simplifies handling and installation. Compliance with common SFP mechanical and electrical dimensions ensures broad compatibility with Hirschmann and other devices that accept standard SFP transceivers.

Suitable for

• Single-mode fiber uplinks between switches and routers
• Long-distance point-to-point fiber connections up to 20 km
• Network equipment requiring SFP form-factor transceivers

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: 20,000 m
• Connector type: LC (UPC) simplex
• Operating voltage: 3.3 V
• Color/finish: Silver
• Dimensions (W × D × H): 13.9 mm × 58.4 mm × 12.6 mm
• Weight: 0.02 kg

How to use

Insert the SFP transceiver into an available SFP slot of a compatible switch, router or media converter while the host device is powered down or according to the host manufacturer's hot-swap guidance. Connect a single-mode fiber patch cable with LC (UPC) connectors to the module's LC port. Ensure that transmit and receive fibers are correctly routed and that the host device recognizes the module. Configure link parameters on the host device if required by the network setup.

Recommendations

Use single-mode fiber cabling rated for the required distance and ensure connectors and patch cords are clean to maintain optimal optical performance. Verify compatibility with the host device and enable any digital diagnostic functions supported by the hardware for remote monitoring if available.
