SFP-transceivermodule BlueOptics SFP-1000-MM13-02-BO 1250 Mbit/s 1310 nm

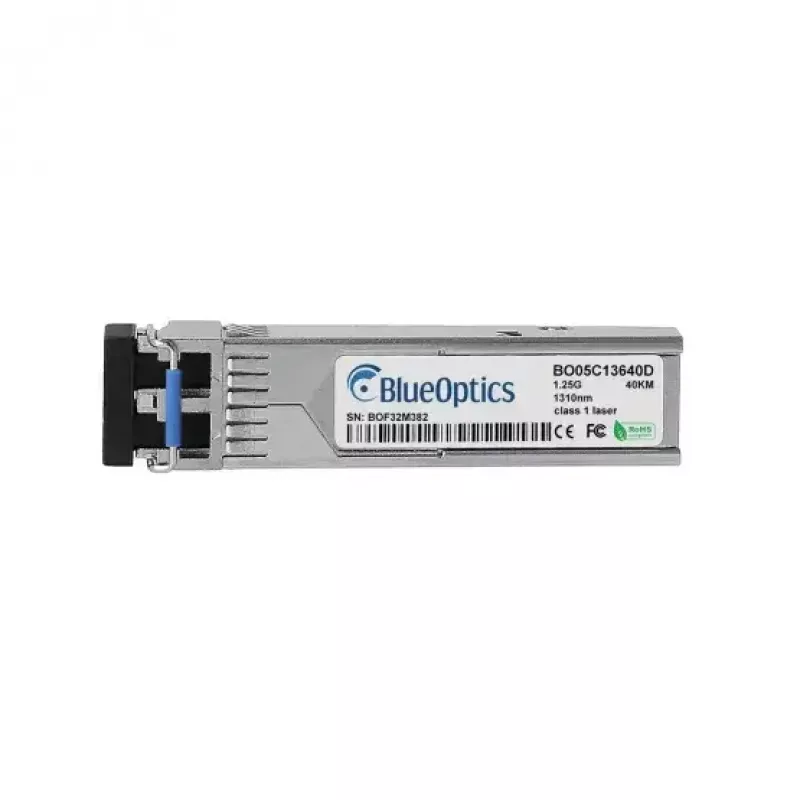

The BlueOptics SFP-1000-MM13-02-BO is a small form-factor fiber optic transceiver module designed for 1.25 Gbit/s (1250 Mbit/s) Ethernet links. It operates at a wavelength of 1310 nm, uses an SFP fiber connector and requires a 3.3 V supply. The module is intended for point-to-point optical connections over multimode fiber with a stated maximum reach of up to 2000 m and is supplied in a compact, silver-coloured metal housing weighing approximately 40 g.

Advantages

This BlueOptics SFP module follows MSA-compatible SFP form-factor conventions to ensure interoperability with standard SFP ports. It supports industry-standard optical transmission at 1310 nm and provides a straightforward hot-pluggable solution for upgrading or extending existing network equipment. The compact silver metal housing offers physical robustness while the transceiver’s specifications accommodate common short- and medium-range fiber applications.

Suitable for

Key specifications

How to use

Install the transceiver by inserting the SFP module into a compatible SFP port on the host device until it clicks into place; follow the host equipment manufacturer’s hot-swap guidance. Connect an appropriate LC duplex patch cable or multimode fiber link to the optical port, observing correct transmit/receive orientation. Power is supplied by the host device at 3.3 V; no external power connection is required. After installation, verify link status through the host device management interface and run any required link diagnostic or channel tests.

Recommendations

Use multimode fiber and appropriate LC duplex patch cords rated for 1310 nm and the target distance to achieve the specified maximum transfer distance. Ensure the host device firmware supports third-party SFP modules and, if available, enable Digital Diagnostics / DDM only when supported by both transceiver and host. Handle the transceiver by its housing, avoid touching the optical interface, and replace protective caps only when ready to connect to prevent contamination.
