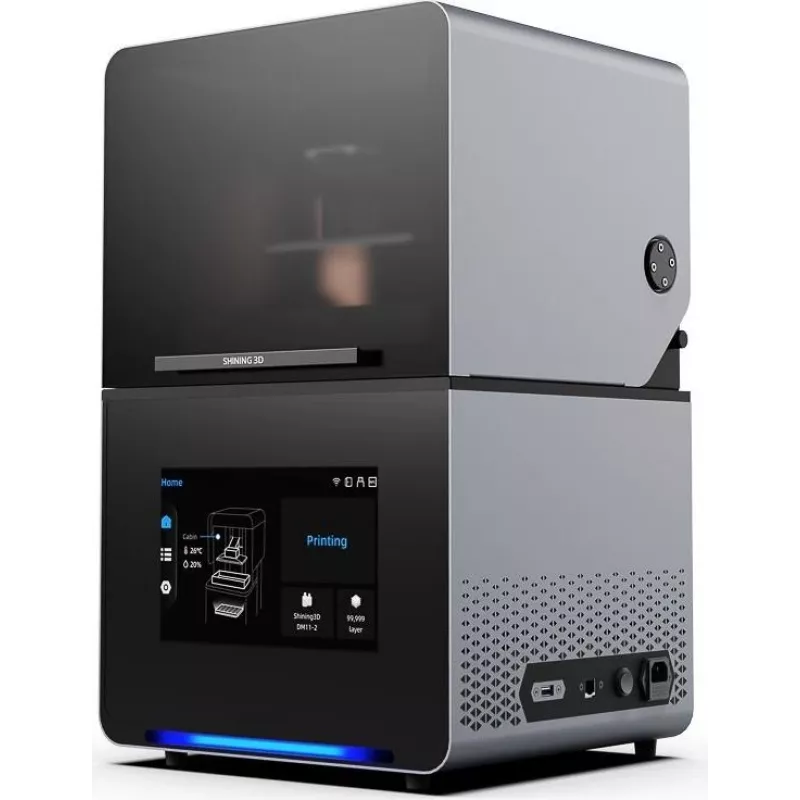

SHINING 3D AccuFab-F1 DLP 3D-printer (C010350)

The SHINING 3D AccuFab-F1 is a professional DLP 3D printer designed for high-precision applications in dental, jewelry, and industrial prototyping. Featuring a 405nm UV LED light source and a build volume of 192 x 120 x 180 mm, it delivers exceptional detail with XY resolution of 50 µm and selectable Z-axis layer thickness (25/50/100 µm). The printer supports Shining 3D AccuFab resins and offers intelligent features such as an auto-calibration system, material recognition, and an integrated air purification system. With a maximum print speed of up to 50 mm/h and connectivity options including USB, Ethernet, and Wi-Fi, the AccuFab-F1 is a versatile and reliable solution for professional 3D printing.

Advantages

High precision DLP technology ensures smooth surfaces and fine details. Intelligent heating system and auto-calibration guarantee consistent print quality. Quick-release build plate and material recognition simplify workflow. Integrated air filtration reduces odors and particulates for a safer workspace.

Suitable for

• Dental labs for crowns, bridges, models, and surgical guides
• Jewelry design and casting patterns
• Industrial prototyping and small-batch production
• Educational and research institutions

Key specifications

• Printing Technology: DLP (Digital Light Processing)
• Light Source: 405nm UV LED
• Build Volume: 192 x 120 x 180 mm
• XY Resolution: 50 µm
• Z-axis Layer Thickness: 25 / 50 / 100 µm (Selectable)
• Maximum Print Speed: Up to 50 mm/h
• Supported Materials: Shining 3D AccuFab Resins (Dental, Jewelry, Industrial)
• Connectivity: USB, Ethernet, Wi-Fi
• Software: AccuWare
• Display: 5-inch Color Touchscreen
• Power Supply: AC 100-240V, 50/60Hz
• Operating Temperature: 10°C to 30°C
• Data Input Format: STL, OBJ, 3MF
• Machine Dimensions: 360 x 360 x 530 mm
• Weight: 19 kg
• Resin Tank Lifespan: Up to 50,000 layers
• Build Plate: Quick-release, self-developed
• Air Filtration: Integrated Air Purification System

Recommendations

For optimal results, use genuine Shining 3D AccuFab resins and follow the recommended post-processing procedures. Ensure the printer is placed on a stable, level surface in a well-ventilated area. Regularly clean the resin tank and build plate to maintain print quality.
