SHIVERPEAKS BASIC-S SAT-coaxkabel 0,9/4,6, drievoudig afgeschermd, CCS, kunststofspoel, 110 dB, 100 m (BS81900-16)

For satellite and cable TV installations where signal integrity over long runs is non-negotiable, the SHIVERPEAKS BASIC-S SAT coaxial cable stands out with its triple shielding and 110 dB screening effectiveness. The 0.9 mm copper-clad steel inner conductor and 4.6 mm foam polyethylene dielectric are engineered to maintain a stable 75 Ohm impedance across the entire 100 m length, reducing signal loss and interference even in dense RF environments.

Highlights

• Triple shielding: two aluminum foil layers plus one copper braid for superior noise rejection
• 110 dB shielding effectiveness ensures clean signal transfer for DVB-S/S2, DVB-T/T2, and DVB-C
• Copper-clad steel (CCS) inner conductor provides excellent tensile strength and corrosion resistance
• Foamed polyethylene dielectric minimizes attenuation and supports high-frequency performance

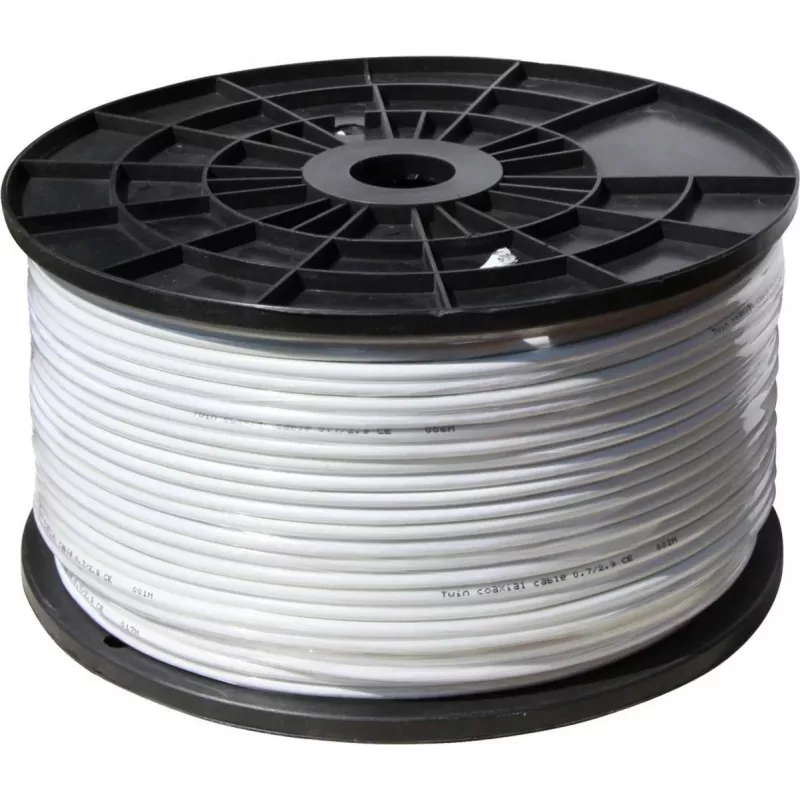

• Supplied on a practical plastic spool for easy handling and tangle-free deployment

In daily use

Installers will appreciate the robust PVC jacket that withstands pulling through conduits and outdoor exposure. The cable's 0.9/4.6 mm dimensions are compatible with standard F-type compression connectors, and the 100 m spool allows for custom-length runs without mid-span splices. Whether wiring a multi-dwelling unit or a single-family home, the consistent impedance and shielding reduce pixelation and dropouts, ensuring reliable reception for high-definition and 4K broadcasts.

Full specifications

• Cable type: Coaxial
• Length: 100 m
• Impedance: 75 Ohm
• Shielding: Triple (2x foil, 1x braid)
• Shielding effectiveness: 110 dB
• Inner conductor: Copper Clad Steel (CCS), 0.9 mm diameter
• Dielectric: Foamed Polyethylene (PE), 4.6 mm diameter
• Jacket material: PVC
• Packaging: Plastic spool
• Connector 1: No connector
• Connector 2: No connector

Final note

With its robust construction and high shielding performance, the SHIVERPEAKS BASIC-S SAT cable is a reliable choice for professional installers seeking consistent signal quality over long distances.
